Planet BM-525 [105/205] Restrict the internal users to send message files video and audio by instant restrict the internal users to send message files video and audio by instant messaging

BM-525 Bandwidth Management Gateway User’s Manual

- 100 -

4.15 IM

Restrict the Internal Users to send message, files, video and audio by Instant

Messaging

STEP 1﹒Enter as following in IM Blocking of Content Blocking function:

 Select MSN Messenger, Yahoo Messenger, ICQ Messenger, QQ Messenger, and

Skype.



Click OK

 Complete the setting of IM Blocking.

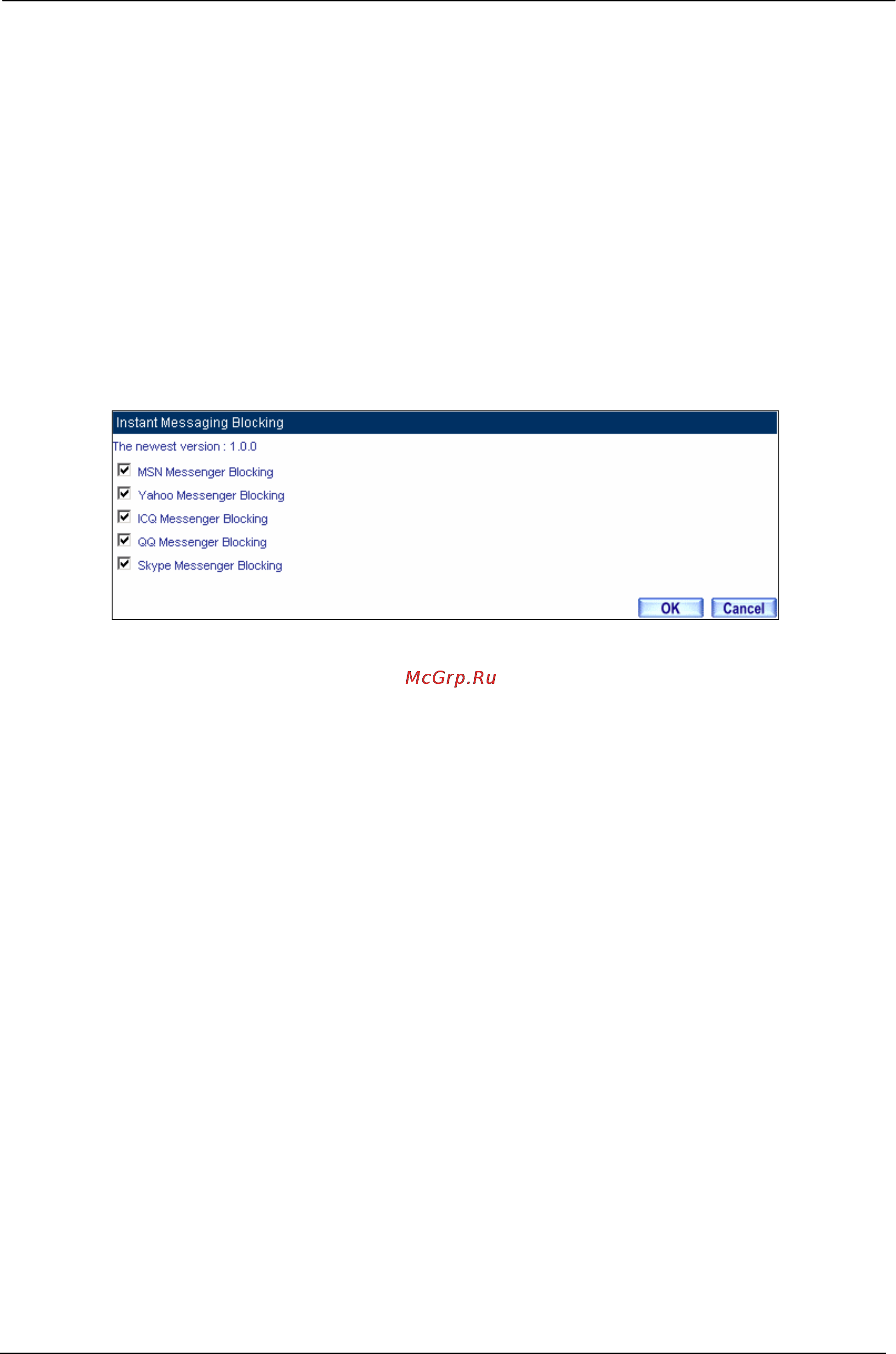

IM Blocking Web UI
