BM-525 Bandwidth Management Gateway User’s Manual

- 101 -

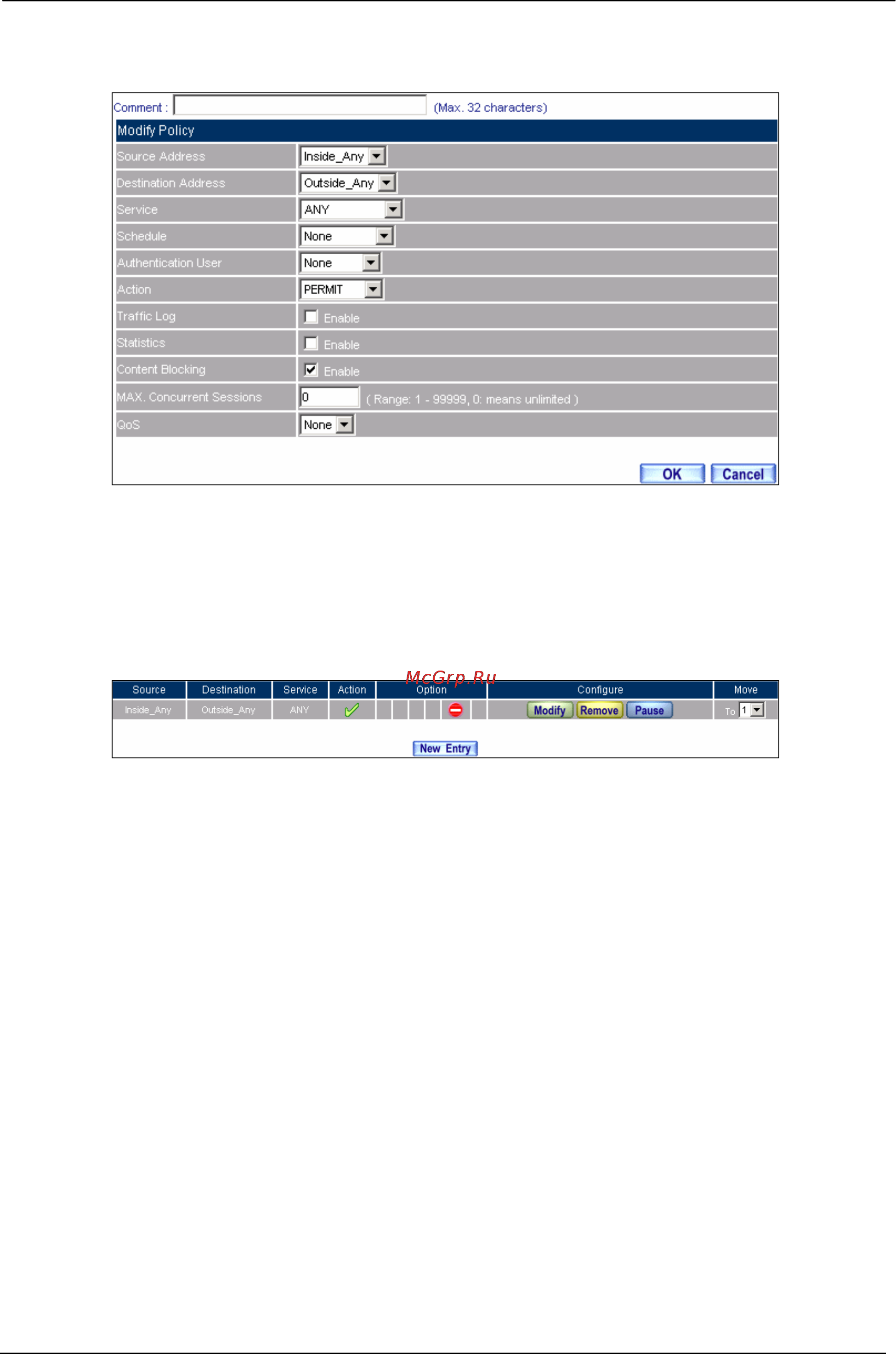

STEP 2﹒Add a new Outgoing Policy and use in Content Blocking function.

Add New Policy of IM Blocking

STEP 3﹒Complete the policy of restricting the internal users to send message, files, audio, and

video by instant messaging in Outgoing Policy.

Complete IM Blocking Policy Setting
