BM-525 Bandwidth Management Gateway User’s Manual

- 67 -

4.5 Group

Setting service group and restrict the specific users only can access to service

resource that provided by this group through policy (Group: HTTP, POP3,

SMTP, DNS)

STEP 1﹒Enter the following setting in Group of Service:

 Click New Entry

 Name: Enter Main_Service

 Select HTTP, POP3, SMTP, DNS in Available Service and click Add

 Click OK

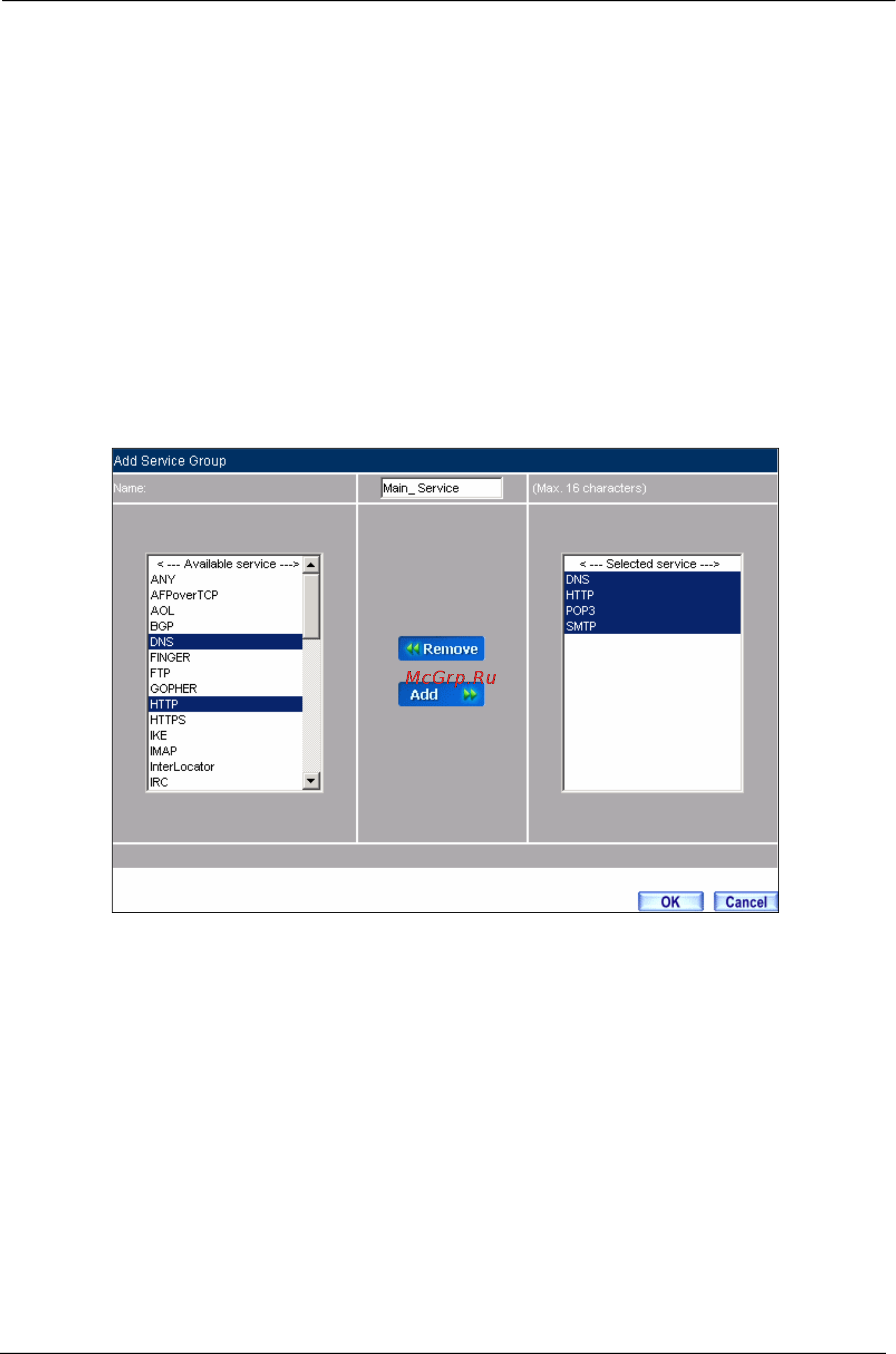

Add Service Group
