BM-525 Bandwidth Management Gateway User’s Manual

- 98 -

4.14 P2P

Restrict the Internal Users to access to the file on Internet by P2P

STEP 1﹒Select the following data in P2P of Content Blocking function:

 Select eDonkey Blocking

 Select BitTorrent Blocking

 Select WinMX Blocking

 Click OK

 Complete the setting of P2P Blocking

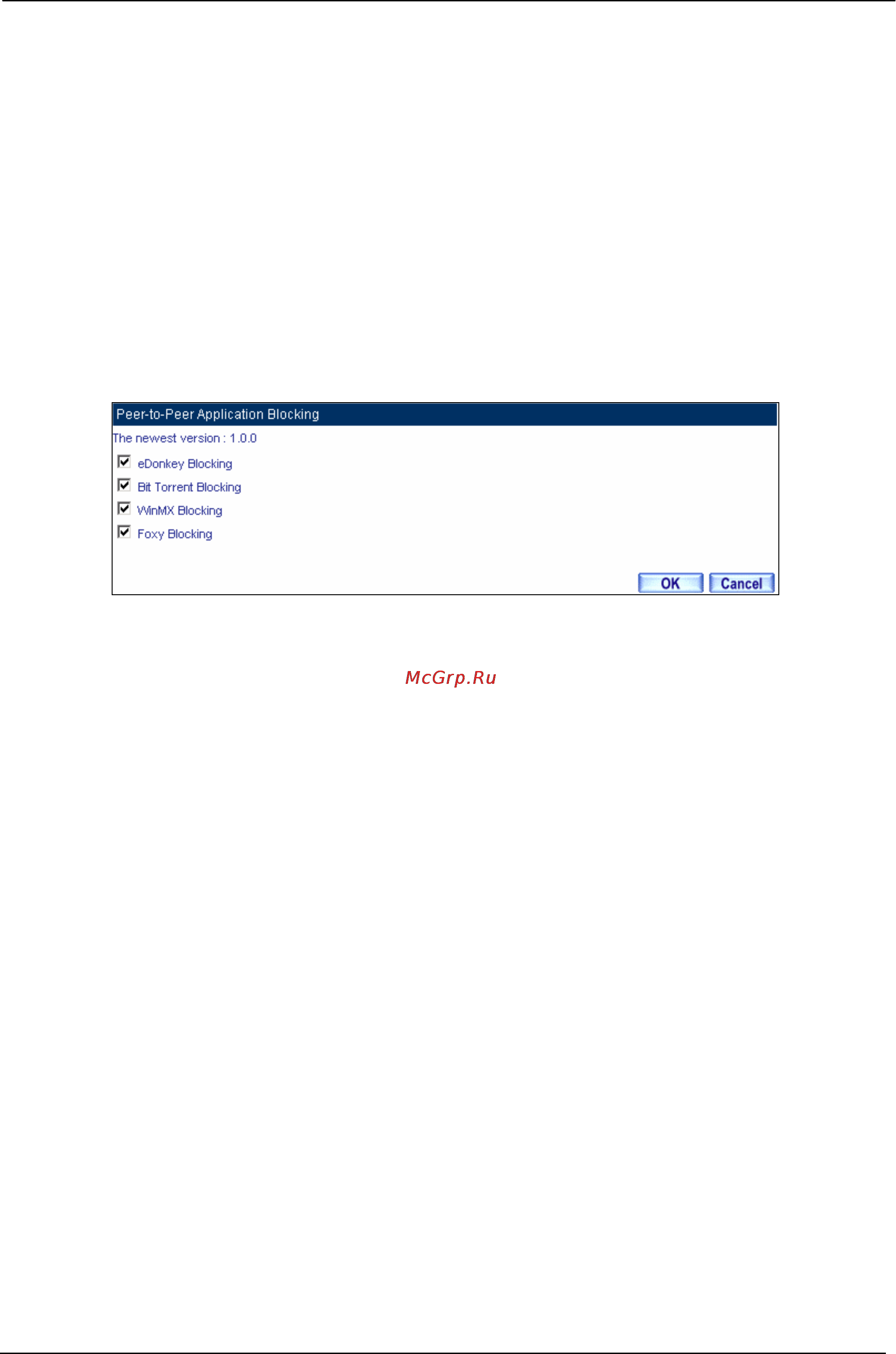

P2P Blocking Web UI
