BM-525 Bandwidth Management Gateway User’s Manual

- 9 -

2.4 Logout

STEP 1﹒Click Logout in System to protect the system while Administrator is away.

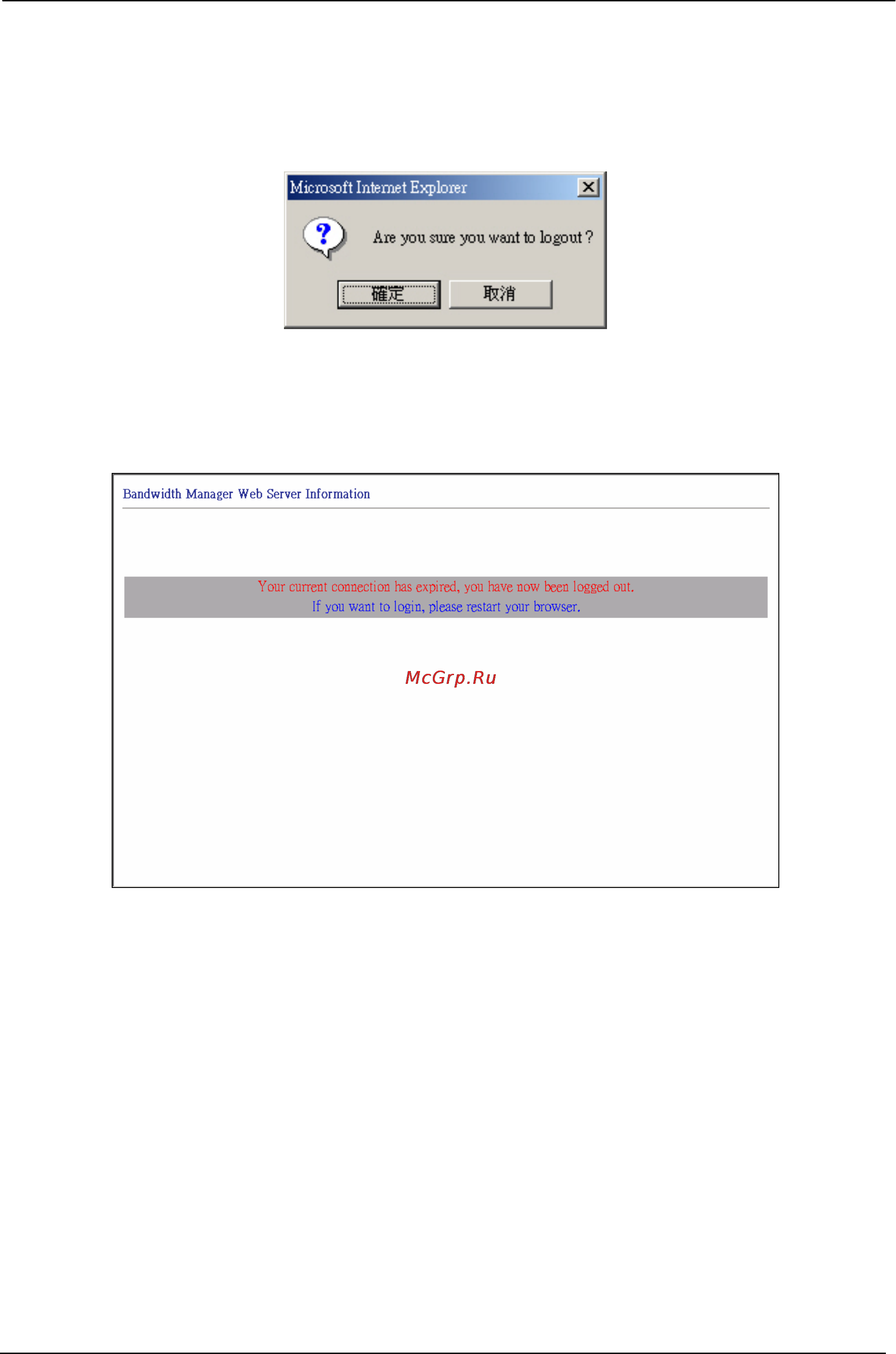

Confirm Logout Web UI

STEP 2﹒Click OK and the logout message will appear in Web UI.

Logout Web UI Message
