Planet BM-525 [68/205] Custom allow external user to communicate with internal user by voip through policy voip port tcp 1720 tcp 15328 15333 udp 15328 15333

BM-525 Bandwidth Management Gateway User’s Manual

- 63 -

4.4 Custom

Allow external user to communicate with internal user by VoIP through policy.

(VoIP Port: TCP 1720, TCP 15328-15333, UDP 15328-15333)

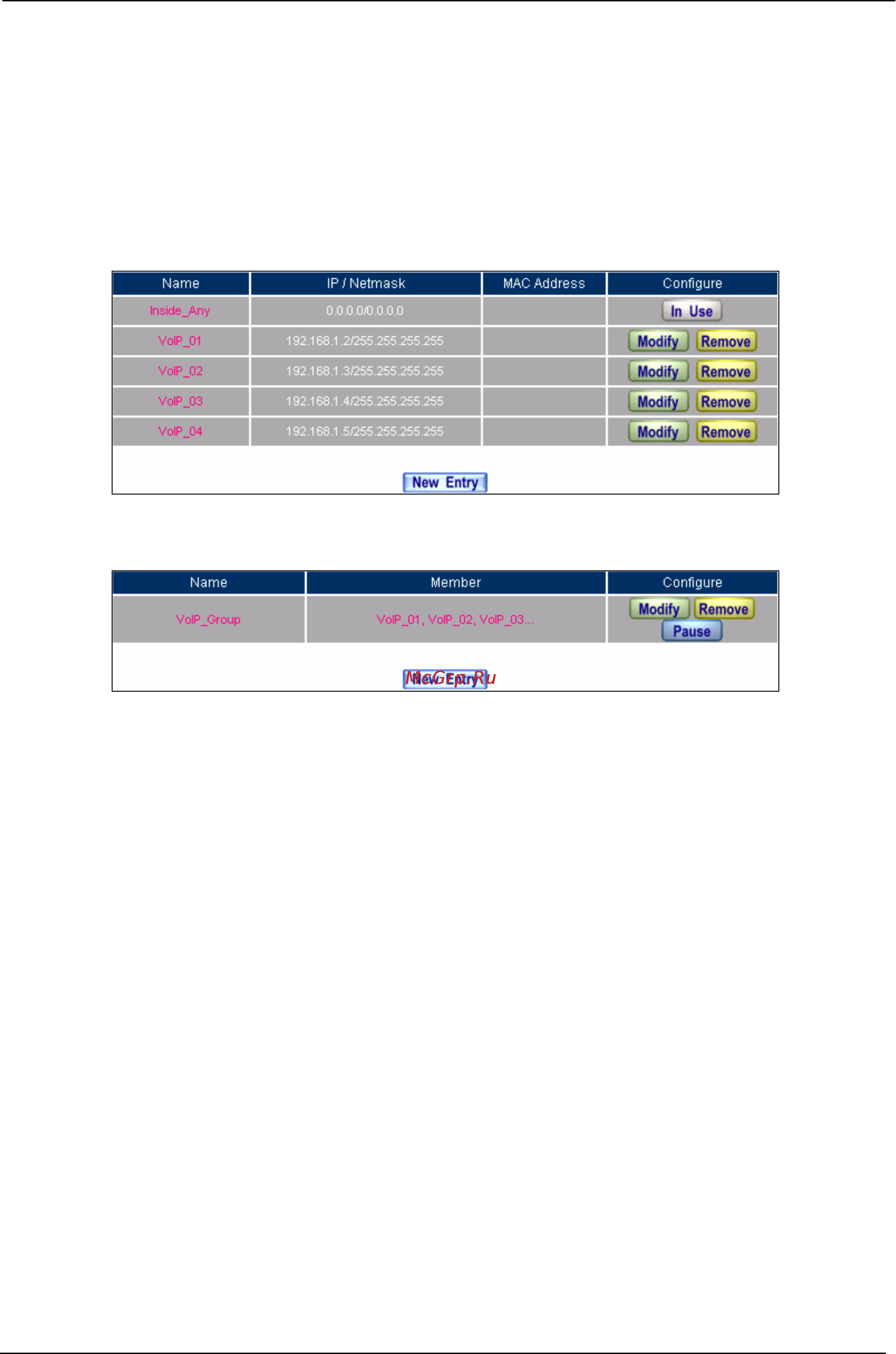

STEP 1﹒Set LAN and LAN Group in Address function as follows:

Setting LAN Address Book Web UI

Setting LAN Group Address Book Web UI
