Planet BM-525 [143/205] The external user control the internal pc through remote control software take pc anywhere for example

BM-525 Bandwidth Management Gateway User’s Manual

- 138 -

The external user control the internal PC through remote control software (Take

PC-Anywhere for example)

STEP 1﹒Set up a Internal PC controlled by external user, and Internal PC’s IP Address is

192.168.1.2

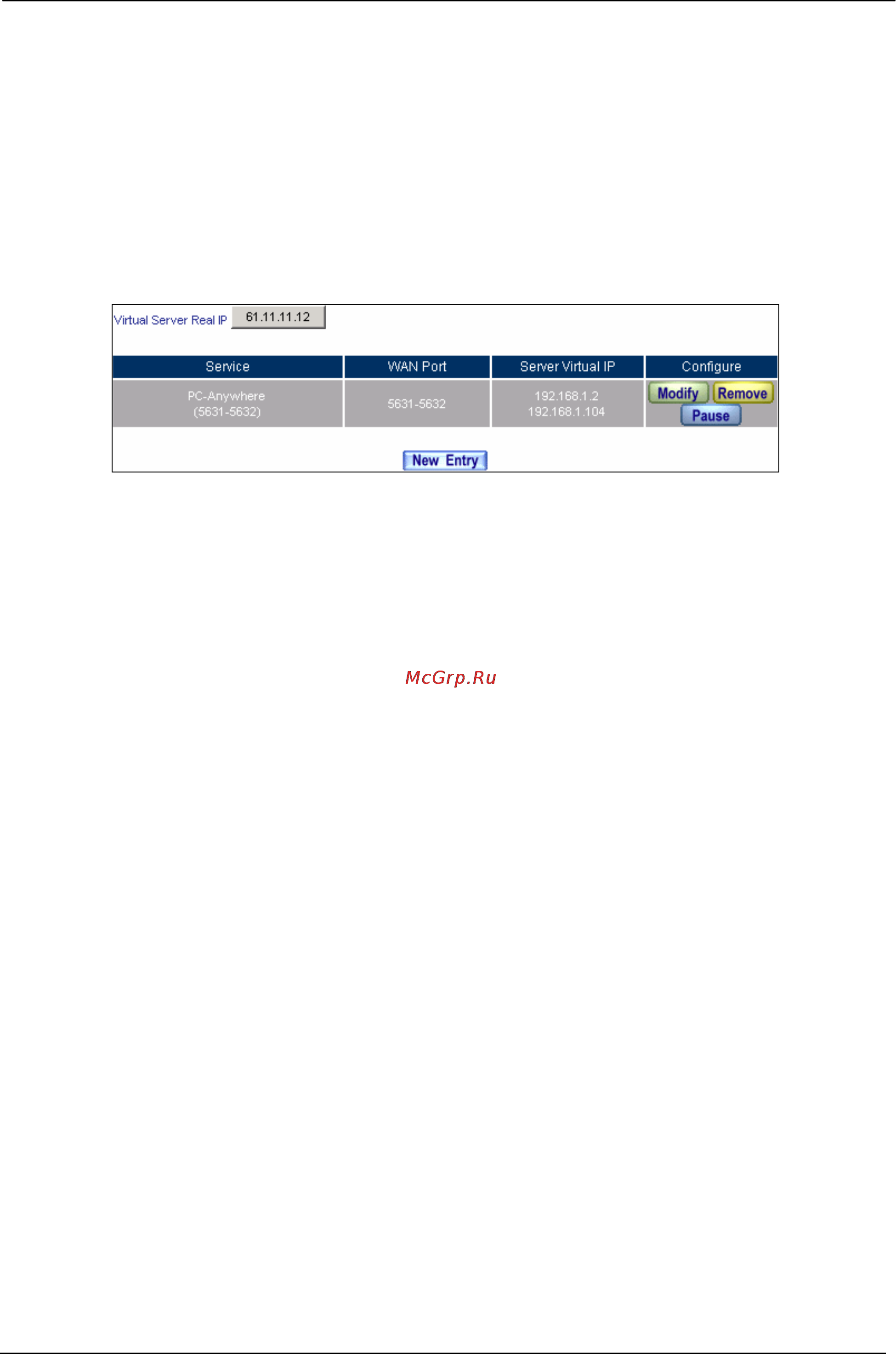

STEP 2﹒Enter the following setting in Virtual Server1 of Virtual Server function.

Setting Virtual Server
