BM-525 Bandwidth Management Gateway User’s Manual

- 19 -

Restoring Factory Default Settings

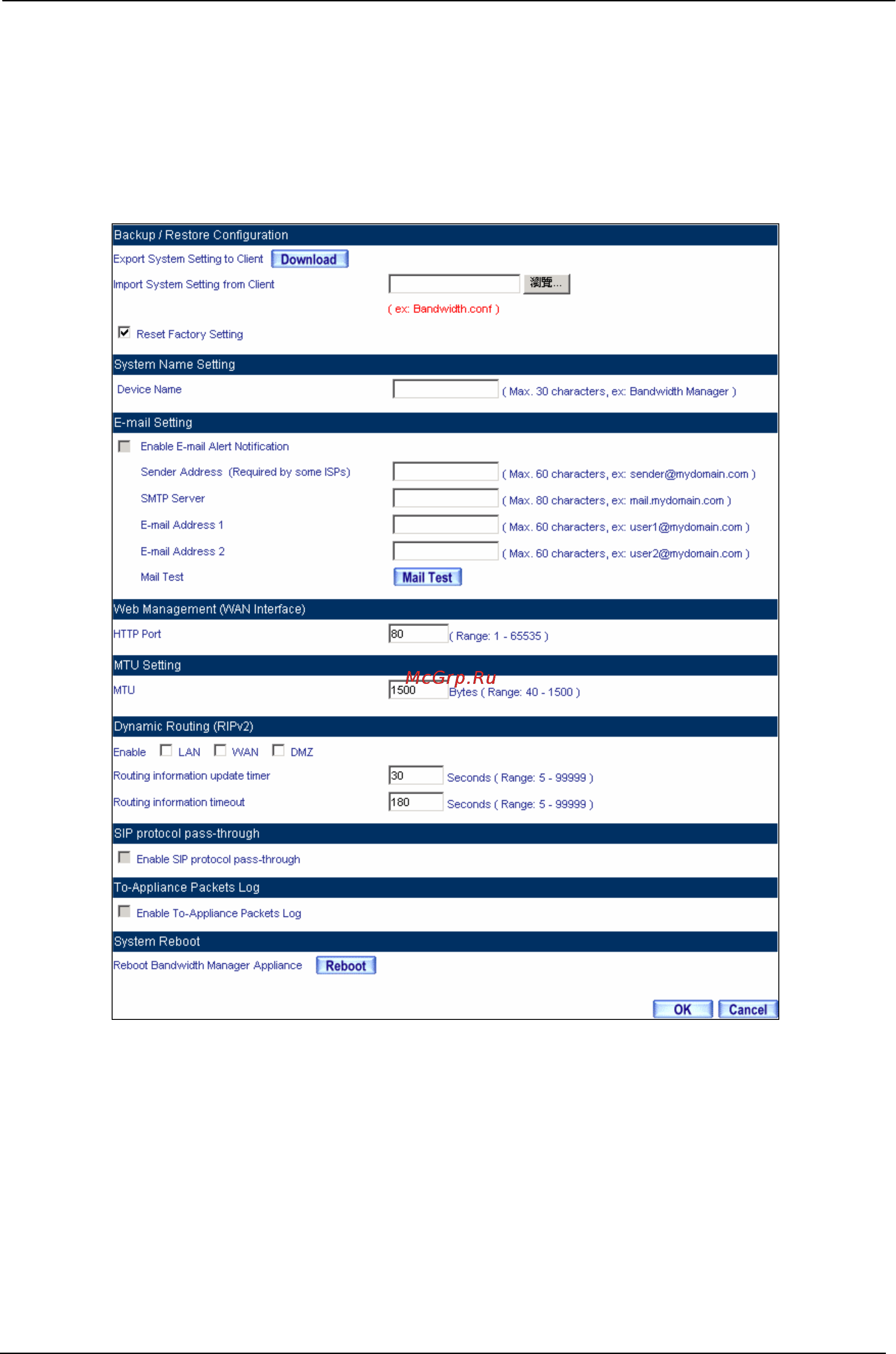

STEP 1﹒Select Reset Factory Settings in BM-525 Configuration Web UI

STEP 2﹒Click OK at the bottom-right of the page to restore the factory settings.

Reset Factory Settings

Enabling E-mail Alert Notification

STEP 1﹒Device Name: Enter the Device Name or use the default value.

STEP 2﹒Select Enable E-mail Alert Notification under E-Mail Settings.

STEP 3﹒Sender Address: Enter the Sender Address. (Required by some ISPs.)
