Planet BM-525 [76/205] To configure the valid time periods for lan users to access to internet in a day

BM-525 Bandwidth Management Gateway User’s Manual

- 71 -

To configure the valid time periods for LAN users to access to Internet in a day

STEP 1﹒Enter the following in Schedule:

 Click New Entry

 Enter Schedule Name

 Set up the working time of Schedule for each day

 Click OK

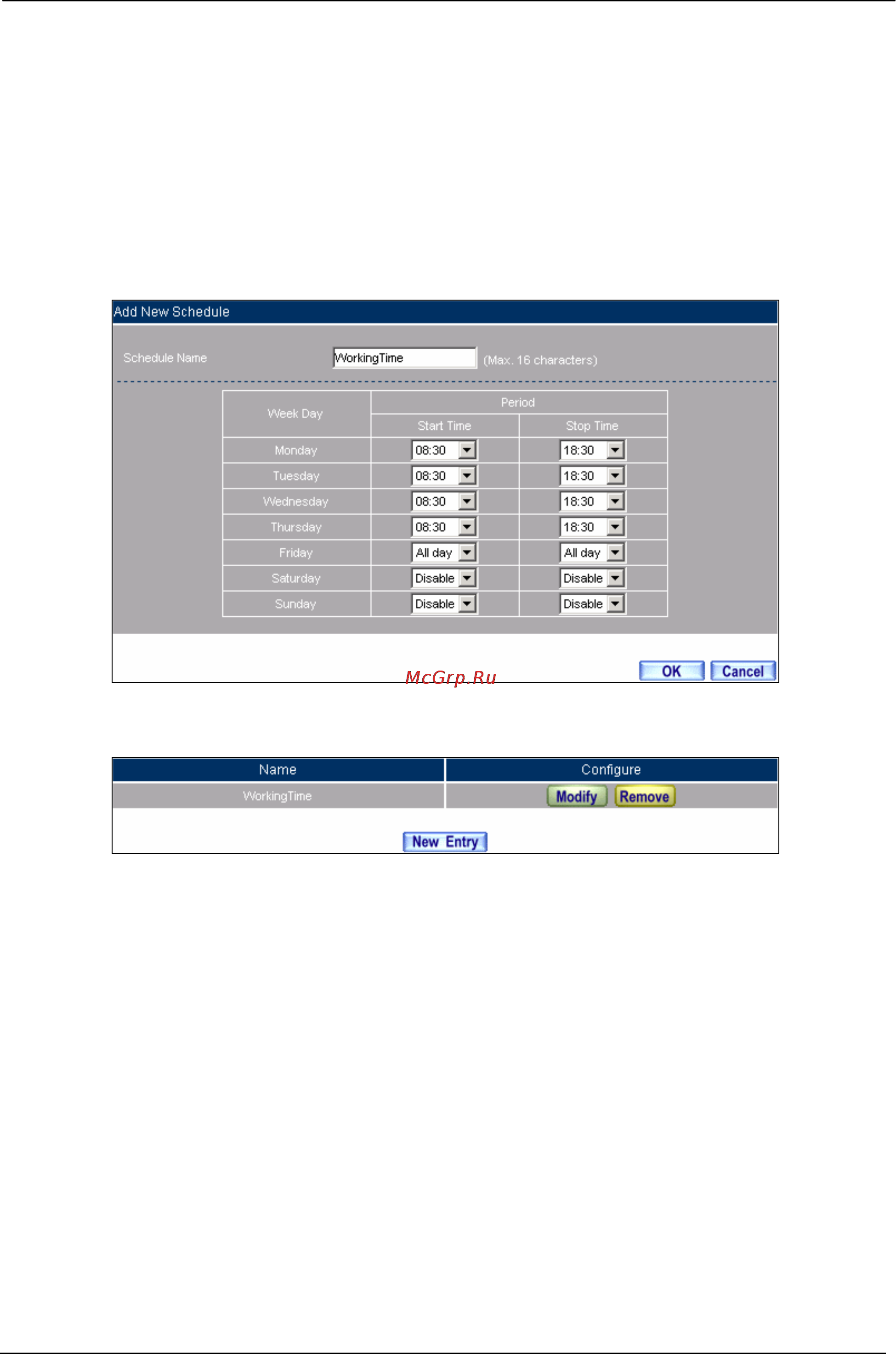

Setting Schedule Web UI

Complete the Setting of Schedule
