BM-525 Bandwidth Management Gateway User’s Manual

- 194 -

Remote monitor the internal PC

Step1. The internal PC to be remote monitored, and its MAC is 00:0C:76:B7:96:3B.

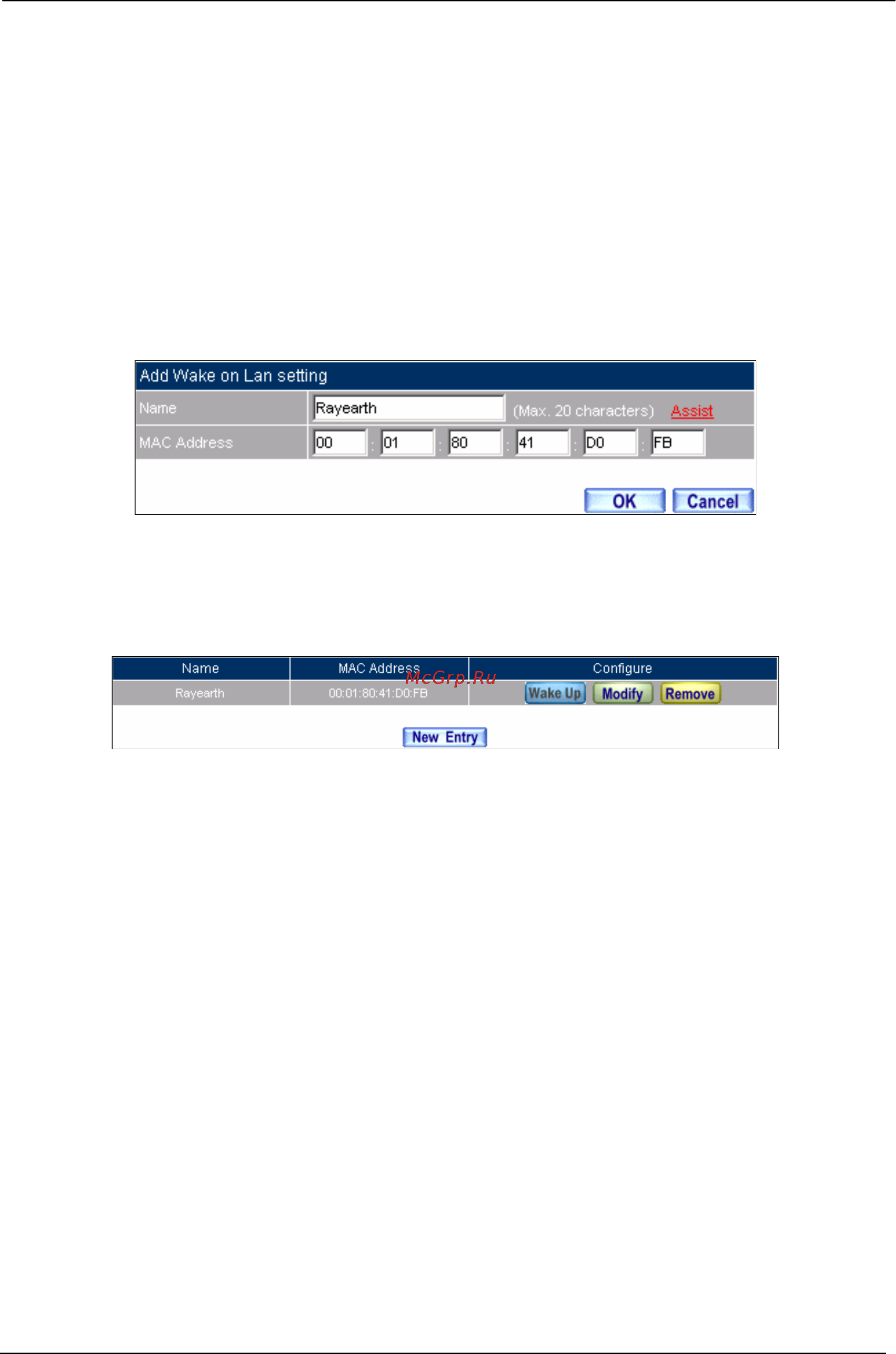

Step2. In Wake on LAN Æ Setting, add the following settings :

 Click New Entry.

 Name, enter Rayearth.

 MAC Address, enter 00:01:80:41:D0:FB.

 Click OK.

Set the internal PC to be monitored

Step3. Click Wake Up, to start up the internal PC.

Start up the PC
