BM-525 Bandwidth Management Gateway User’s Manual

- 165 -

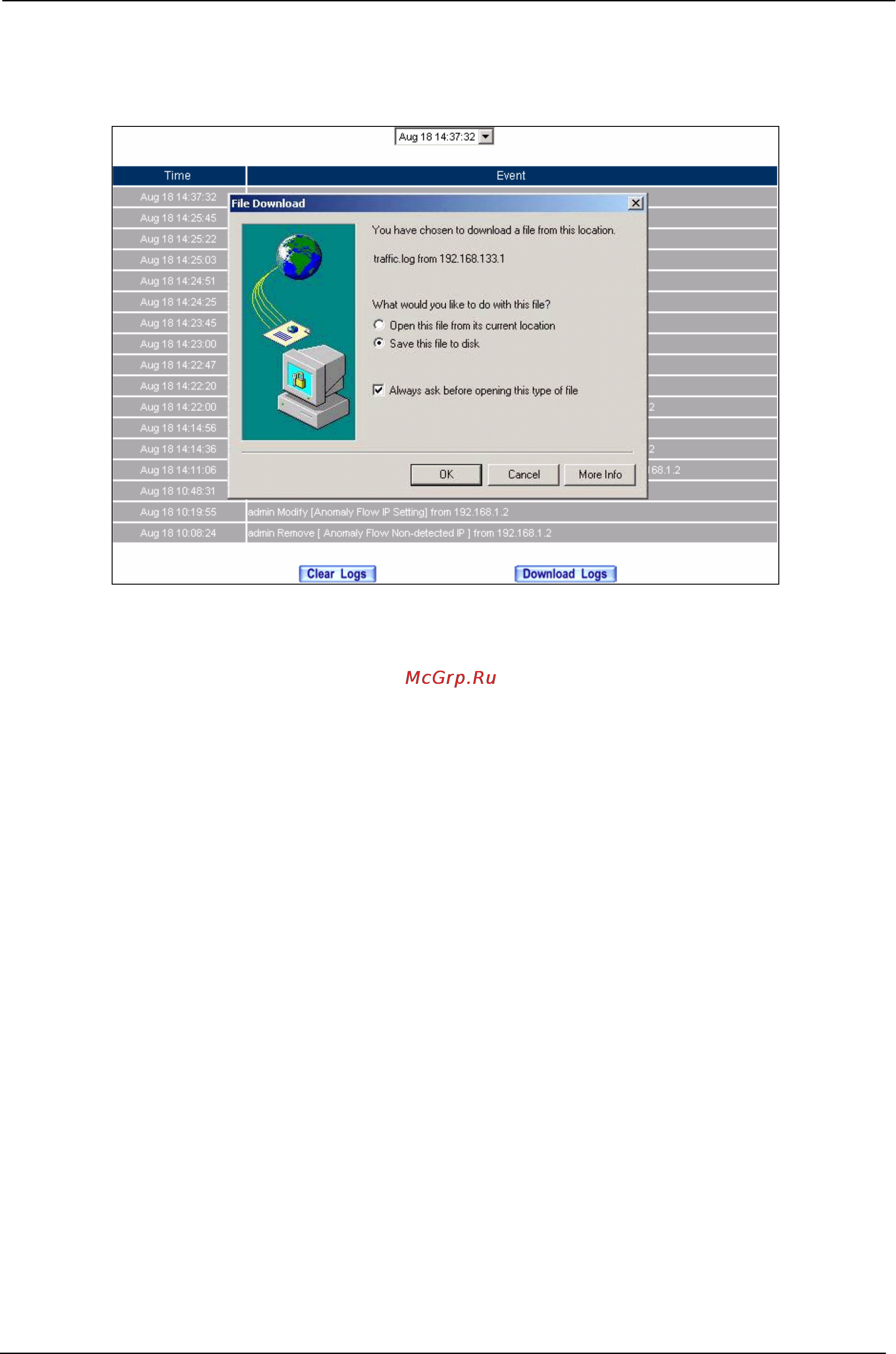

STEP 2﹒Click on Download Logs and select Save in File Download Web UI. Then choose the

place to save in PC and click OK. The records will be saved instantly.

Download Event Log Records Web UI
