BM-525 Bandwidth Management Gateway User’s Manual

- 57 -

STEP 2﹒ Enter the following settings in LAN Group of Address:

 Click New Entry

 Enter the Name of the group

 Select the users in the Available Address column and click Add

 Click OK

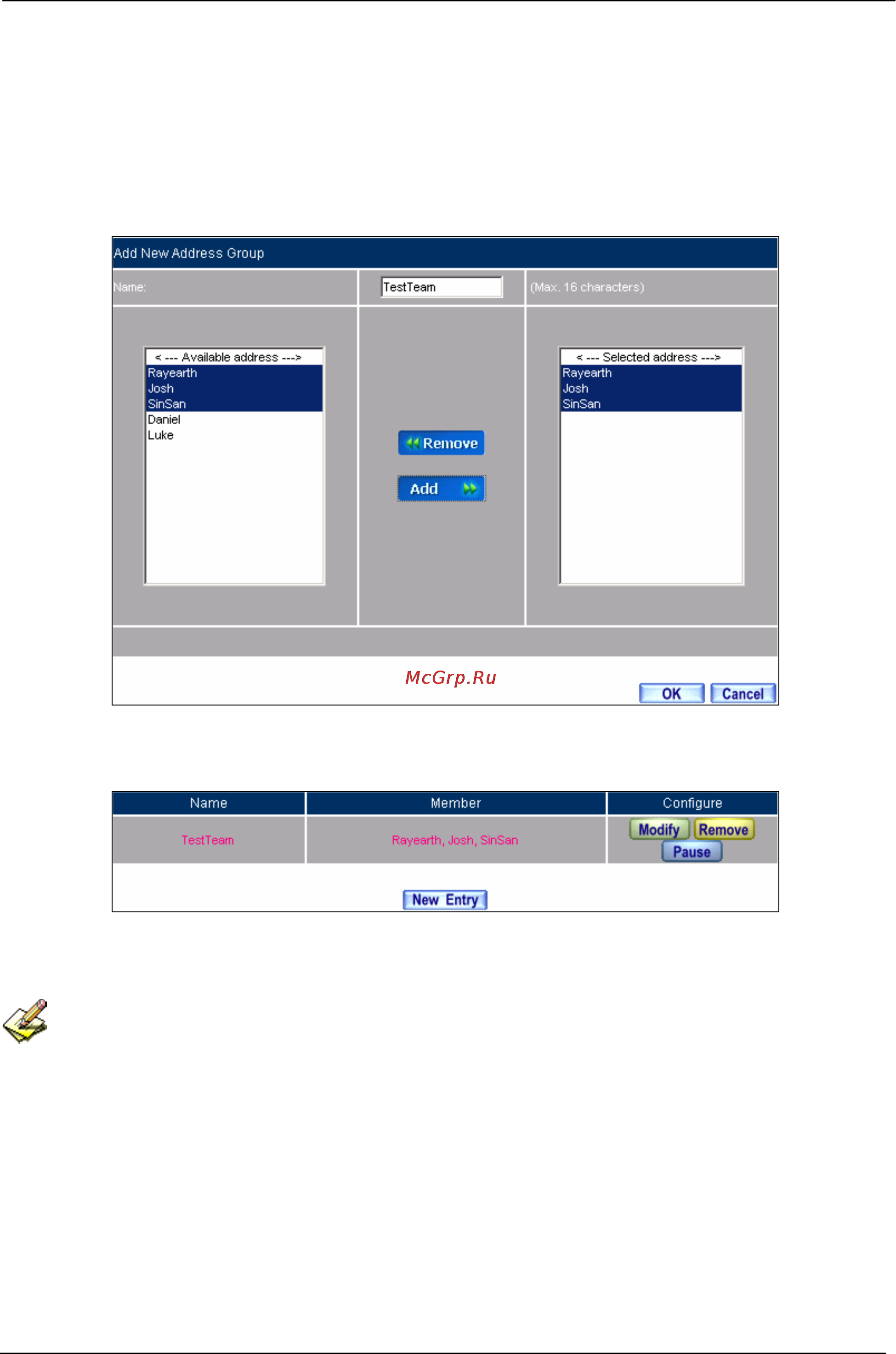

Add New LAN Address Group

Complete Adding LAN Address Group

The setting mode of WAN Group and DMZ Group of Address are the same as LAN Group.
