BM-525 Bandwidth Management Gateway User’s Manual

- 58 -

STEP 3﹒Enter the following settings in WAN of Address function:

 Click New Entry

 Enter the following data (Name, IP Address, Netmask)

 Click OK

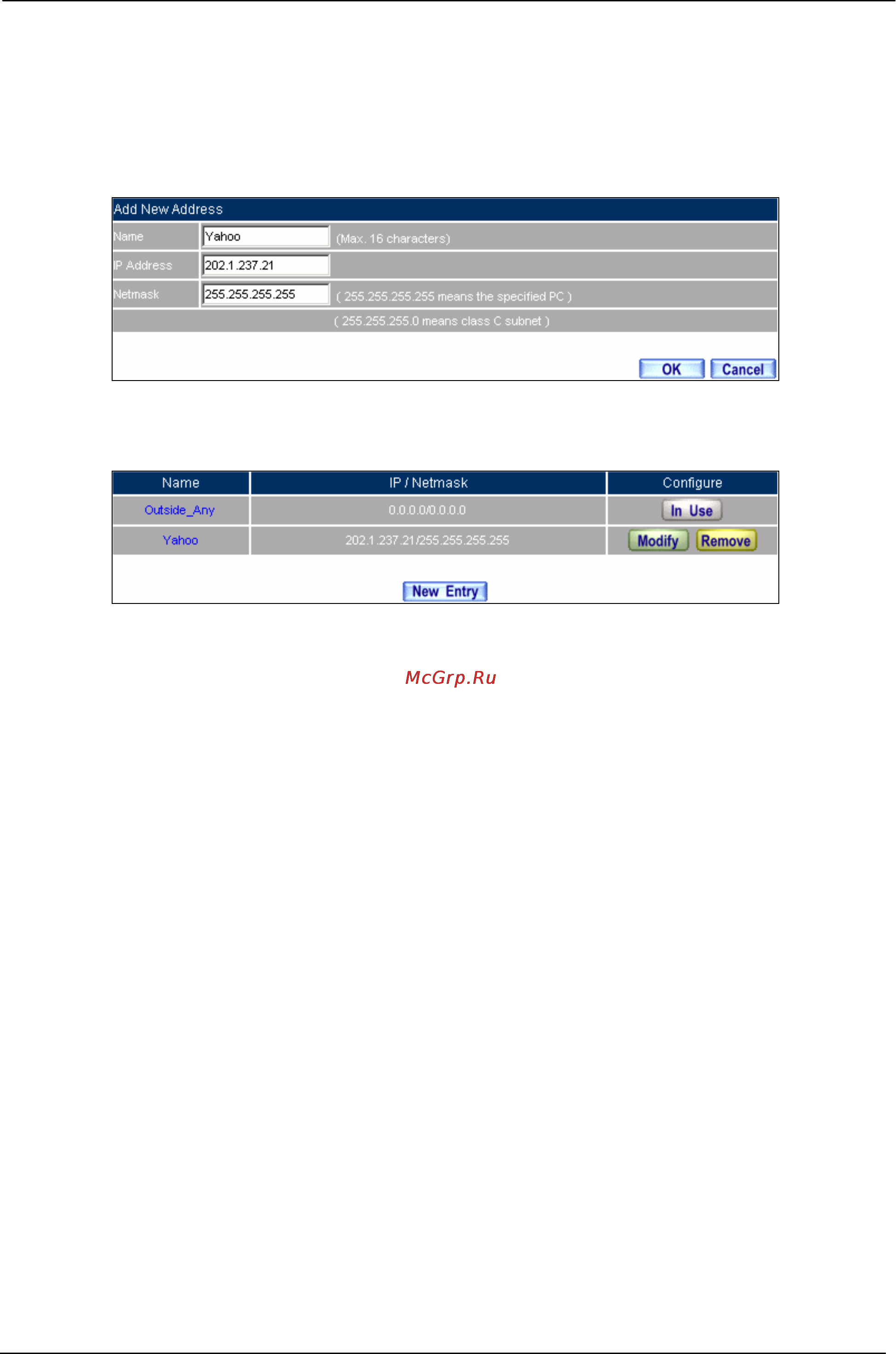

Add New WAN Address

Complete the Setting of WAN Address
