BM-525 Bandwidth Management Gateway User’s Manual

- 113 -

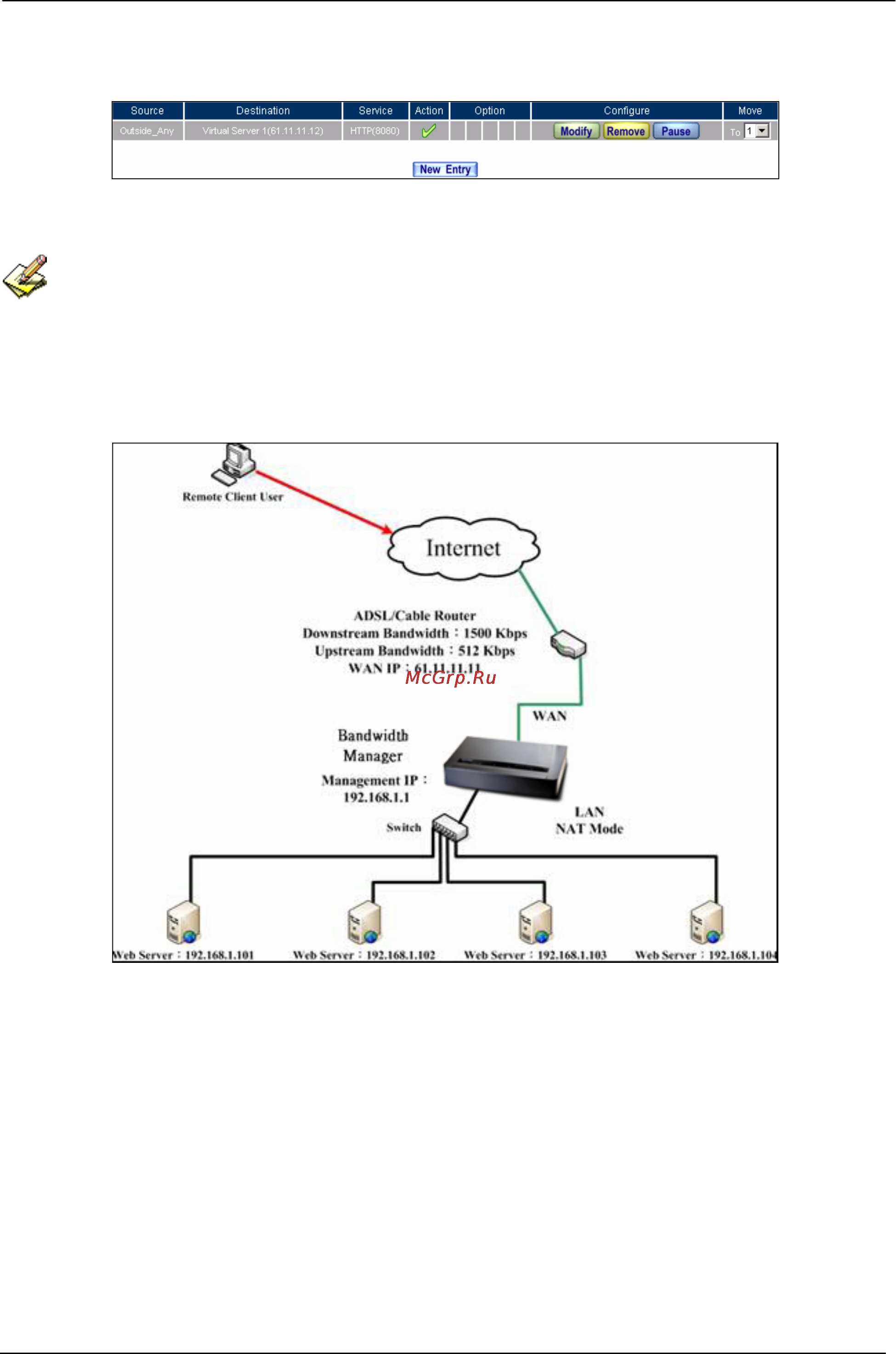

STEP 3﹒ Add a new policy in Incoming Policy, which includes the virtual server, set by STEP2.

Complete Virtual Server Policy Setting

In this example, the external users must change its port number to 8080 before entering the Website that

set by the Web server.

STEP 4﹒Complete the setting of providing a single service by virtual server.

Several Servers Provide a Single Service by Virtual Server
