BM-525 Bandwidth Management Gateway User’s Manual

- 119 -

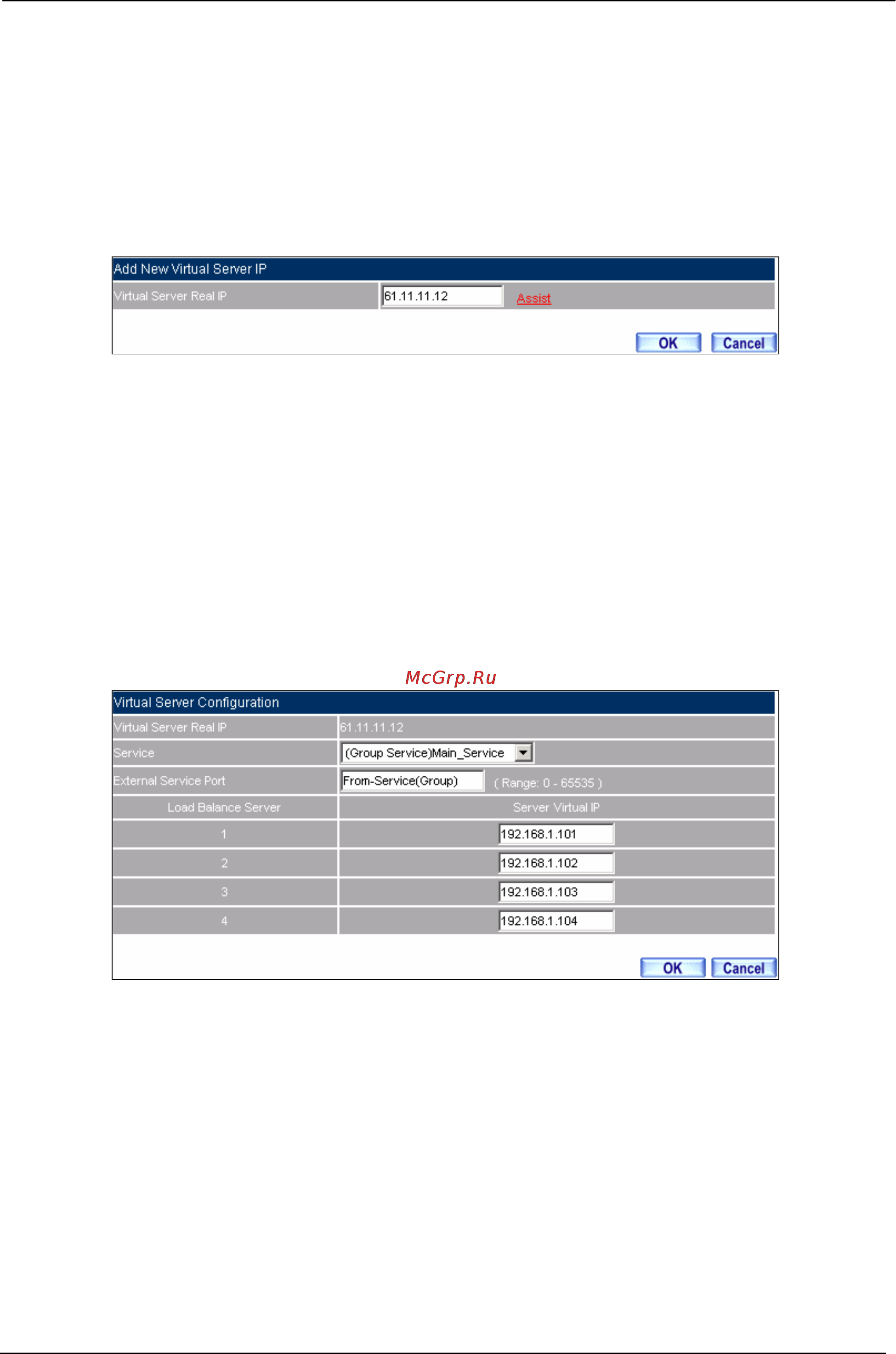

STEP 4﹒Enter the following data in Server1 of Virtual Server:

 Click the button next to Virtual Server Real IP (“click here to configure ”) in

Server1

 Virtual Server Real IP: Enter 61.11.11.12 (click Assist for assistance)

 Click OK

Virtual Server Real IP Setting

 Click New Entry

 Service: Select (Group Service) Main_Service

 External Service Port: From-Service (Group)

 Enter the server IP in Load Balance Server

 Click OK

 Complete the setting of Virtual Server

Virtual Server Configuration Web UI
