BM-525 Bandwidth Management Gateway User’s Manual

- 153 -

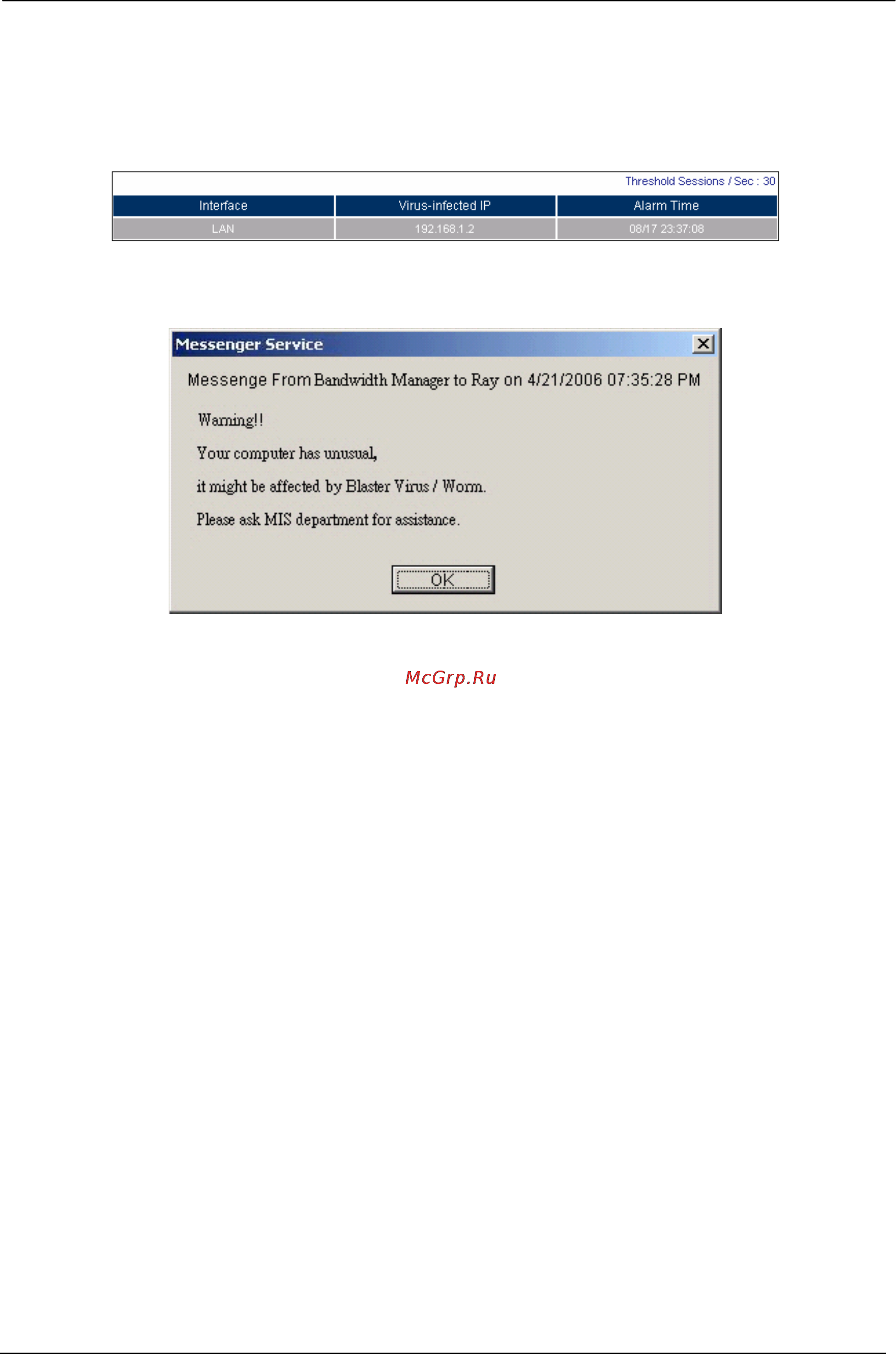

Step2. When the system detects the DDoS attack packets, it will show the message in

Anomaly Flow IP Æ Virus-infected IP. Or send the Net BIOS Notification to the MIS

and virus-infected PC.

Anomaly flow IP and Virus-infected IP

Send the NetBIOS Alert notification to the virus-infected PC
