BM-525 Bandwidth Management Gateway User’s Manual

- 169 -

STEP 3﹒ Click Clear Logs and click OK on the confirm Web UI, the records will be deleted from

the BM-525 instantly.

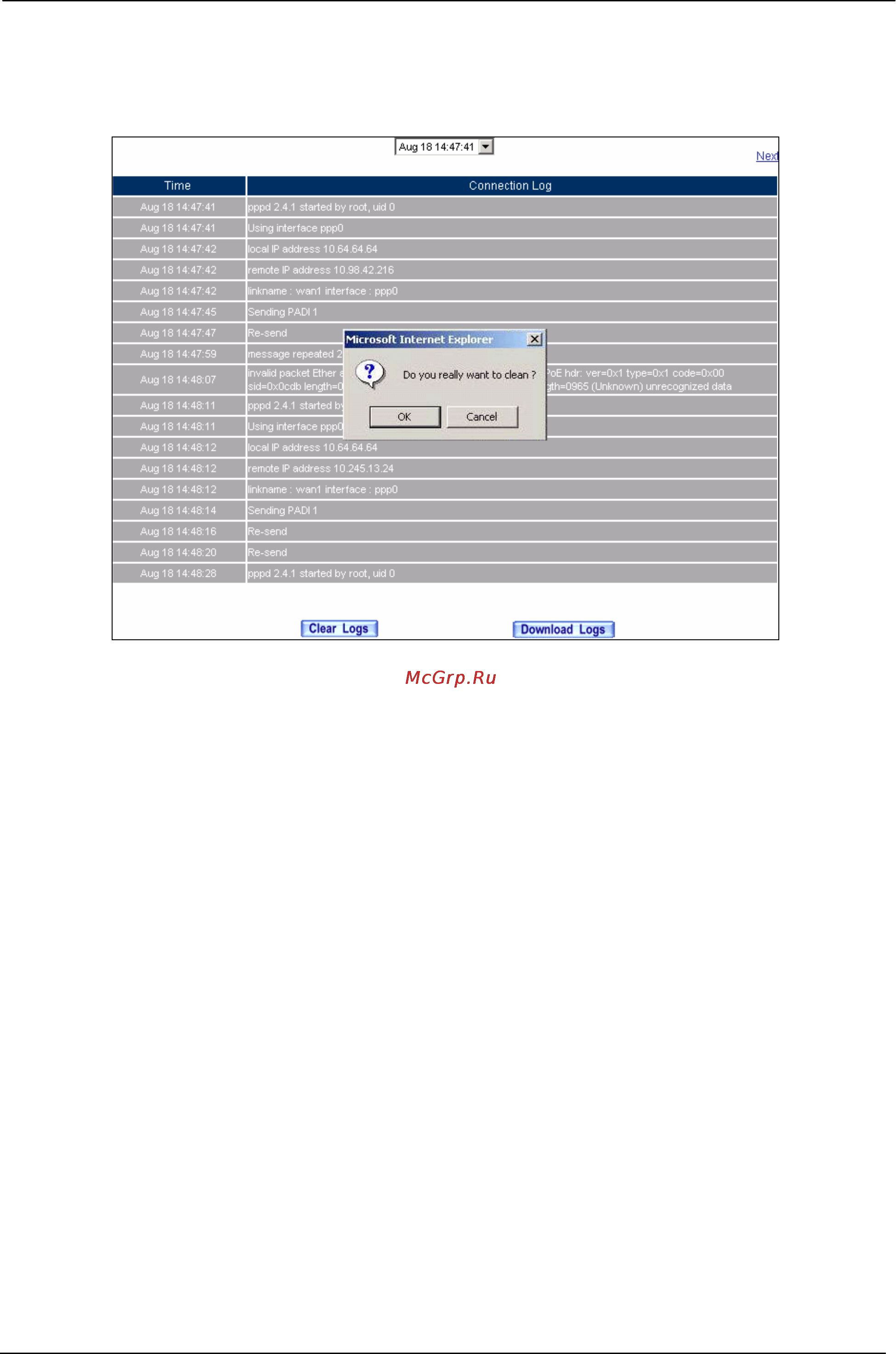

Clearing Connection Log Records Web UI
