BM-525 Bandwidth Management Gateway User’s Manual

- 180 -

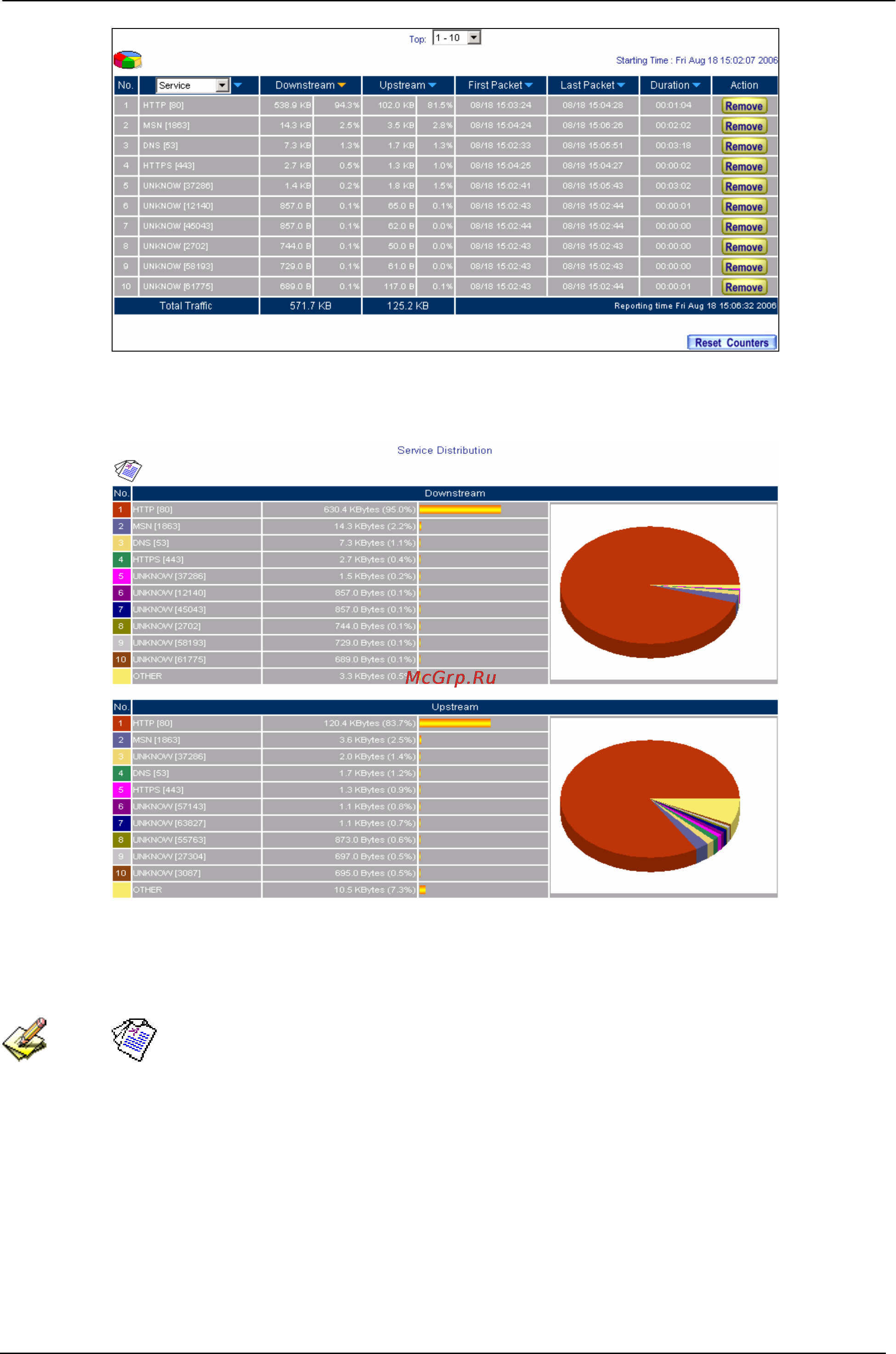

Outbound Services Statistics Report

According to the downstream / upstream report of the selected TOP numbering to draw the

Protocol Distribution chart

Press to return to Accounting Report window.
