BM-525 Bandwidth Management Gateway User’s Manual

- 27 -

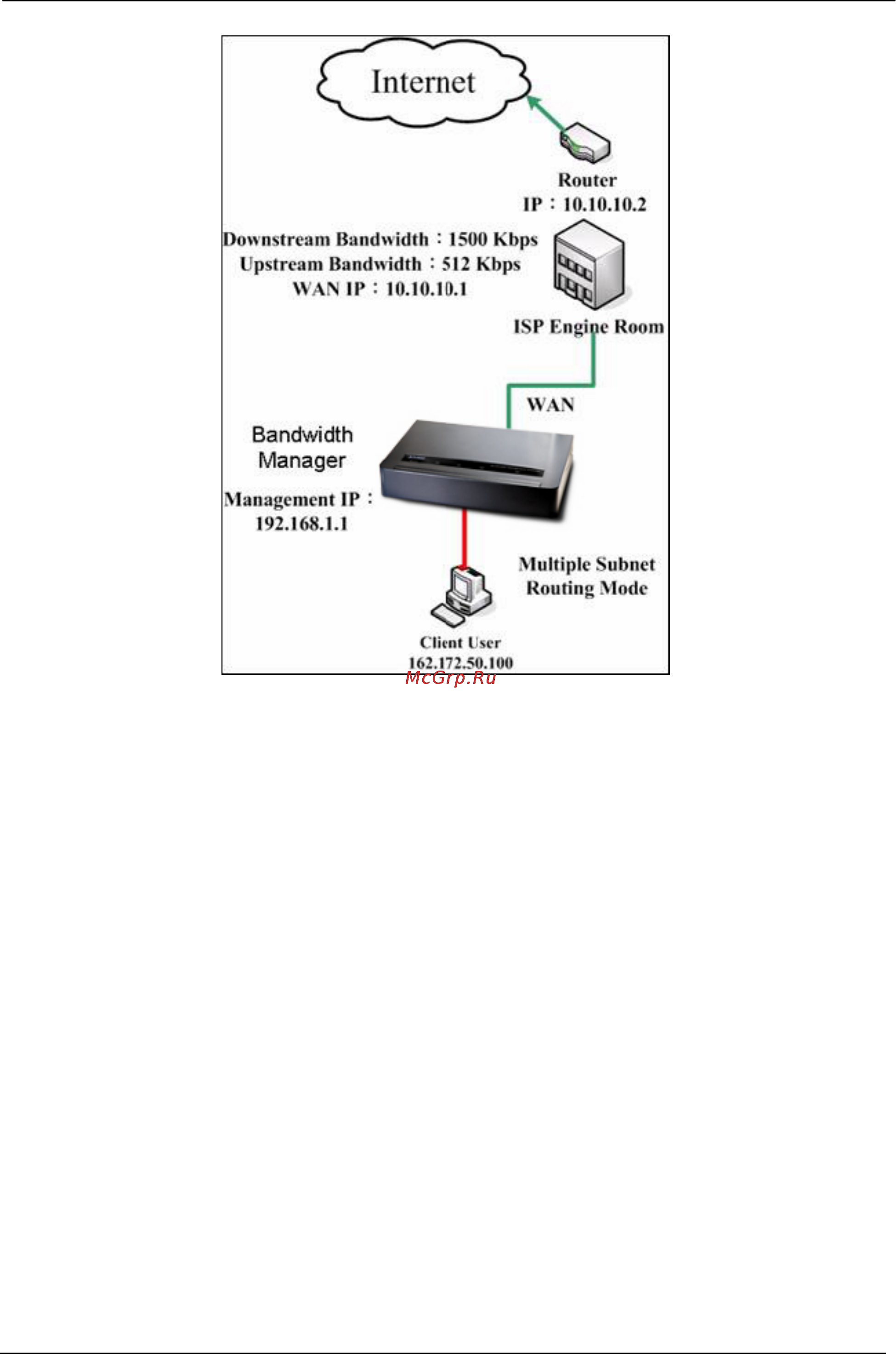

Multiple Subnet Network

 The BM-525’s Interface Status:

WAN IP：10.10.10.1

LAN Port IP：192.168.1.1

LAN Port Multiple Subnet：162.172.50.1
