BM-525 Bandwidth Management Gateway User’s Manual

- 30 -

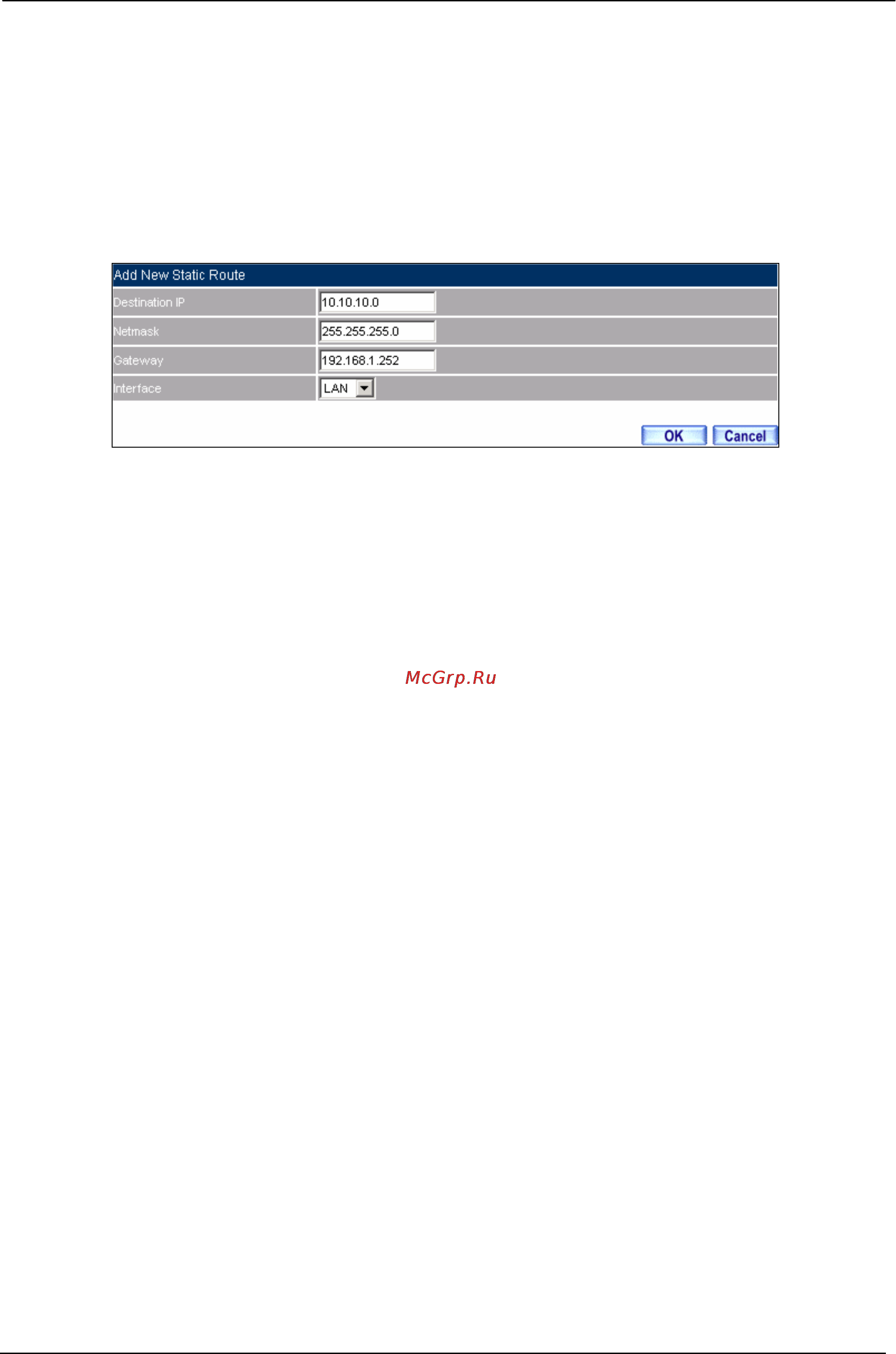

STEP 3﹒Enter the following setting in Route Table in System function:

 Destination IP: Enter 10.10.10.0

 Netmask: Enter 255.255.255.0

 Gateway: Enter 192.168.1.252

 Interface: Select LAN

 Click OK

Add New Static Route3
