BM-525 Bandwidth Management Gateway User’s Manual

- 54 -

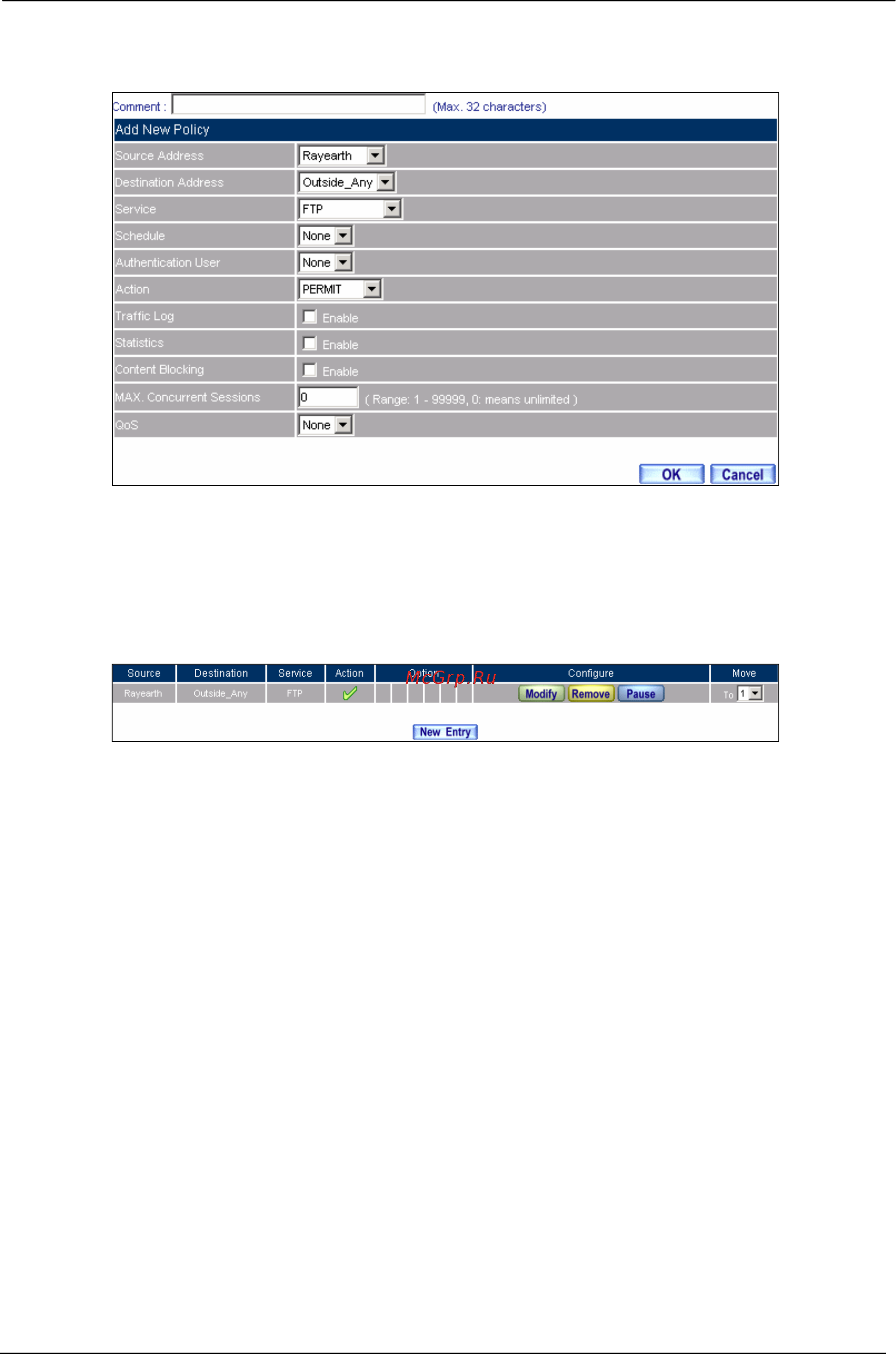

STEP 2﹒Adding the following setting in Outgoing Policy:

Add a Policy of Restricting the Specific IP to Access to Internet

STEP 3﹒Complete assigning the specific IP to static users in Outgoing Policy and restrict them to

access FTP net service only through policy:

Complete the Policy of Restricting the Specific IP to Access to Internet
