BM-525 Bandwidth Management Gateway User’s Manual

- 78 -

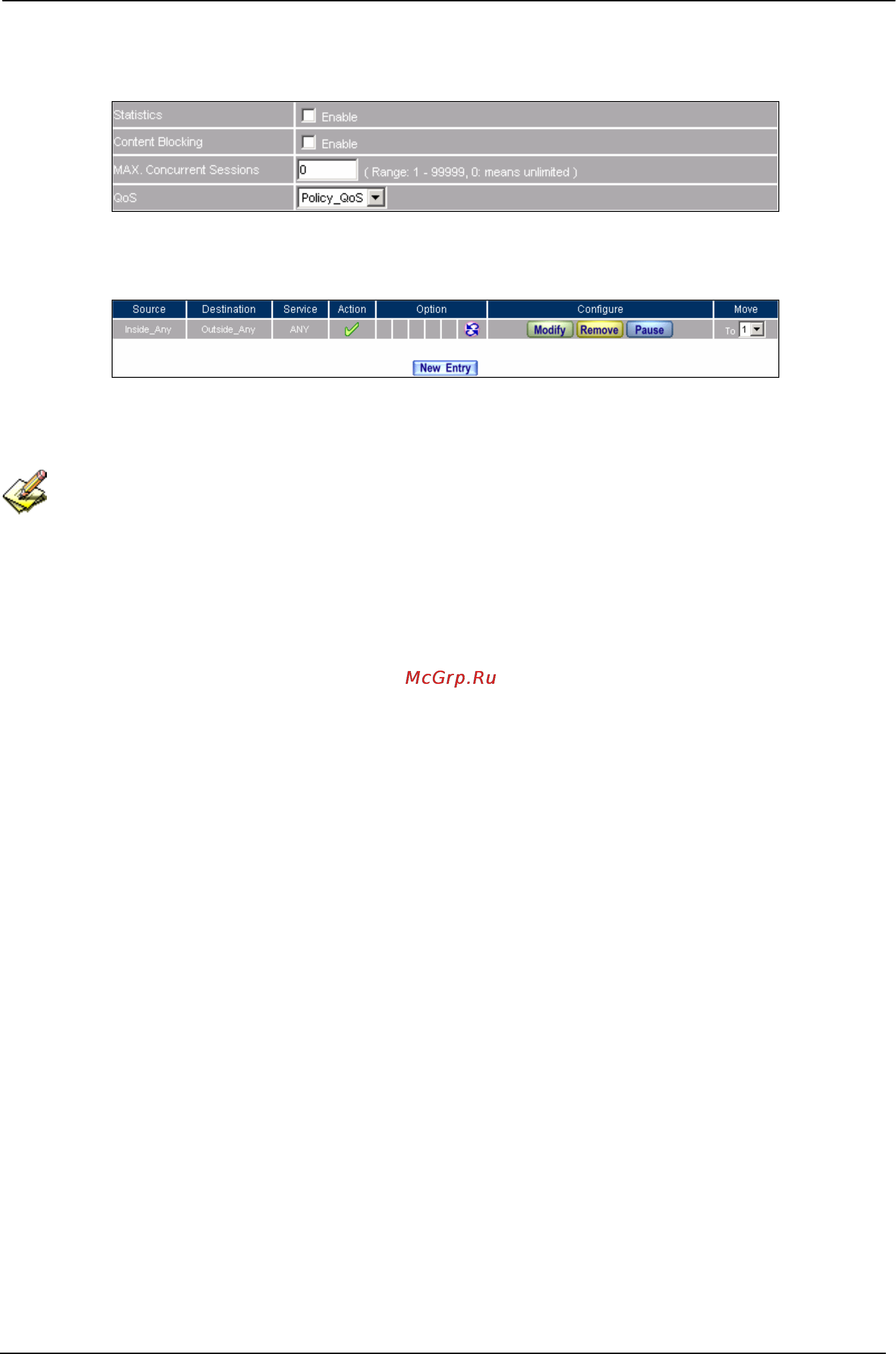

STEP 2﹒Use the QoS that set by STEP1 in Outgoing Policy.

Setting the QoS in Policy

Complete Policy Setting

When the administrator are setting QoS, the bandwidth range can be set the value that system

administrator sets in the WAN of Interface. So when the System Administrator sets the downstream and

upstream bandwidth in WAN of Interface, he/she must set up precisely.
