BM-525 Bandwidth Management Gateway User’s Manual

- 86 -

STEP 2﹒Add Auth User Group Setting in Authentication function and enter the following

settings:

 Click New Entry

 Name: Enter laboratory

 Select the Auth User you want and Add to Selected Auth User

 Click OK

 Complete the setting of Auth User Group

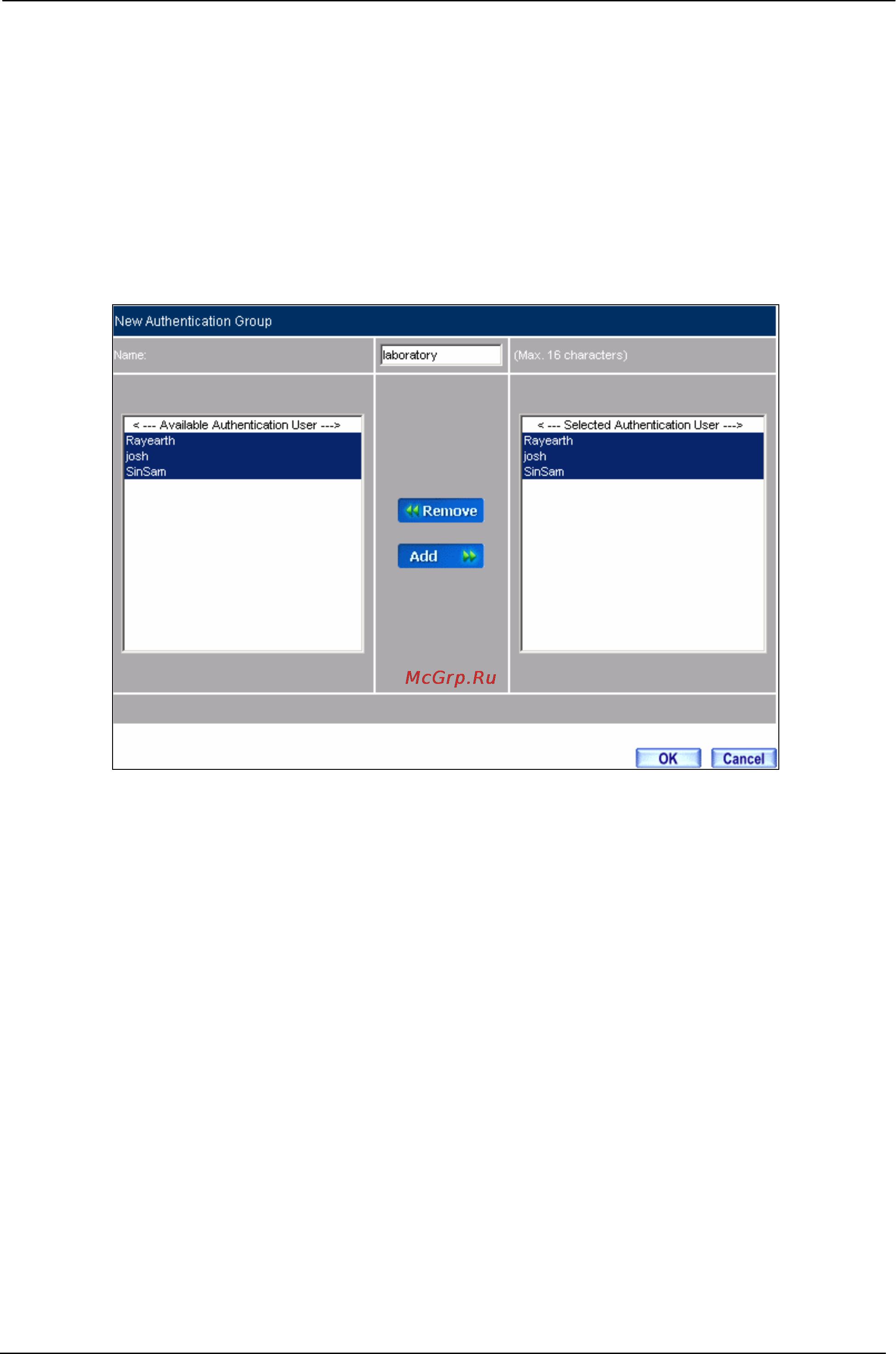

Setting Auth Group Web UI
