BM-525 Bandwidth Management Gateway User’s Manual

- 88 -

STEP 4﹒When user is going to access to Internet through browser, the authentication UI will

appear in Browser. After entering the correct user name and password, click OK to

access to Internet.

STEP 5﹒ If the user does not need to access to Internet anymore and is going to logout, he/she can

click LOGOUT Auth-User to logout the system. Or enter the Logout Authentication

Web UI (http:// LAN Interface: Authentication port number/ logout.html) to logout.

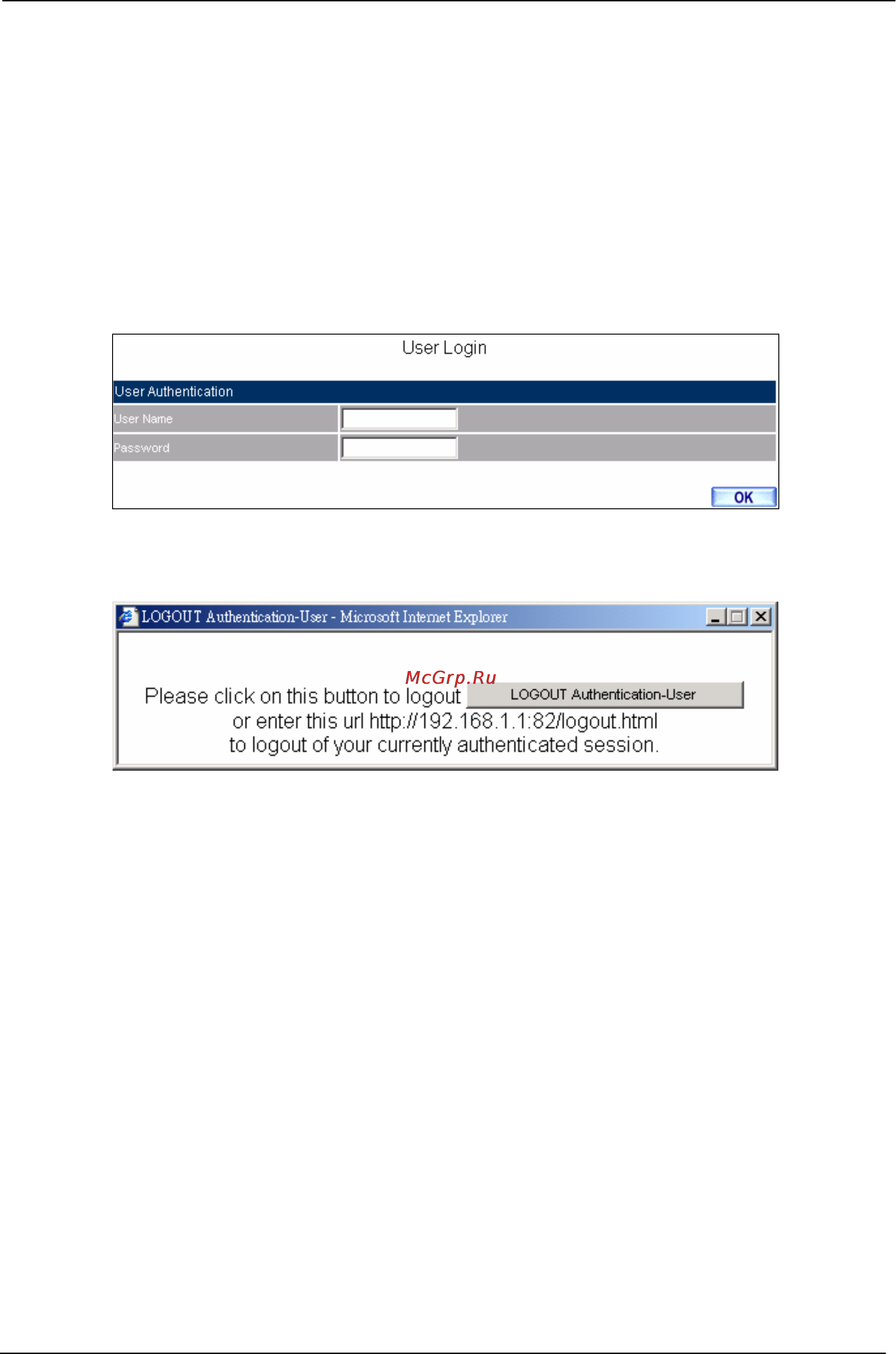

Access to Internet through Authentication Web UI

Logout Auth-User Web UI
