DIVAtop MICRO F
42
EN
cod. 3540S261 - 02/2010 (Rev. 00)
5. TECHNICAL DATA AND CHARACTERISTICS

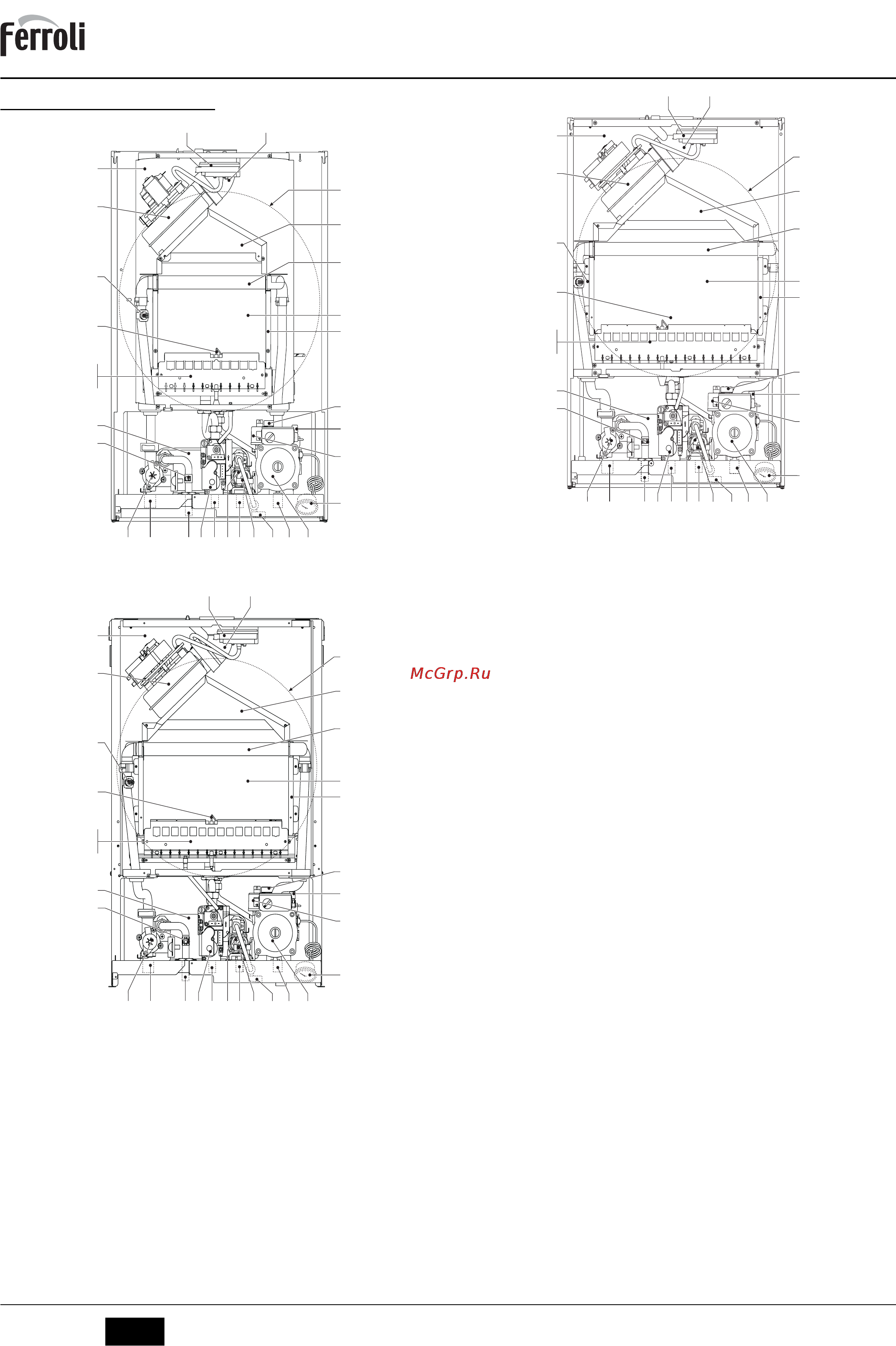

5.1 General view and main components
fig. 30 - General view DIVAtop MICRO F 24
fig. 31 - General view DIVAtop MICRO F 32
fig. 32 - General view DIVAtop MICRO F 37
Key of figures cap. 5
5 Sealed chamber
7 Gas inlet
8 Domestic hot water outlet
9 Cold water inlet
10 System delivery
11 System return
14 Safety valve
16 Fan
19 Combustion chamber
20 Burner assembly
26 Combustion chamber insulation
27 Copper exchanger
28 Fume manifold
29 Fume outlet manifold
32 Heating circulating pump
36 Automatic air vent
37 Water inlet filter
39 Flow regulator
42 DHW temperature sensor
44 Gas valve
47 Modureg
56 Expansion tank
72 Room thermostat
73 Antifreeze thermostat (optional)
74 System filling cock
81 Ignition/Detection electrode
95 Diverter valve
136 Flow meter
138 External probe
139 Remote timer control (OpenTherm)
145 Pressure gauge
194 Exchanger
241 Automatic bypass
246 Pressure transducer
278 Double sensor (Safety + Heating)
288 Antifreeze kit (option for outdoor installation)
297 Air pressure transducer
44 32
246
36
14
26
19
27
28
56
297 29
5
16
81
20
21
22
42
278
95 136
37
10 8 7 9 11
194
39
145
74
44 32
246
36
14
26
19
27
28
56
297 29
5
16
81
20
21
22
42
278
95 136
37
10 8 7 9 11
194
39
145
74
44 32
246
36
14
26
19
27
28
56
297 29
5
16
81
20
21
22
42
278
95 136
37
10 8 7 9 11
194
39
145
74
