DIVAtop MICRO F
9
IT
cod. 3540S261 - 02/2010 (Rev. 00)

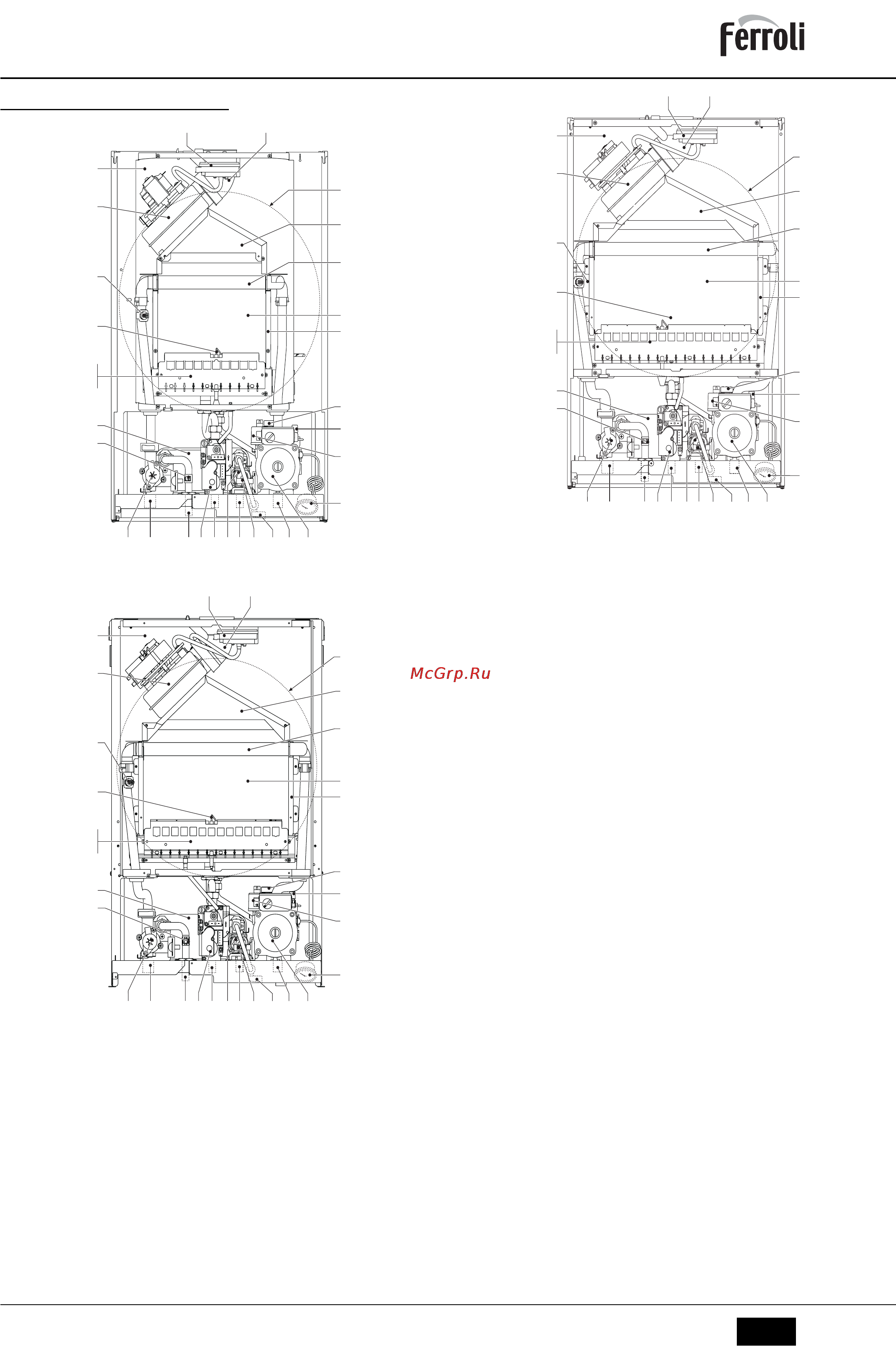

5. CARATTERISTICHE E DATI TECNICI
5.1 Vista generale e componenti principali
fig. 30 - Vista generale DIVAtop MICRO F 24
fig. 31 - Vista generale DIVAtop MICRO F 32
fig. 32 - Vista generale DIVAtop MICRO F 37
Legenda figure cap. 5
5 Camera stagna
7 Entrata gas
8 Uscita acqua sanitaria
9 Entrata acqua sanitaria
10 Mandata impianto
11 Ritorno impianto
14 Valvola di sicurezza
16 Ventilatore
19 Camera combustione
20 Gruppo bruciatori
26 Isolante camera di combustione
27 Scambiatore in rame
28 Collettore fumi
29 Collettore uscita fumi
32 Circolatore riscaldamento
36 Sfiato aria automatico
37 Filtro entrata acqua
39 Regolatore di portata
42 Sensore di temperatura sanitaria
44 Valvola gas
47 Modureg
56 LVaso di espansione
72 Termostato ambiente
73 Termostato antigelo (opzionale)
74 Rubinetto di riempimento impianto
81 Elettrodo d’accensione/rilevazione
95 Valvola deviatrice
136 Flussometro
138 Sonda esterna
139 Cronocomando remoto (OpenTherm)
145 Manometro
194 Scambiatore
241 By-pass automatico
246 Trasduttore di pressione
278 Sensore doppio (Sicurezza + Riscaldamento)
288 Kit antigelo (opzionale per installazione all’esterno)
297 Trasduttore di pressione aria
44 32
246
36
14
26
19
27
28
56
297 29
5
16
81
20
21
22
42
278
95 136
37
10 8 7 9 11
194
39
145
74
44 32
246
36
14
26
19
27
28
56
297 29
5
16
81
20
21
22
42
278
95 136
37
10 8 7 9 11
194
39
145
74
44 32
246
36
14
26
19
27
28
56
297 29
5
16
81
20
21
22
42
278
95 136
37
10 8 7 9 11
194
39
145
74
