SCAN OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
t Push and hold [S.MW](M/CALL) for 1 sec. to store the skip
condition into the memory.
• “SKIP” or “PSKIP” indicator appears, according to the skip selec-
tion in the step r.
Skip channel setting
Program skip setting

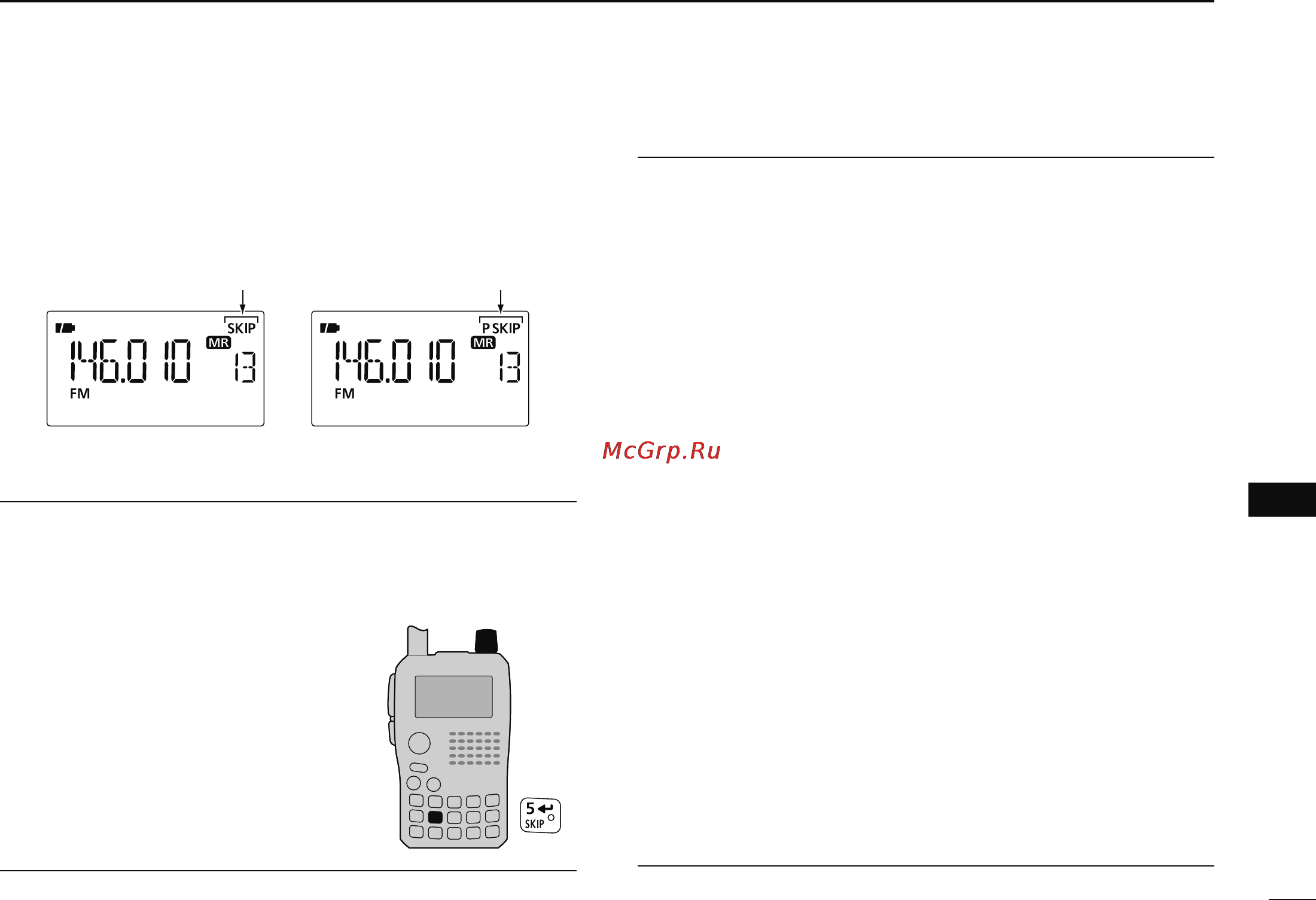

“SKIP” appears “PSKIP” appears
CONVENIENT!
The skip setting can be set with the following operation.
[DIAL]
q Select the desired memory channel to be set as a skip
channel/frequency.
w
While pushing [SKIP](5), rotate
[DIAL] to select the skip condition
from “PSKIP,” “SKIP” and “OFF
(no in-
dication).”
CONVENIENT!
During VFO scanning, such as programmed scan, the skip
setting can be programmed into the highest blank memory
channel which is automatically selected with the following op-
eration.
q Start the VFO scan.
± Push
[V/MHz] to select VFO mode.
• Select the desired frequency band with [BAND], if desired.
± Set the squelch level.
± While pushing and holding [SCAN](V/MHz) for 1 sec. to
enter scan type selection, then rotate [DIAL] to select
the desired scan type.
• “ALL” for full scan; “BAND” for band scan, “P-LINK x” for pro-
grammed link scan (x= 0 to 9), “PROGxx (or scan name
if programmed)” for programmed scan (xx= 0 to 24; pro-
grammed scan edges numbers are only displayed), “DUP”
for duplex scan.
± Push [SCAN](V/MHz) again to start the scan.
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction, or resumes
manually.
w When scan pauses and you want to set the paused fre-
quency as a skip frequency.
±
Push and hold [SKIP](5) for 1 sec. to store the paused
frequency into the highest blank memory channel.
• While pushing and holding [SKIP](5), scan pauses; and when
releasing [SKIP](5) scan resumes.
