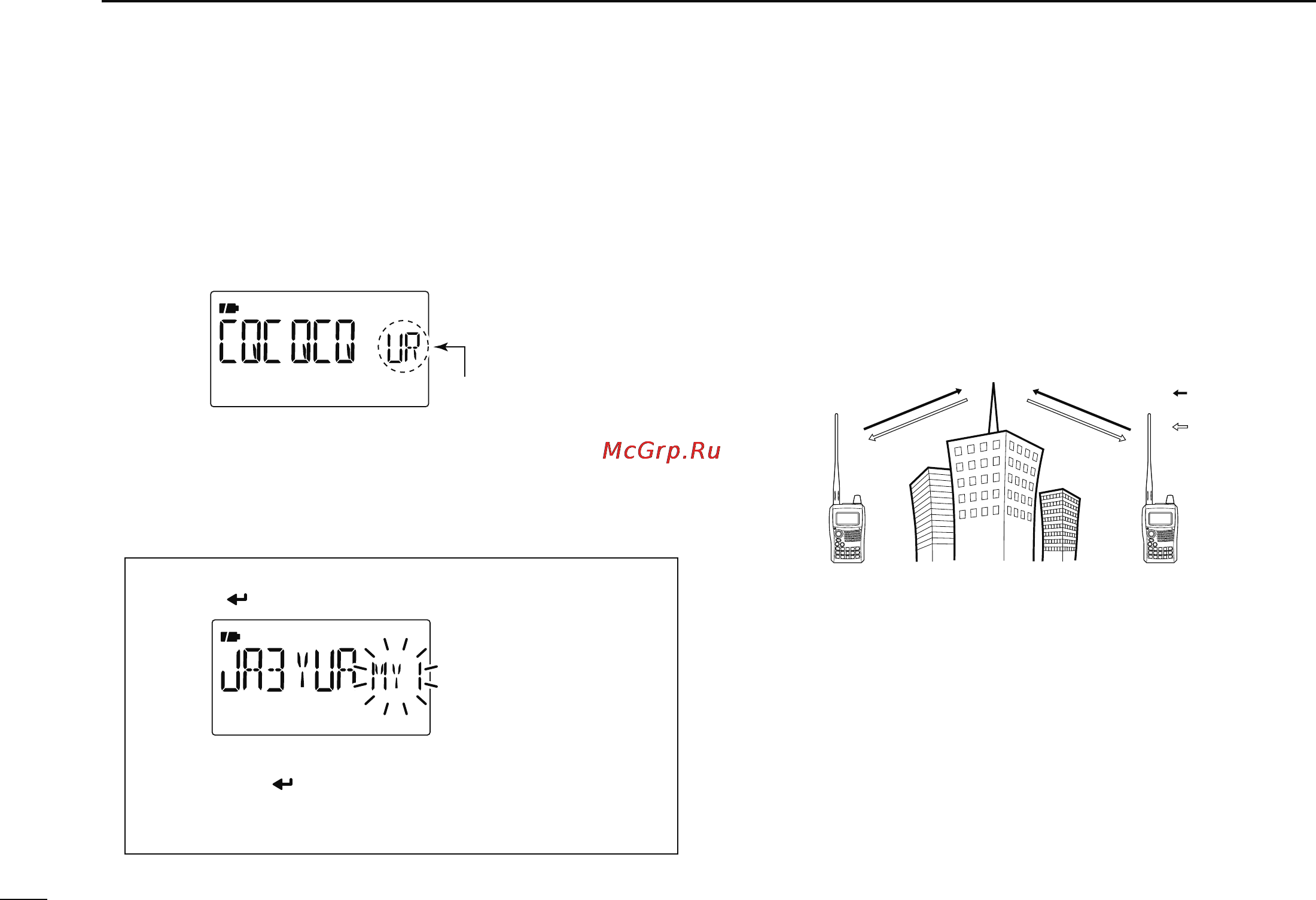

D Confirming current call sign
q Push and hold [CS](9) for 1 sec. to enter the current call
sign mode.
• Current UR call sign is displayed.
Appears momentarily
w Push [](2) or [](8) to select and confirm the other cur-
rent call sign.
• (“UR”), “R1,” “R2” and “MY” appears in sequence.
• When repeater call sign is selected, push and hold [CS](9) for 1
sec. to toggle the call sign and repeater name indications.
When changing the call sign
q Push [ ](5) to enter the call sign selection mode.
w Push [](2) or [](8) to select the desired call sign,
then push [
](5).
• When “UR,” “R1” or “R2” is selected, push [BAND] several
times to select the repeater call sign groups.
e Push [CS](9) again to return to frequency indication.
N Receiving a D-STAR repeater
When the IC-80AD receives a signal from a D-STAR re-
peater, it receives four call sign: caller’s call sign, called call
sign, repeater call sign 1 (the repeater that caller accessed),
and repeater call sign 2 (the liked repeater). You can copy
the received call signs to current call signs, and you can also
reply to a call.
Station A
Station B
Repeater
449.700 MHz
444.700 MHz
444.700 MHz
449.700 MHz
Uplink
Downlink
(transmitting freq.)
(receiving freq.)
• Presetting
q Set the desired repeater frequency.
(p. 23)
• Select output power, if desired. (p. 27)
w Set the shift direction of the transmit frequency. (DUP– or
DUP; see p. 31 for details.)
• When the auto repeater function is in use (U.S.A. and Korean
versions only), this selection is not necessary. (p. 32)
e Select DV mode. (p. 25)
r When signal is received, display indicates received call
sign.
See next page for information about received call signs.
48
7
DV MODE OPERATION
