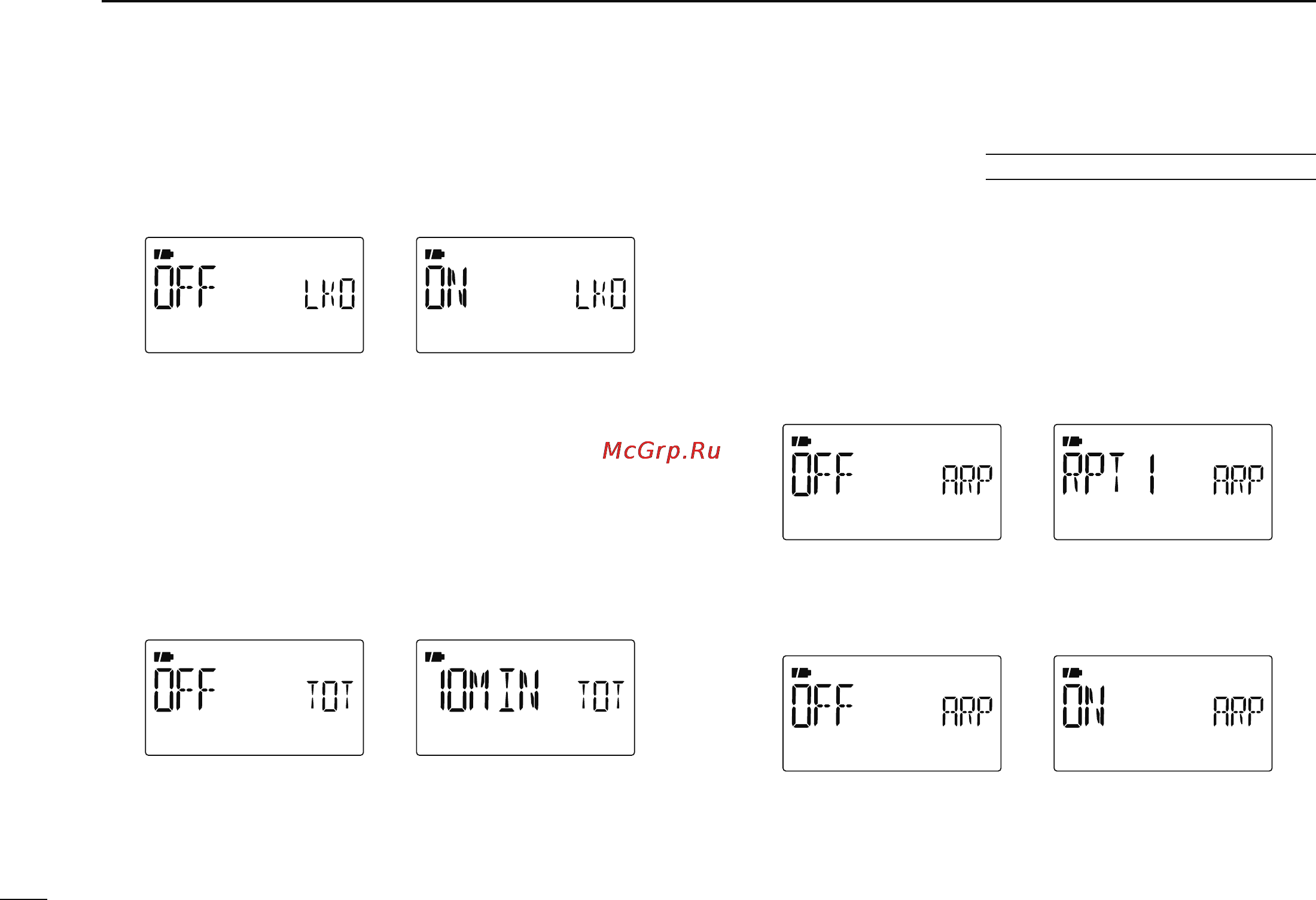

D Busy lockout (LK OUT)
Turns the busy lockout function ON and OFF.
This function inhibits transmission while receiving a
signal or when the squelch is open. (default: OFF)
D Time-out timer (TOT)
To prevent accidental prolonged transmission, etc., the trans-
ceiver has a time-out timer. This function cuts transmission
OFF after 1, 3, 5, 10, 15 or 30 min. of continuous transmis-
sion. This timer can be cancelled.
• OFF : The time-out timer is turned OFF. (default)
• 1 to 30 MIN : The transmission is cut OFF after the set
period elapses.
D Auto repeater (AUTORP)
U.S.A. and Korean versions only
The auto repeater function automatically turns ON or OFF the
duplex operation and tone encoder. The offset and repeater
tone settings are not changed by the auto repeater function.
Reset these frequencies, if necessary.
U.S.A. version:
• OFF : The auto repeater function is turned OFF.
• RPT1 : Activates for duplex only. (default)
• RPT2 : Activates for duplex and tone.
Korean version:
• OFF : The auto repeater function is turned OFF.
• ON : Activates duplex and tone. (default)
