D Call/TV*/Weather
†
channels
Call channels are used for quick recall of most-often used
frequencies.
* Appears only when TV channels are programmed via the
CS-80/880 (free download software).
†
Available for the U.S.A. version only.

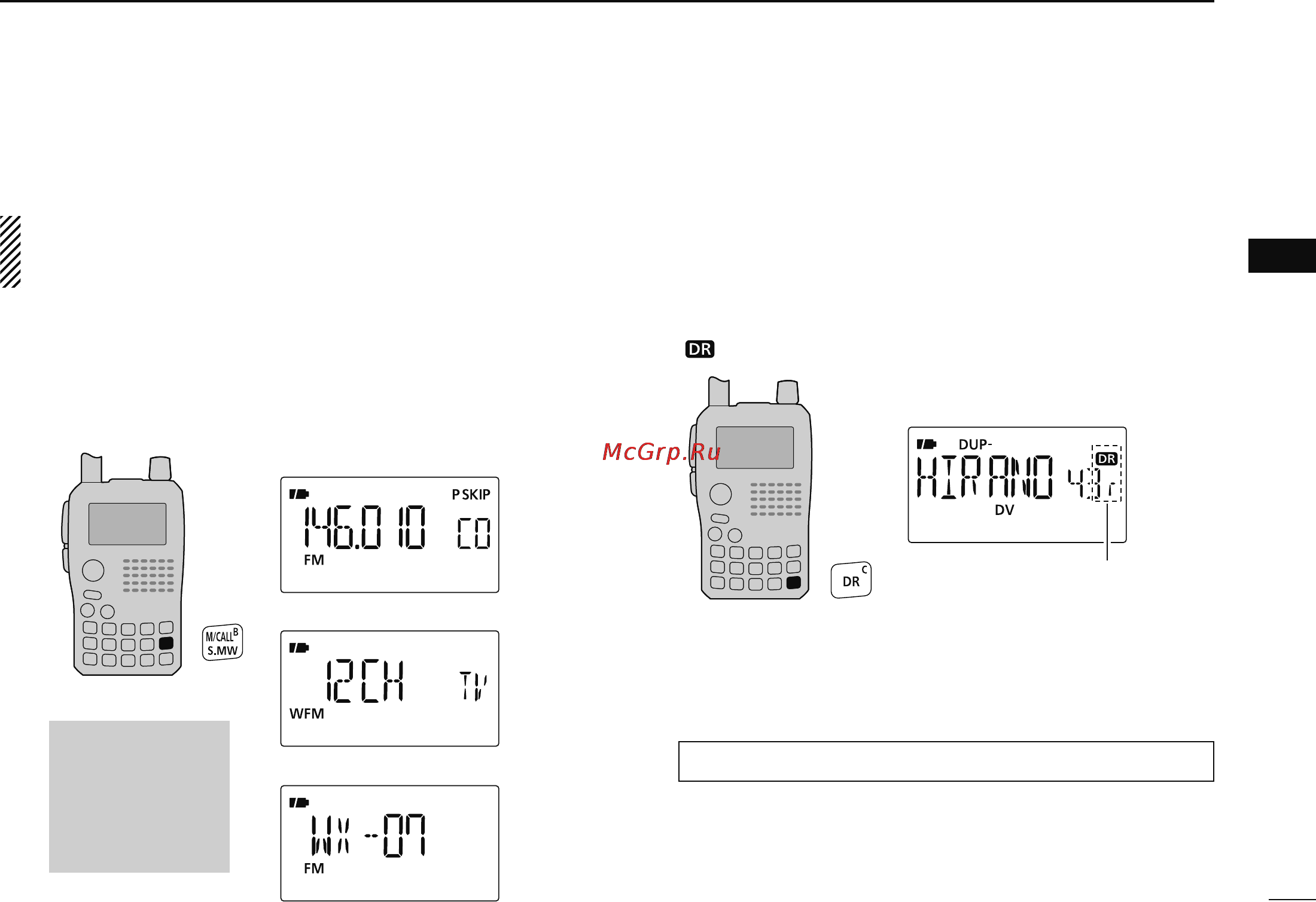

q Push [M/CALL] several times to select call channels/TV
channels/Weather channels.
• Memory/Call/TV/Weather channels can be selected in se-
quence.
w Rotate [DIAL] to select the desired channel.
• Call channel indication
• TV channel indication
• Weather channel indication
TV reception is
available for analog
TV broadcasting
only, but it is not
available for digital
TV bradcasting.
D DR (D-STAR Repeater) mode
DR (D-STAR Repeater) mode is used for D-STAR repeater
operation. In this mode, you can select the pre-programmed
repeaters and UR call sign easily by using [DIAL].
D-STAR is an abbreviation for Digital Smart Technologies for
Amateur Radio.
q Push [DR] to select DR mode.
• “
” appears when DR mode is selected.
• DR mode indication
Appear
w Rotate [DIAL] to select the desired access repeater.
• While rotating [DIAL], S/RF-meter indicates group number.
• Only programmed access repeaters in RPT-L menu can be se-
lected. See p. 40 for RPT-L (repeter lists) programming details.
MENU ¶RPT-L ¶ADD-L (p. 40)
