OTHER FUNCTIONS
N Cloning function

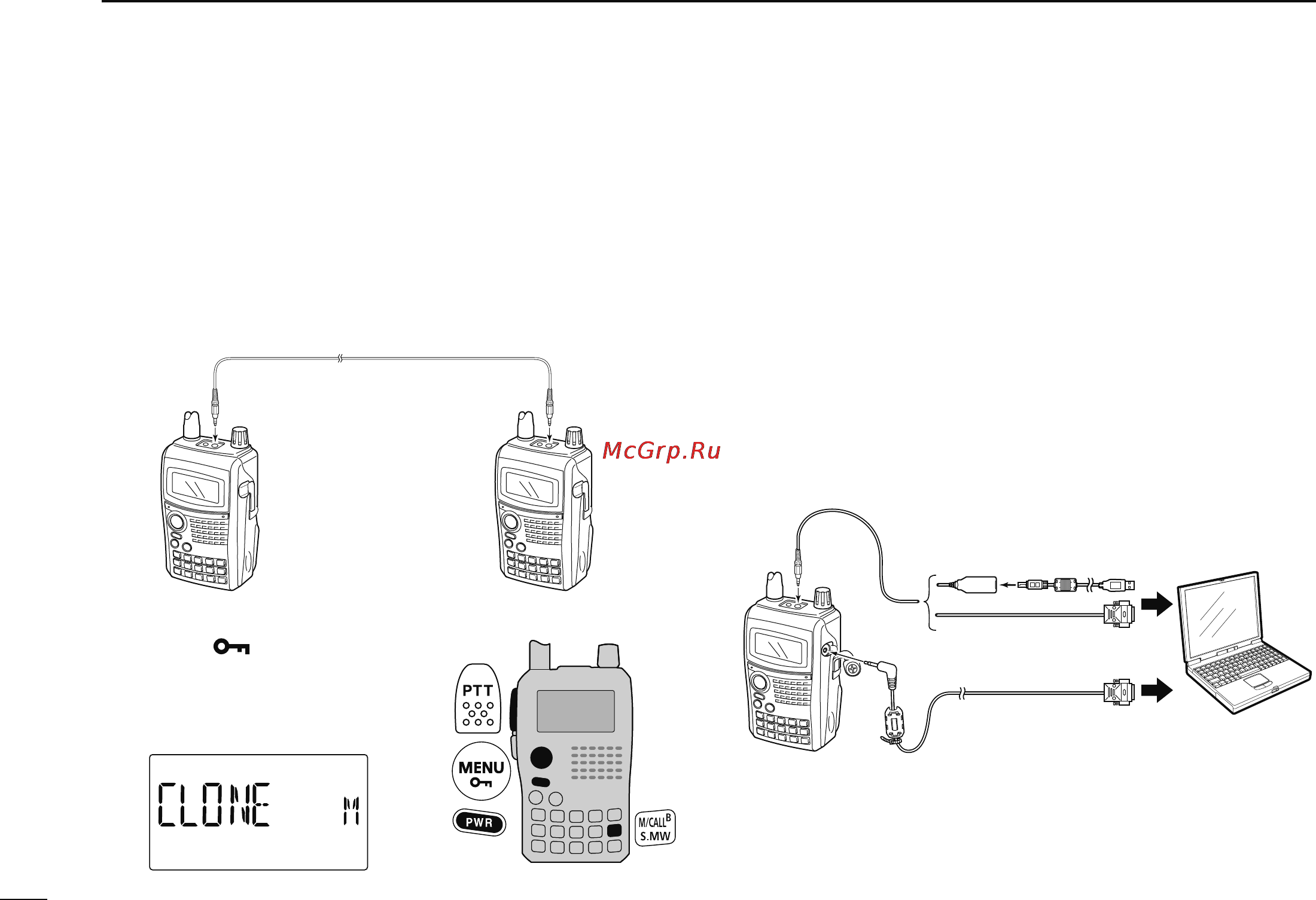

The IC-80AD has transceiver-to-transceiver data cloning
capability. This function is useful when you want to copy all
of the programmed contents from one IC-80AD to another.
• An optional OPC-474
CLONING CABLE is required.
q Turn the transceiver’s power OFF, then connect an optional
OPC-474 between both [SP] jacks.
OPC-474
to the [SP] jack
w While pushing [M/CALL] and
[MENU
], push and hold
[PWR] for 1 sec. to enter clon-
ing mode.
• “CLONE M” appears.
e Push [PTT] on the “master” transceiver.
• “CL OUT M” appears and the bar meter shows that cloning is
taking place.
• After the cloning is completed, the display returns to “CLONE
M.”
r Push and hold [PWR] for 1 sec. to turn power OFF.
The CS-80/880 CLONING SOFTWARE (free download) is
also available to clone/edit contents with a PC (for Microsoft
®
Windows
®
2000/XP or Windows Vista
®
) using ICF format files.
to [SP]
jack
PC
OPC-478
(RS-232C type)
OPC-478UC
(USB type)
to USB port
to RS-232C
port
to RS-232C
port
OPC-1529R
to [DATA]
jack
