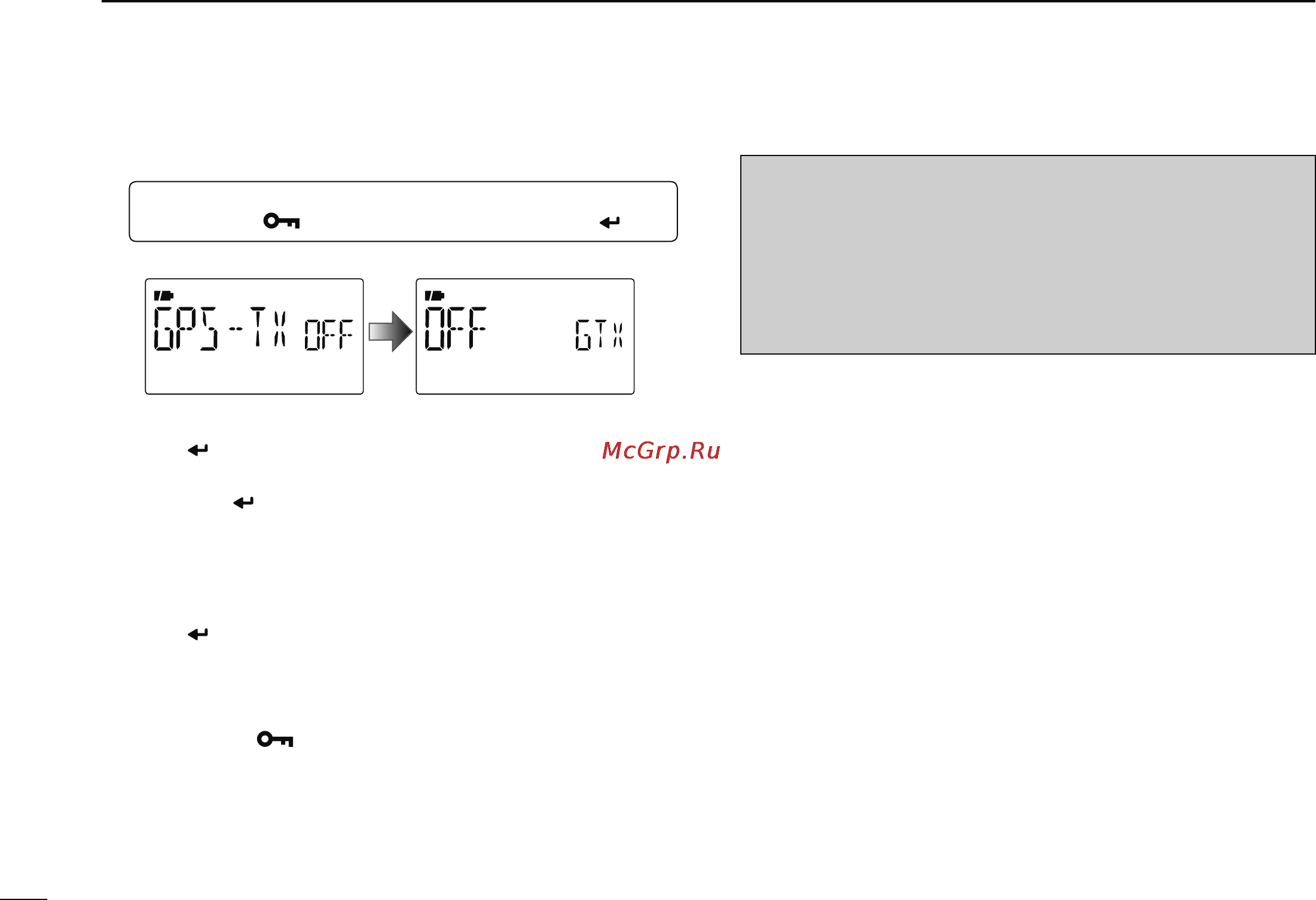

D Sentence formatter setting
q Enter “GPS-TX” in GPS mode.
MENU ¶ GPS ¶ GPS-TX
(Push [MENU ]), (Push [](2)/[](8), then push [ ](5).)
• GPS-TX screen is displayed.
w Push [∫](2) or [√](8) to select “DVG.”
e Push [
](5) to select GPS sentence screen.
r Push [∫](2) or [√](8) to select the desired GPS sentence,
then push [
](5).
• A total of 6 sentences, RMC, GGA, GLL, GSA, VTG and GSV
are available.
t Push [∫](2) or [√](8) to select to turn the sentence usage
ON and OFF.
y Push [
](5) to return to GPS sentence screen.
u Repeat the steps r to y to set another GPS sentence
usage.
• Up to 4 GPS sentences are usable at the same time.
i Push [MENU ] to return to frequency indication.
NOTE:
Set the GSV sentence to OFF when sending the GPS mes
-
sage to conventional digital transceivers (IC-2820, ID-800H,
IC-91AD, IC-V82, IC-U82).
The GSV sentence is incompatible with them. Those trans
-
ceivers will not display GPS messages properly if sent as a
GSV sentence from the IC-80AD.
78
8
GPS/GPS-A OPERATION
