N Programming a DTMF code
DTMF codes are used for autopatching, accessing repeat-
ers, controlling other equipment, etc. The transceiver has 16
DTMF memory channels (d0–d9, dA, dB, dC, dD, dE, dF) for
storage of often-used DTMF codes of up to 24 digits.

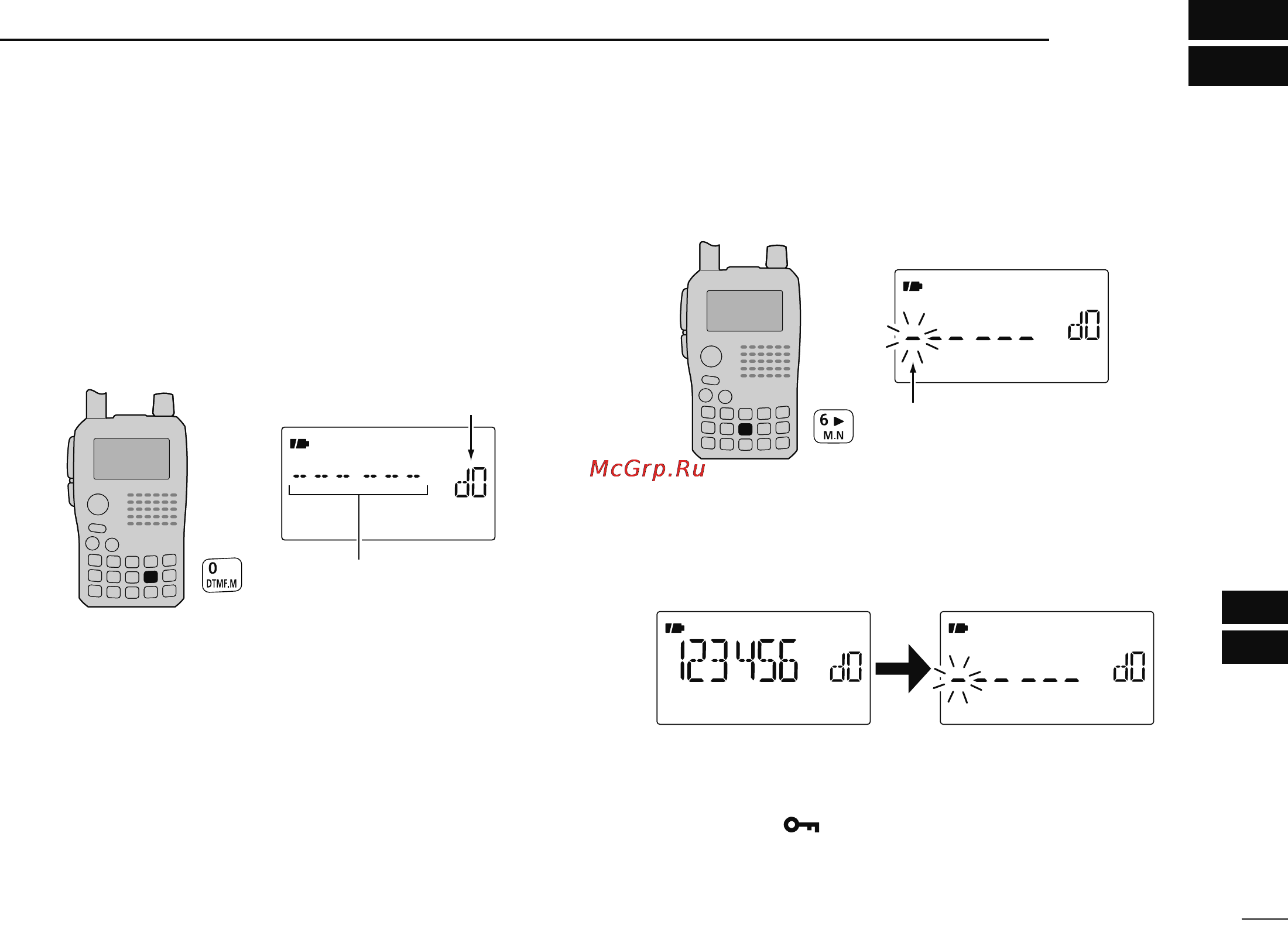

q Push and hold [DTMF.M](0) for 1 sec. to enter DTMF
memory.
DTMF memory channel
Blank channel indication
w Push [](2) or [](8) to select the desired DTMF memory
channel.
• “T-CALL” appears when a 1750 Hz tone burst signal is selected.
(p. 33)
• Previously programmed DTMF code is displayed if pro-
grammed.
e Push [](6) to enter programming mode.
The cursor is blinking when
entering programming mode.
r Push the desired keys to input the characters.
• [0]–[9] input “0”–“9,” [A](V/MHz) inputs “A,” [B](M/CALL) inputs
“B,” [C](DR) inputs “C,” [D]() inputs “D,” [1](BAND) inputs “1
(E)” and [#](.) inputs “# (F).”
• Up to 24 digits can be programmed.
Next display appears after
6th digit has been input.
t Repeat step r until the desired code is input.
y Push [MENU
] to program the DTMF code and exit
programming mode.
• Entering 24th digit automatically exits the programming mode.
u Push [V/MHz] to exit DTMF memory.
