DV MODE OPERATION
7
1
2
3
4
5
6
8
9
10
11
12
13
14
15
16
17
18
19

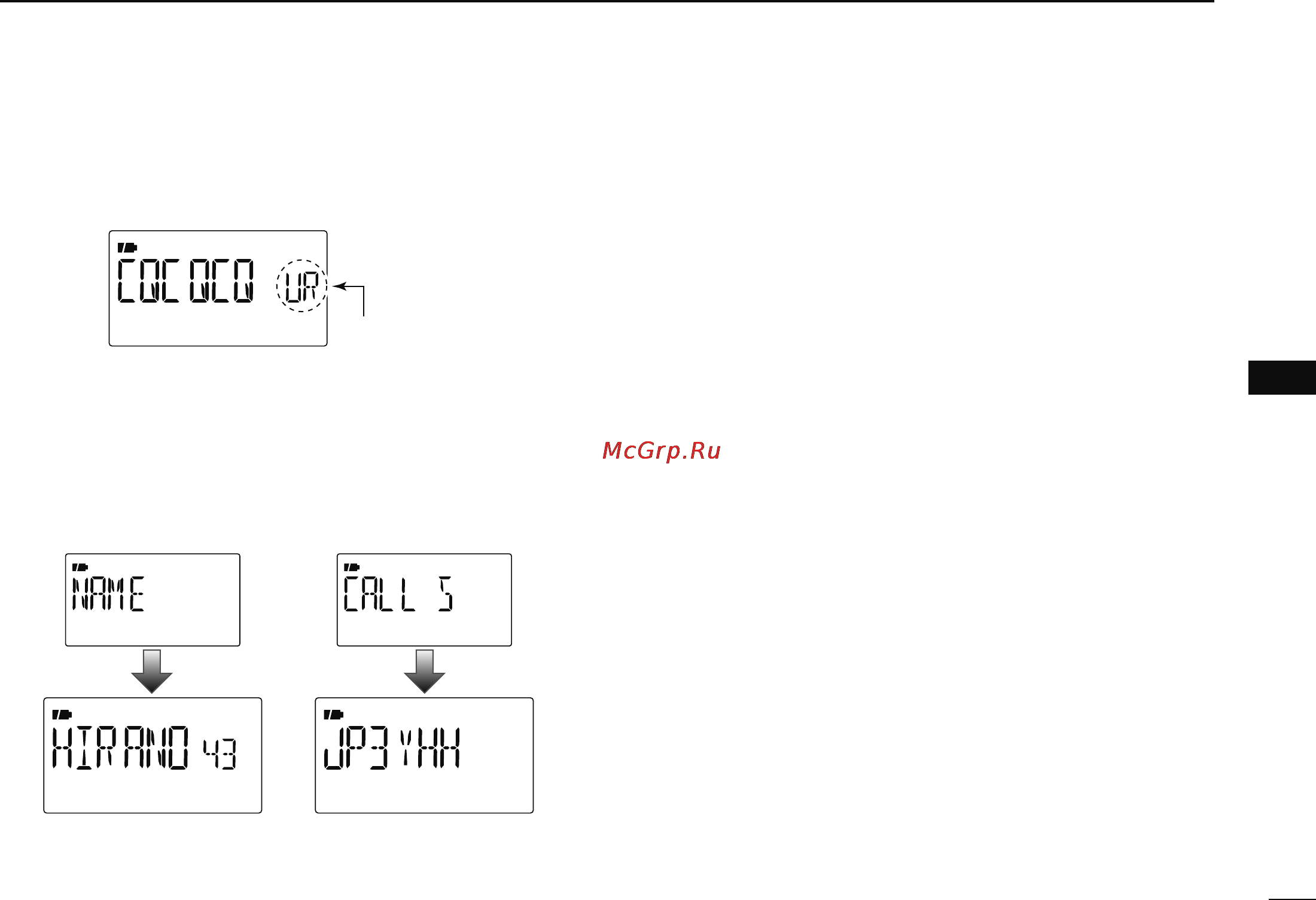

D Confirming the setting
q Push and hold [CS](9) for 1 sec. to enter the setting confir-
mation screen.
• Either UR, R1 or R2 call sign is displayed.
Appears momentarily
w Push [](2) or [](8) to select and confirm the other cur-
rent call sign.
• “UR,” “R1,” “R2,” “MY” and “FREQ” appears in sequence.
e Push and hold [CS](9) for 1 sec. to toggle the name indica-
tion and call sign indication.
• Name indication is available only for repeater call signs that have
programmed repeater names.
r Push [CS](9) again to exit the setting confirmation screen.
