DATA extension (DT EXT)
Sets the data extension capability to “CUR.SPD” (COURSE/
SPEED) or OFF (default).
The transceiver’s course and speed information is additionally
transmitted with position data when “CUR/SPD” is selected.
NOTE: When “CUR/SPD” is selected, number of charac-
ter for “COMMEN” (COMMENT) is limited to 36.

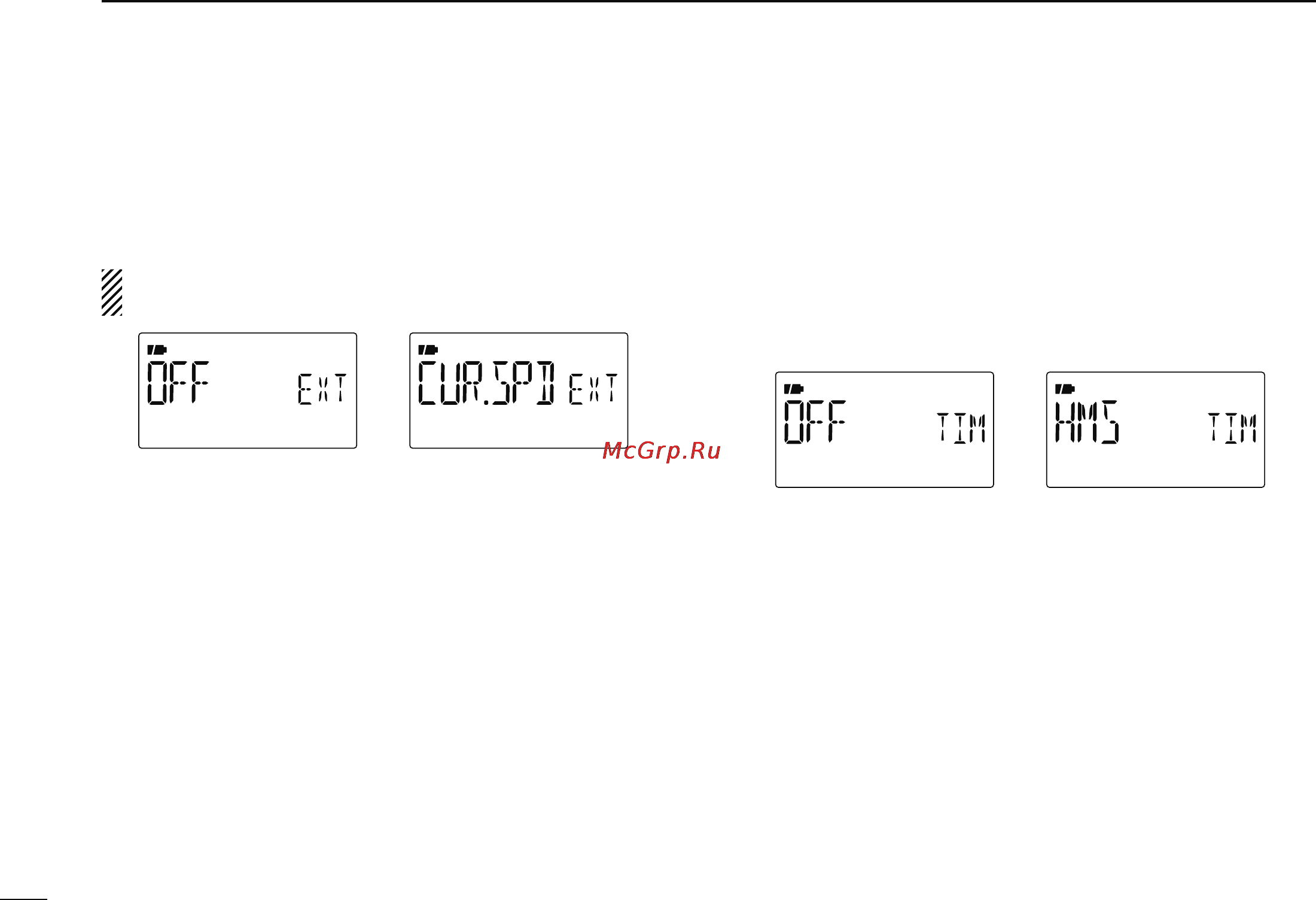

Set to course/speedSet data extension to OFF
Time stamp (TIME)
Selects transmitting time stamp type from DHM, HMS and
OFF. This function transmits UTC (Universal Time Coordi-
nated) time only.
• OFF : No time stamp is transmitted. (default)
• DHM : Time stamp in the format of Day, Hour and
Minute is transmitted.
• HMS : Time stamp in the format of Hour, Minute and
Second is transmitted.
Set to Hour/Minute/SecondSet time stamp to OFF
