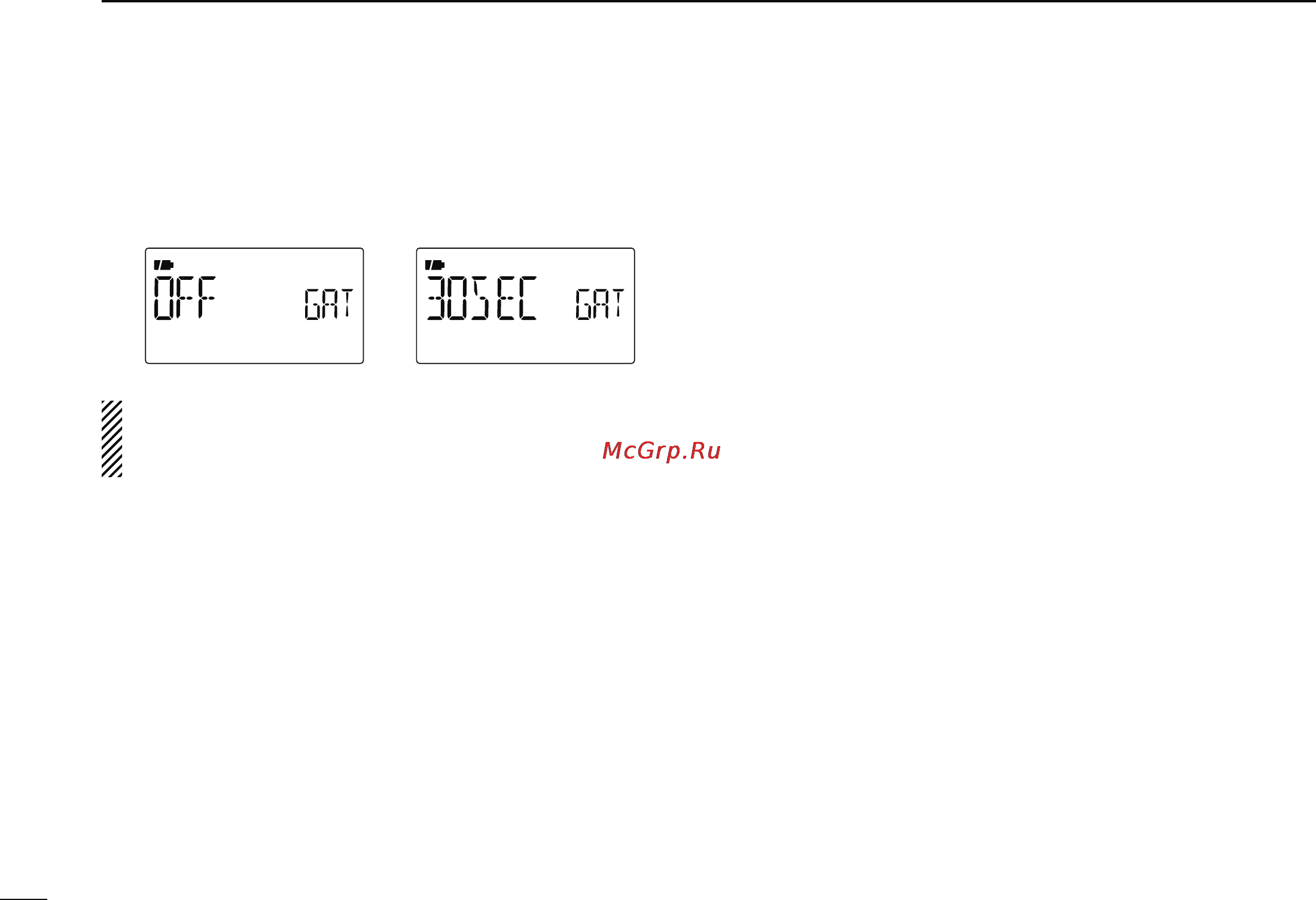

D GPS auto TX timer (GPS.ATX)
Selects the desired interval for automatic position transmis-
sion function from OFF (default), 5, 10, 30 second, 1, 3, 5, 10
and 30 minutes.
NOTE: When four sentence formatters are activated at
the same time (“Sentence formatter setting” on pgs. 138,
139), “5SEC” cannot be selected.
