32
5
REPEATER AND DUPLEX OPERATIONS
N Auto repeater function
The U.S.A. and Korean versions automatically use standard
repeater settings
(duplex ON/OFF, duplex direction, tone encoder
ON/OFF) when the operating frequency falls within or outside
of the general repeater output frequency range. The offset
and repeater tone frequencies are not changed by the auto
repeater function. Reset these frequencies, if necessary.
D Frequency range and offset direction
• U.S.A. version
• Korean version
FREQUENCY RANGE SHIFT DIRECTION
439.000–440.000 MHz “DUP–” appears
q Enter “AUTORP” in FUNC set mode (SET).
MENU ¶ SET ¶ FUNC ¶ AUTORP
(p. 126)
(Push [MENU ]), (Push [](2)/[](8), then push [ ](5).)
w Push [](2) or [](8) to select the auto repeater setting.
U.S.A. version:
• “RPT1” : Activates duplex only. (default)
• “RPT2” : Activates duplex and tone.
• “OFF” : Auto repeater function is turned OFF.
Korean version:
• “ON” : Activates duplex and tone. (default)
• “OFF” : Auto repeater function is turned OFF.
e Push [ ](5) to return to FUNC set mode, and then push
[MENU
] to return to frequency indication.

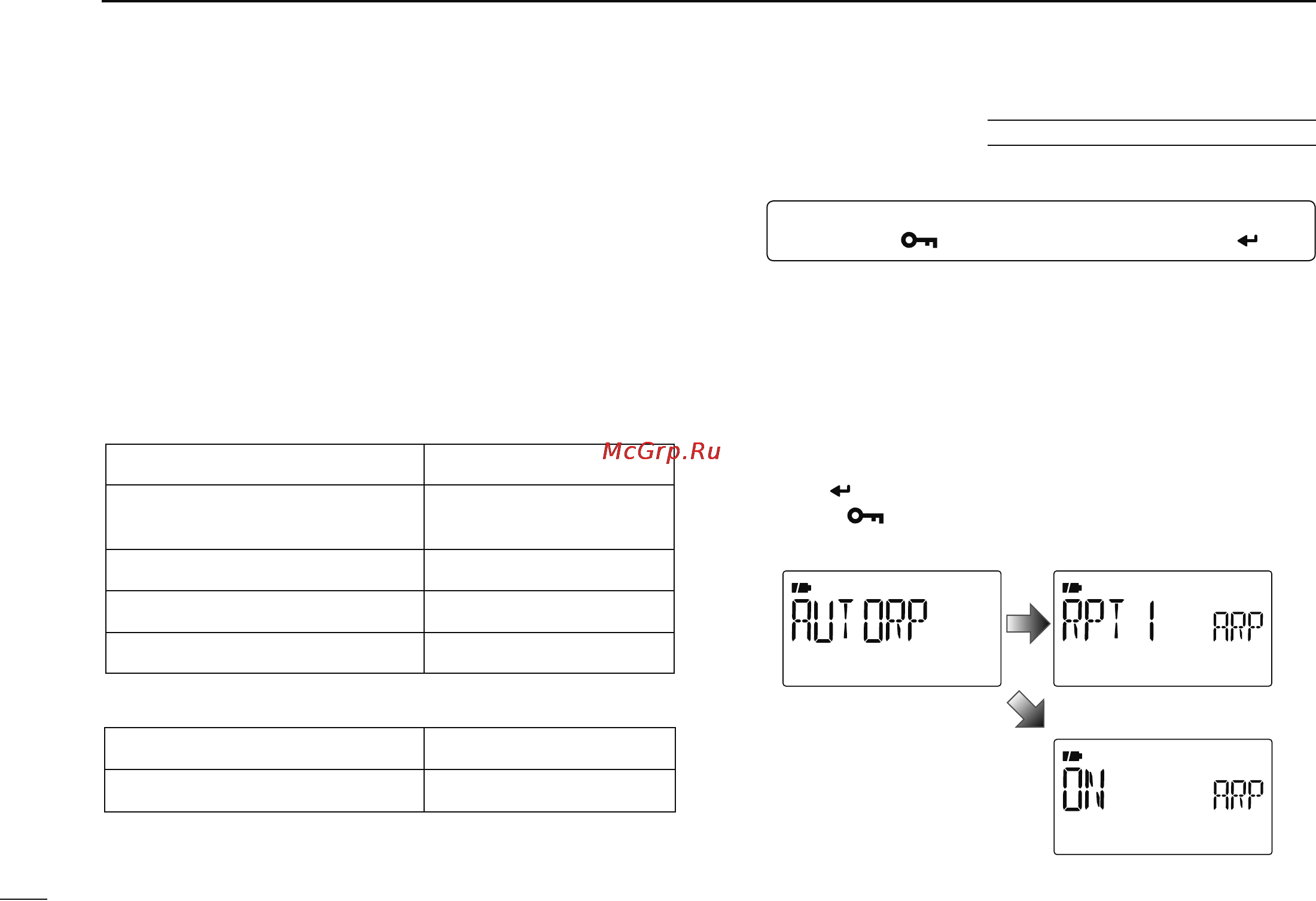

Auto repeater setting U.S.A. version
Korean version
FREQUENCY RANGE SHIFT DIRECTION
147.000–147.395 MHz “DUP” appears
442.000–444.995 MHz “DUP” appears
447.000–449.995 MHz “DUP–” appears
145.200–145.495 MHz
146.610–146.995 MHz
“DUP–” appears
U.S.A./KOREAN versions only
