DV MODE PROGRAMMING
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
Duplex direction setting (DUP)
This content appears when R1 USE is selected YES.

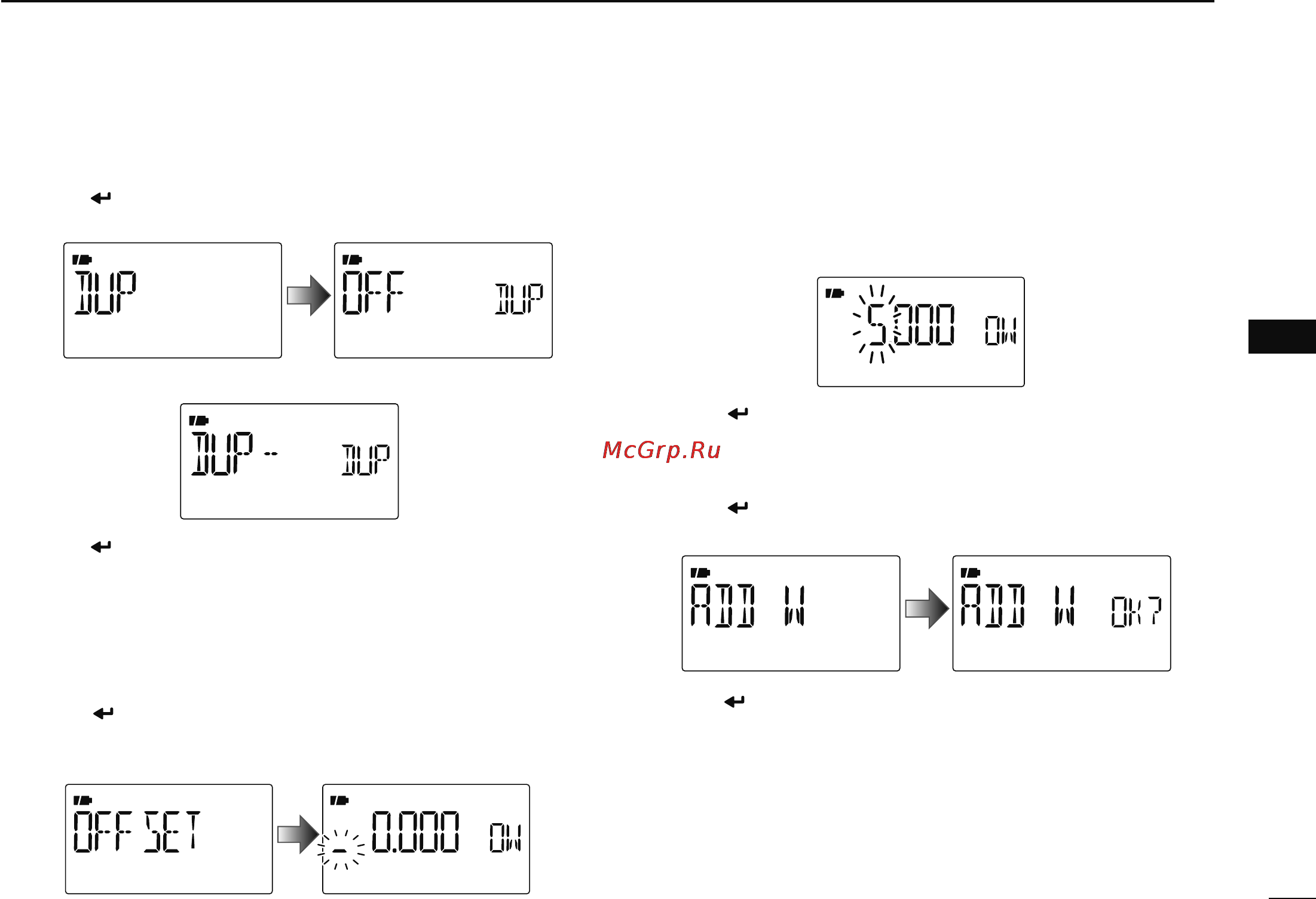

@4 Push [ ](5) to enter the duplex direction setting state.
• Duplex direction setting screen is displayed.
@5 Push [](2) or [](8) to select the duplex direction.
@6 Push [ ](5) to set the duplex direction and exit the state.
@7 Push [](2) or [](8) to select the next content (offset
frequency programming).
Offset frequency programming (OFF SET)
This content appears when R1 USE is selected YES.
@8 Push [ ](5) to enter the offset frequency programming
state.
• Offset frequency programming screen is displayed.
@9 Push [](2) or [](8) to select the offset frequency.
• The selected number blinks.
• Push [](6) to move the cursor right; push [](4) to move the
cursor left.
• Push and hold [CLR](1) for 1 sec. to clear the displayed fre-
quency.
#0 Push [ ](5) to set the offset frequency and exit the state.
Storing the repeater list (ADD W)
#1 Push [](2) or [](8) to select the store operation.
#2 Push [
](5) to enter storing state.
• “ADD W OK?” appears.
#3 Push [ ](5) again to store the list.
