MENU SCREEN OPERATION
N MENU screen indication and arrangement

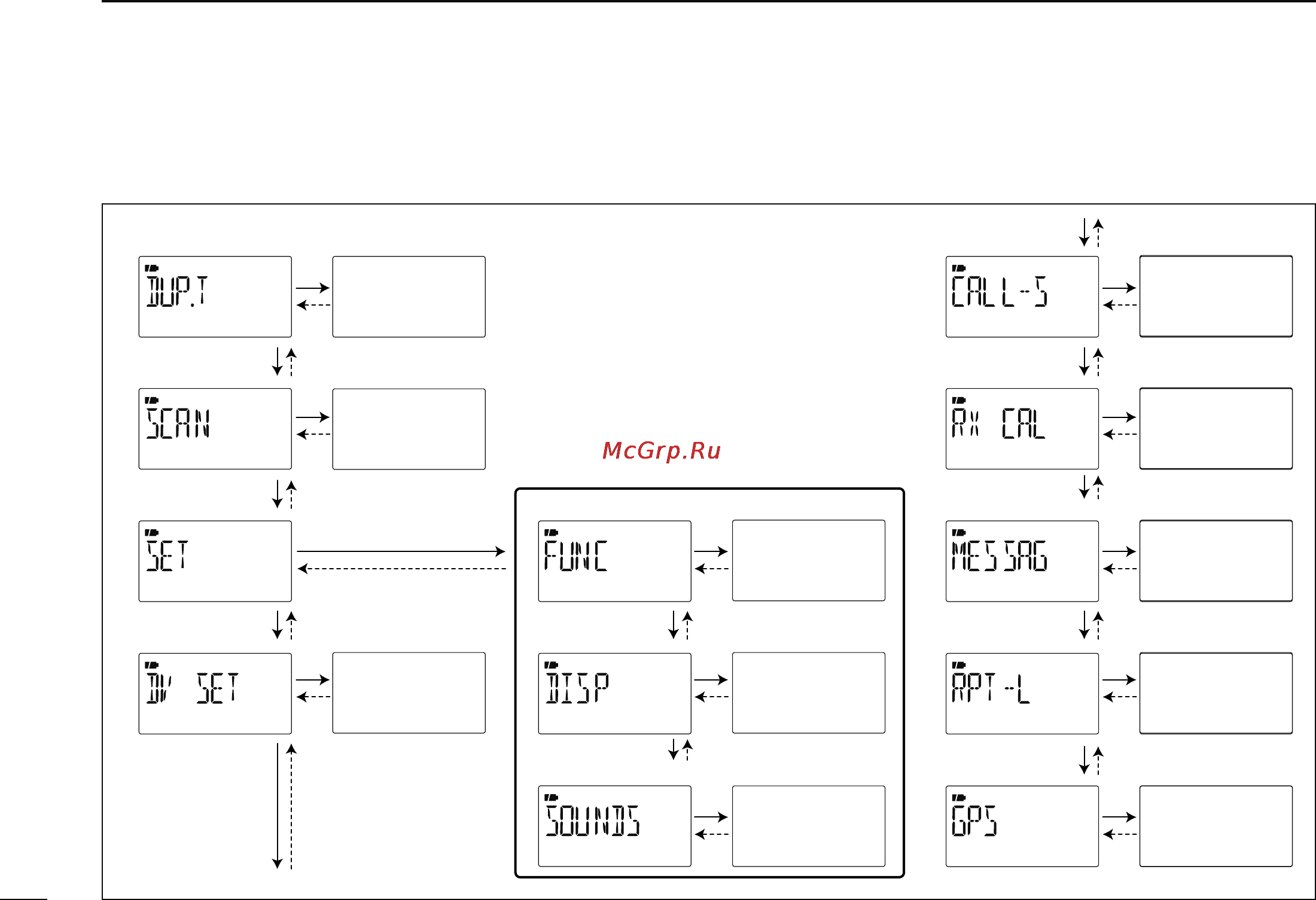

MENU screen shows one of the following indication.
• DUP.T mode
Independent
items
(see p. 119)
• SCAN mode
• SET mode
• DV SET mode
• CALL-S mode
• RX CAL mode
• MESSAG mode
• RPT-L mode
• GPS mode
• FUNC mode
• DISP mode
• SOUNDS mode
Independent
items
(see p. 121)
Independent
items
(see p. 132)
Independent
items
(see p. 129)
Independent
items
(see p. 124)
Independent
items
(see p. 130)
Independent
items
(see p. 39)
Independent
items
(see p. 68)
Independent
items
(see p. 136)
Independent
items
(see p. 49)
Independent
items
(see p. 36)
