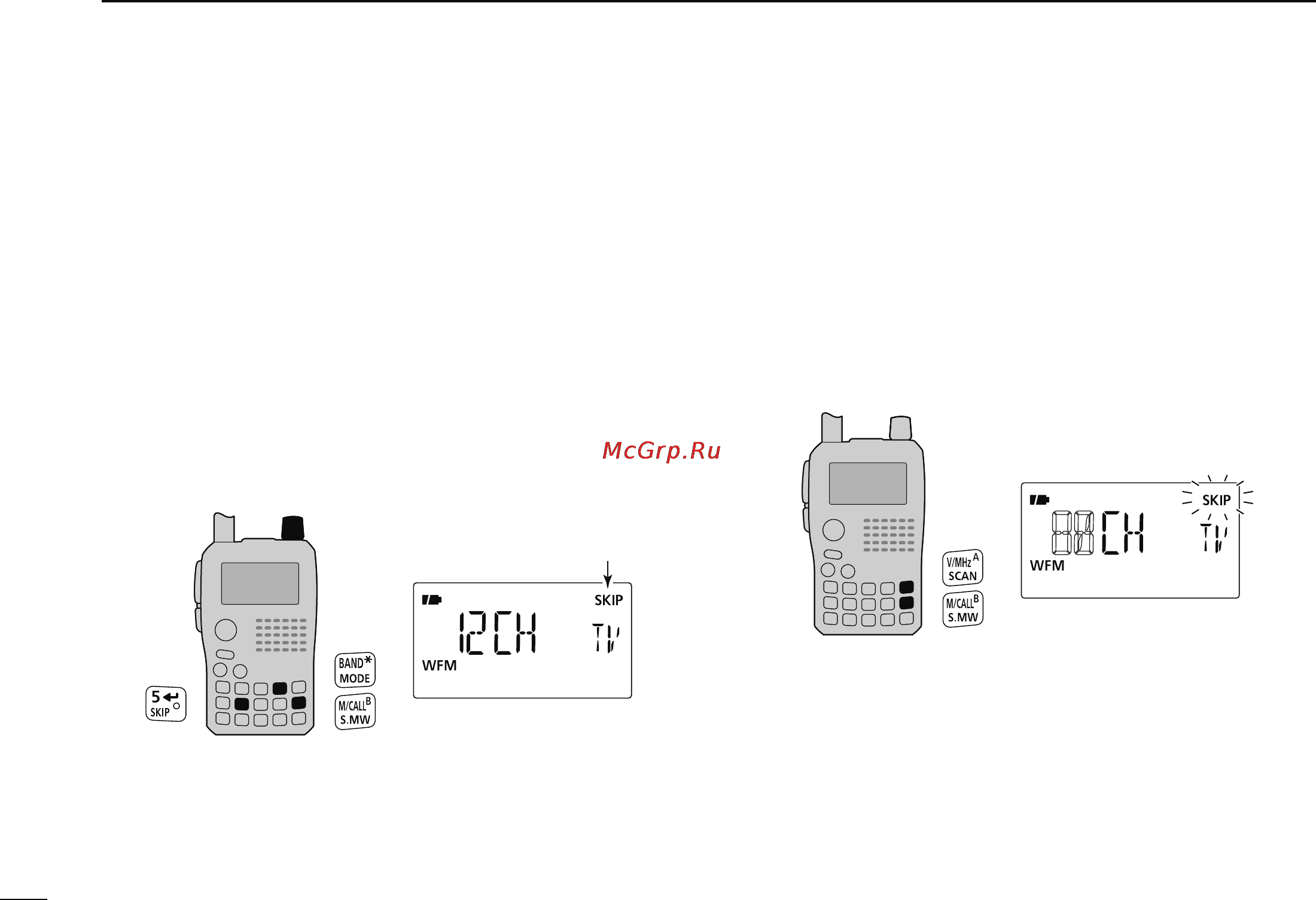

D Skip channel setting
Unwanted channels can be skipped for rapid selection, etc.
q Push [M/CALL] several times to select TV channels.
• “TV” and channel number appear.
w Rotate [DIAL] to select the channel to be skipped.
• To clear the skip setting, rotate [DIAL] while pushing and
holding [BAND] to select a skip channel.
• While pushing and holding [SKIP](5), rotating [DIAL] also
selects a skip channel.
e Push and hold [SKIP](5) for 1 sec. to toggle the skip
setting ON and OFF.
• “SKIP” appears when the channel is set as skip channel.
[DIAL]
Appears
D Automatic TV channel programming
TV channels can be programmed automatically.
q Push [M/CALL] several times to select TV channels.
• “ TV” and channel number appear.
w Push and hold
[SCAN](V/MHz) for 1 sec.
to start TV
channel programming.
• The programming will automatically stop after scanning all
channels.
28
4
BASIC OPERATION
