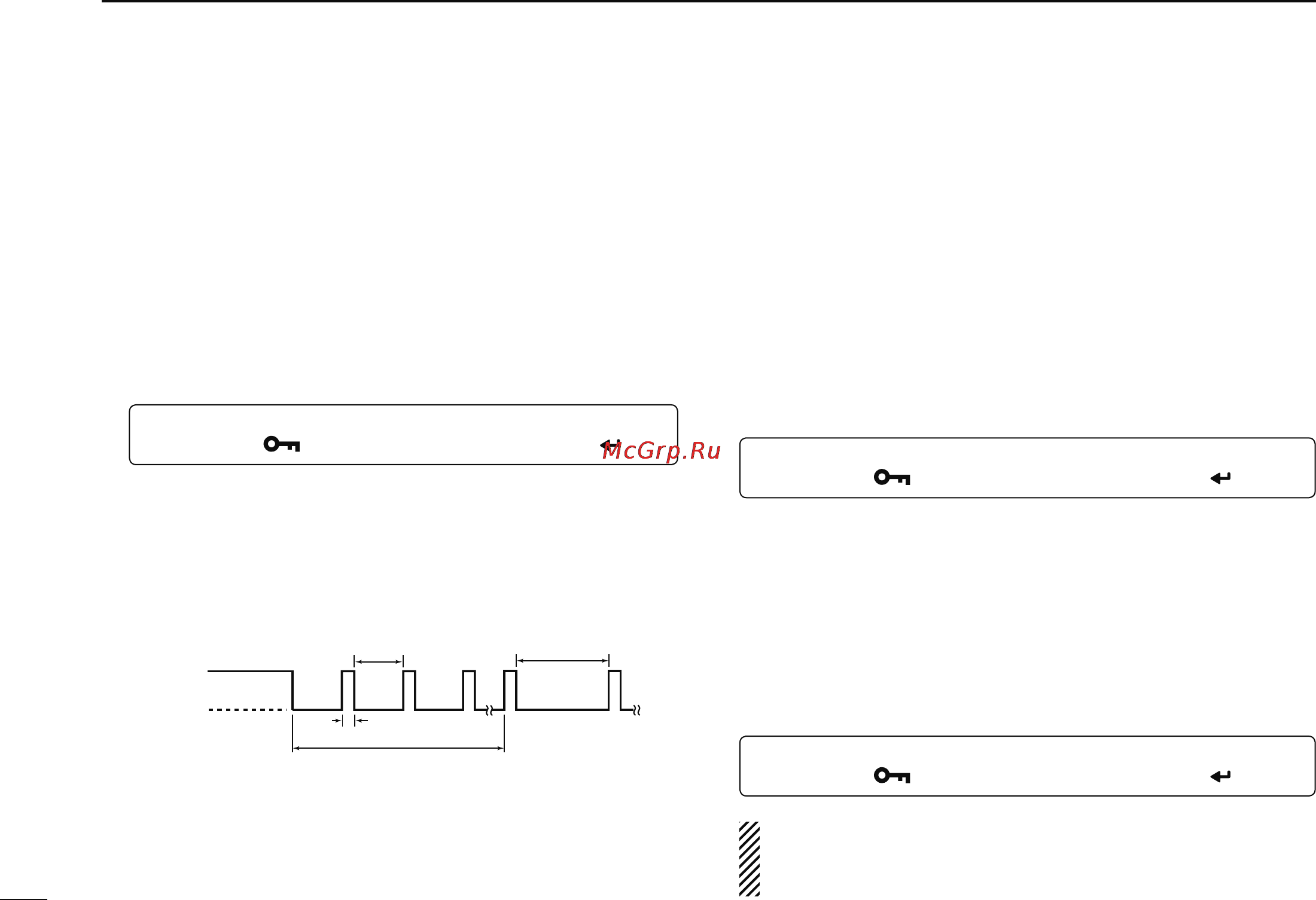

156
13
OTHER FUNCTIONS
N Power save
The power save function reduces the current drain to con-
serve battery power.
The power save duty cycle, the ratio of receive circuit on
to receive circuit off during standby, can be set to auto-
matic1
(default), 1 : 4 (150 msec. : 600msec.), 1 : 8 (150 msec. :
1200msec.), automatic2, in addition stopping the operation of
the digital block when in DV mode, or OFF with “P SAVE” in
FUNC set mode (SET).
MENU ¶ SET ¶ FUNC ¶ P SAVE
(p. 125)
(Push [MENU ]), (Push [](2)/[](8), then push [ ](5).)
• “AUTO1” selects “1:4” duty ratio when receiving no signal for 5
sec., then “1:8” 60 sec. after that.
• “AUTO2”
suppresses the consumption of the battery by stopping
the operation of the digital block when in DV mode in addition to the
operation of AUTO1.
150 msec.
60 sec.
600 msec.
1200 msec.
No signal
5 sec.
Circuit ON
Circuit OFF
N Auto power OFF
The transceiver can turn itself OFF automatically after a
specified time. Activating a control restarts the time-out. The
transceiver beeps before turning OFF.
120 min., 90 min., 60 min., 30 min. and OFF can be specified.
The specified period is retained even when the transceiver
is turned OFF by the auto power-off function. To cancel the
function, select “OFF” in the auto power-off item in set mode.
This can be selected with “AP OFF” in FUNC set mode
(SET).
MENU ¶ SET ¶ FUNC ¶ AP OFF
(p. 128)
(Push [MENU ]), (Push [](2)/[](8), then push [ ](5).)
N Auto power ON
The transceiver can be set to automatically turn ON after a
specified period. The timer can be selected within 30 min. to
24 hrs. in 30 min. steps. Once this timer turns the transceiver
power ON, the auto power-on is automatically cancelled.
This can be selected with “AP ON” in FUNC set mode (SET).
MENU ¶ SET ¶ FUNC ¶ AP ON
(p. 128)
(Push [MENU ]), (Push [](2)/[](8), then push [ ](5).)
When operating with battery pack or case and the battery
is exhausted, auto power-on does not function.
During standby, a small current still flows in the radio.
