N Digital squelch
q Set the desired operating frequency on DV mode, Digital
code and “MY” (MY CALL SIGN).
w Push and hold [DSQ](7) for 1 sec. several times to acti-
vate the digital call sign or digital code squelch.
• Digital call sign beep “DSQLS,” Digital call sign squelch
“DSQL,” Digital code beep “CSQLS,” Digital code squelch
“CSQL,” and no digital squelch operation are activated in order.
• Rotating
[DIAL] while pushing [DSQ](7) also selects the digital
squelch functions.
e Operate the transceiver in the normal way.
r When the received signal includes a matching call sign/
code, the squelch opens and the signal can be heard.
• When the received signal’s call sign/code does not match, digi-
tal call sign/digital code squelch does not open, however, the
S-indicator shows signal strength.
• To open the squelch manually, push and hold [SQL].

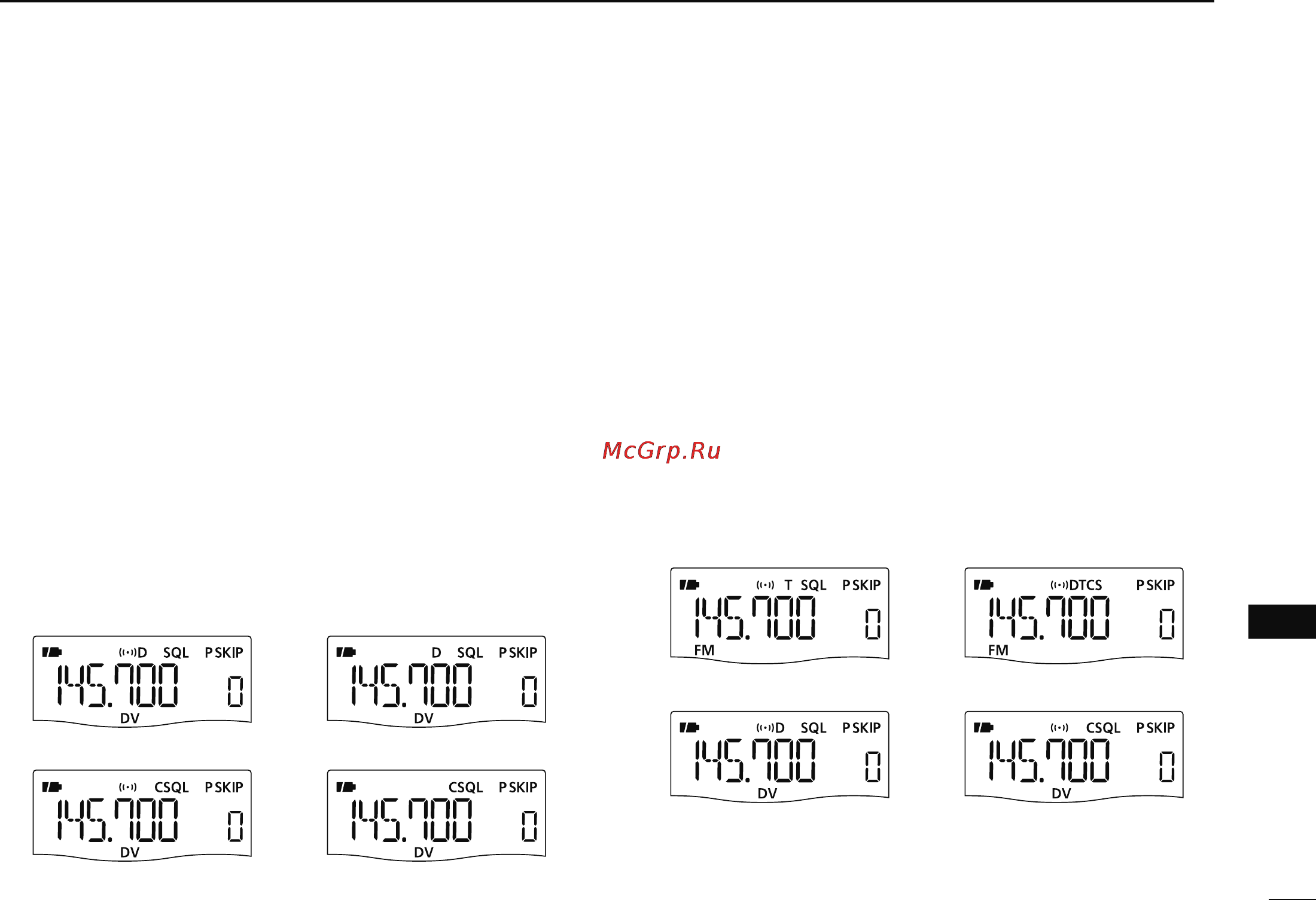

Digital call sign squelchDigital call sign pocket beep
Digital code pocket beep
Digital code squelch
N Pocket beep function
q Set the desired operating frequency.
w Set the desired CTCSS tone, DTCS code, Digital call sign
or Digital code.
e Push and hold [TONE](7) or [DSQ](7) for 1 sec. several
times to activate the pocket beep, DTCS beep, Dig-
ital call sign beep or Digital code beep. (“ST SQL,”
“SDTCS,” “SD SQL” or “SCSQL”)
• Rotating [DIAL] while pushing [TONE](7)/[DSQ](7) also selects
the tone squelch or digital squelch functions.
r When a signal with the correct tone, code, digital call sign
or digital code is received, the transceiver emits beep
tones for 30 sec. and blinks “S.”
t Push [PTT] to answer or push [SQL] to stop the beeps
and blinking.
Pocket beep
Digital call sign pocket beep Digital code pocket beep
DTCS beep
