81
8
GPS/GPS-A OPERATION
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

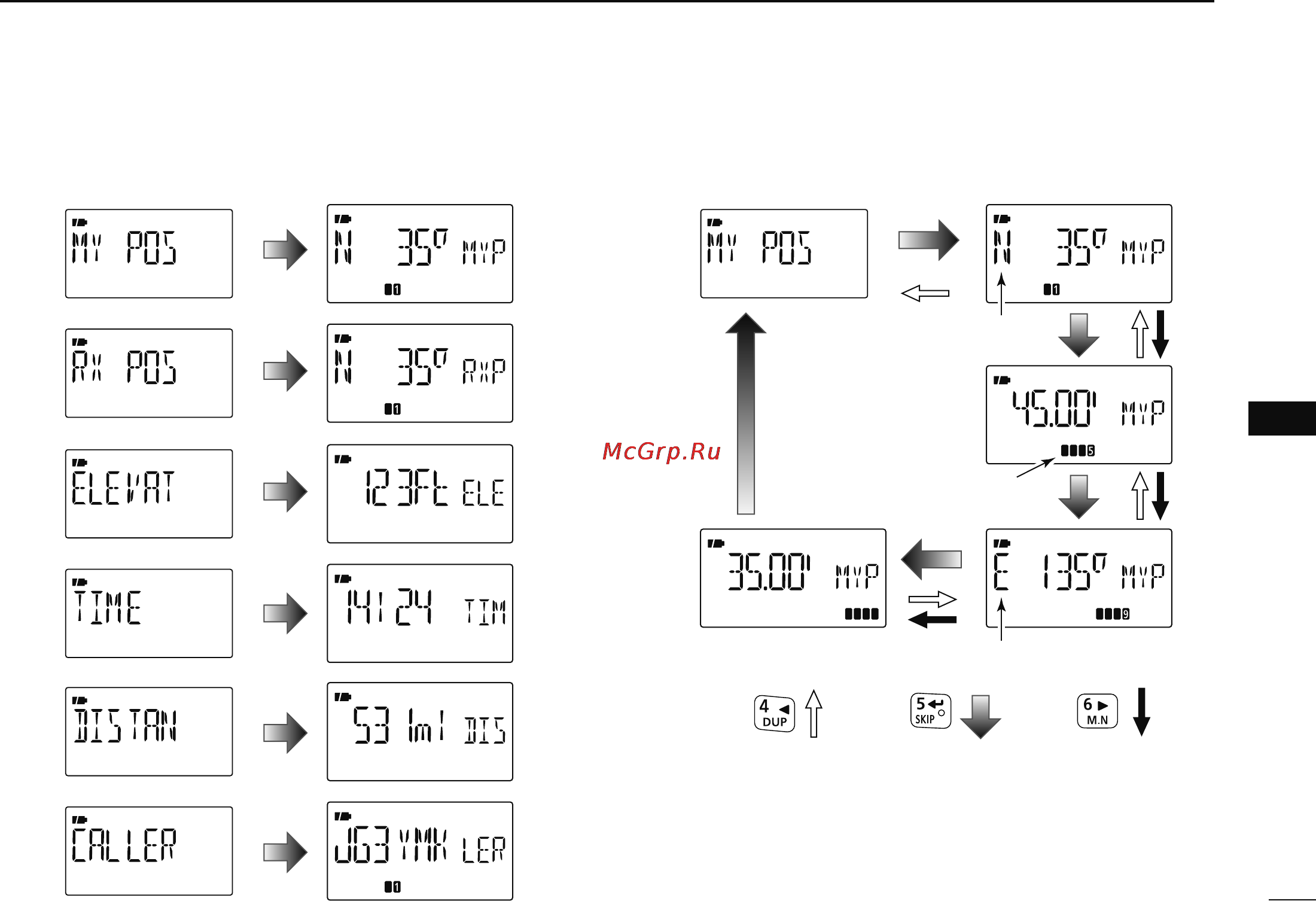

• Selectable items
My position
Received position
Elevation
Distance
Caller
Time
• Position indication
My position
My position
35°45.00’N
135°35.00’E
S/RF meter indicates
the selection
Push
Push
Push
North or South
East or West
These sample indications assume that “P FORM” is selected
“mm.mm” and “UNITS” is selected “Ft/ml.” (p. 136)
