115
12
OTHER FUNCTIONS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
y When the alert is detected, a beep sounds and the follow-
ing indication will be displayed.
u Turn the weather alert function OFF in set mode.
NOTE: While receiving a signal (on a frequency other than
the weather alert ON frequency), the receiving signal or
audio will be interrupted momentarily every 5 sec.
(approx.)
in the case that the alert function is turned ON. This symp-
tom is caused by the WX alert function. To cancel these
symptoms, set the weather alert item OFF in set mode.

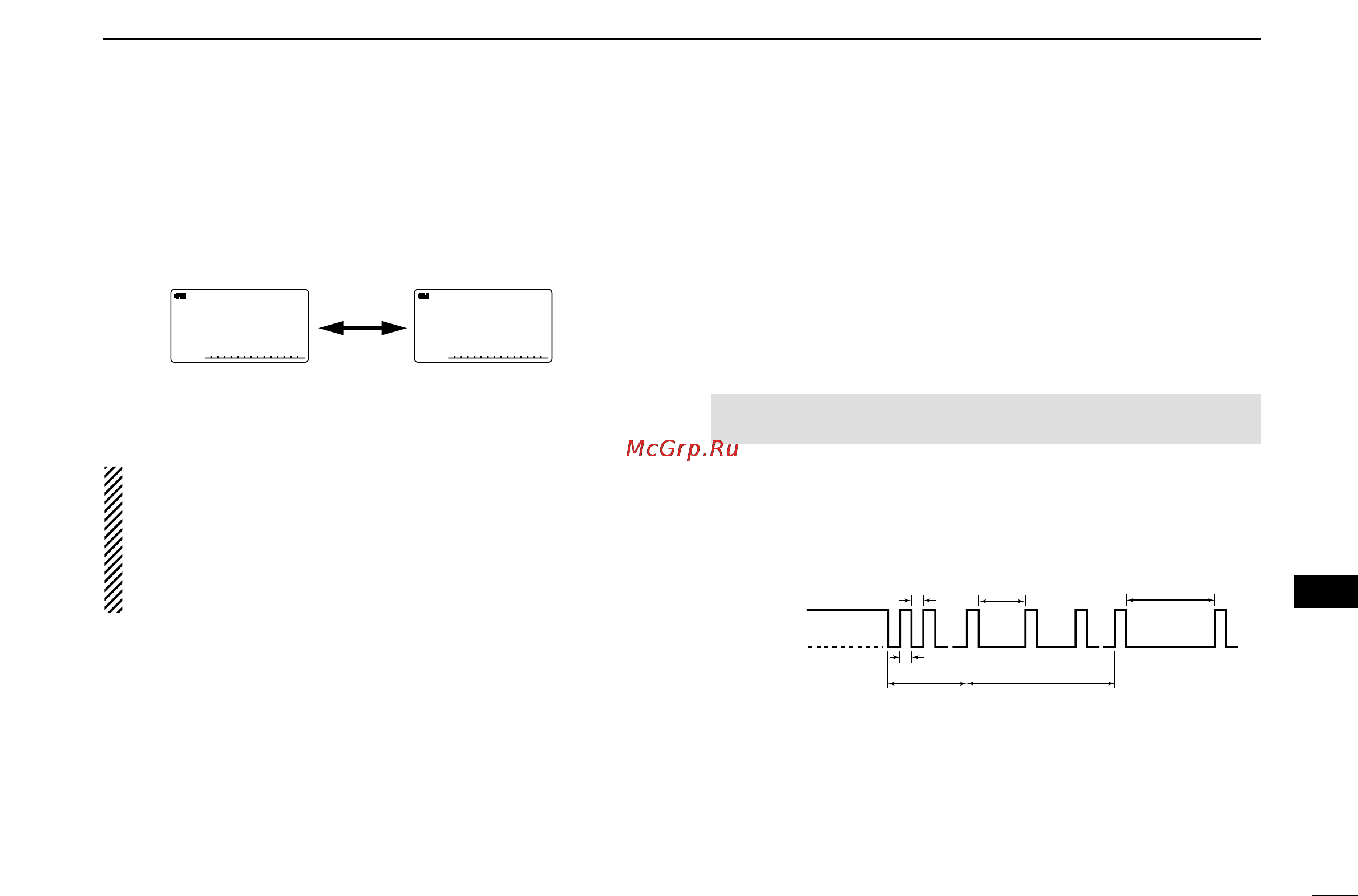

■ Power save
The power save function reduces the current drain to con-
serve battery power.
The power save duty cycle, the ratio of receive circuit on to
receive circuit off during standby, can be set to automatic
(de-
fault), 1 : 1 (150 msec. : 150msec.), 1 : 4 (150 msec. : 600msec.), 1
: 8
(150 msec. : 1200msec.) or OFF with “POWER SAVE” in set
mode.
(p. 88)
•“AUTO” selects “1:1” duty ratio when receiving no signal for 5 sec.,
then “1:4” 60 sec. after that.
The ratio becomes “1:8” when no signal
is received for another 60 sec.
150 msec.
150 msec.
60 sec.
60 sec.
600 msec.
1200 msec.
No signal
5 sec.
Circuit ON
Circuit OFF
∼
∼
∼
∼
MENU screen ➪
SET MODE
➪
POWER SAVE
(Push [MENU/LOCK]) (Rotate [DIAL]
†
, then push [ï](5)
†
.)
A
WX
1
WX
A
WX
1
WXWX
A
WX
1
ALTALT
Shows above indications alternately.
