8 MEMORY/CALL CHANNELS
■ Memory bank selection

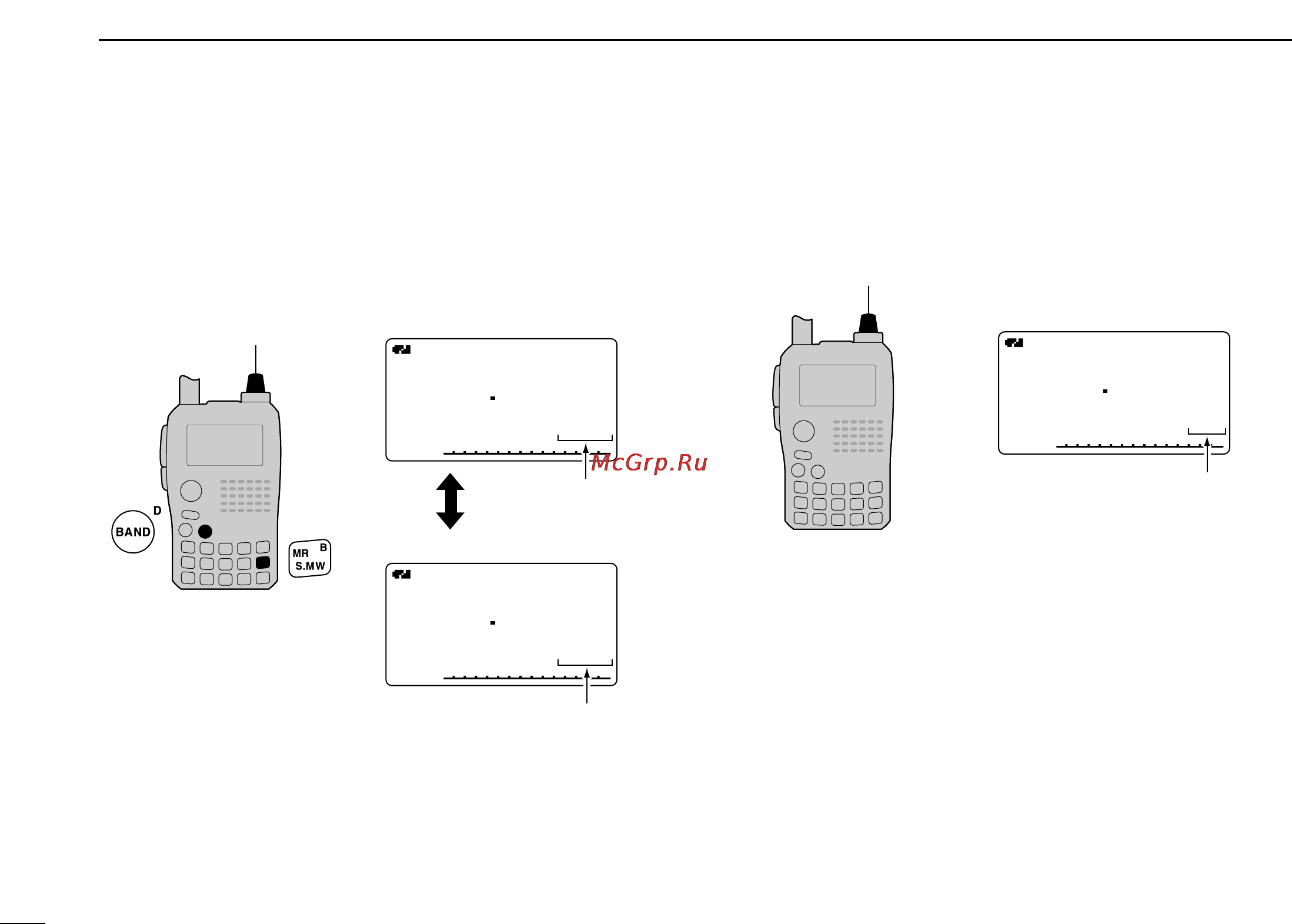

qPush [MR] several times to select memory bank mode.
wWhile pushing and holding [BAND], rotate [DIAL] to select
the desired bank (A to Z).
• Only programmed banks are displayed.
eRotate [DIAL] to select the bank channel.
• Only programmed channels are displayed.
rPush [MR] to return to regular memory condition.
A
µ
FMFM
145 620
C01C01
Memory bank mode
[DIAL]
Bank channel is selec-
ted with [DIAL].
A
µ
FMFM
145 870
011011
Memory mode
A
µ
FMFM
145 870
C05C05
Memory bank mode
Bank channel is
displayed.
Memory channel is
displayed.
[DIAL]
