15
4
FREQUENCY AND CHANNEL SETTING
4

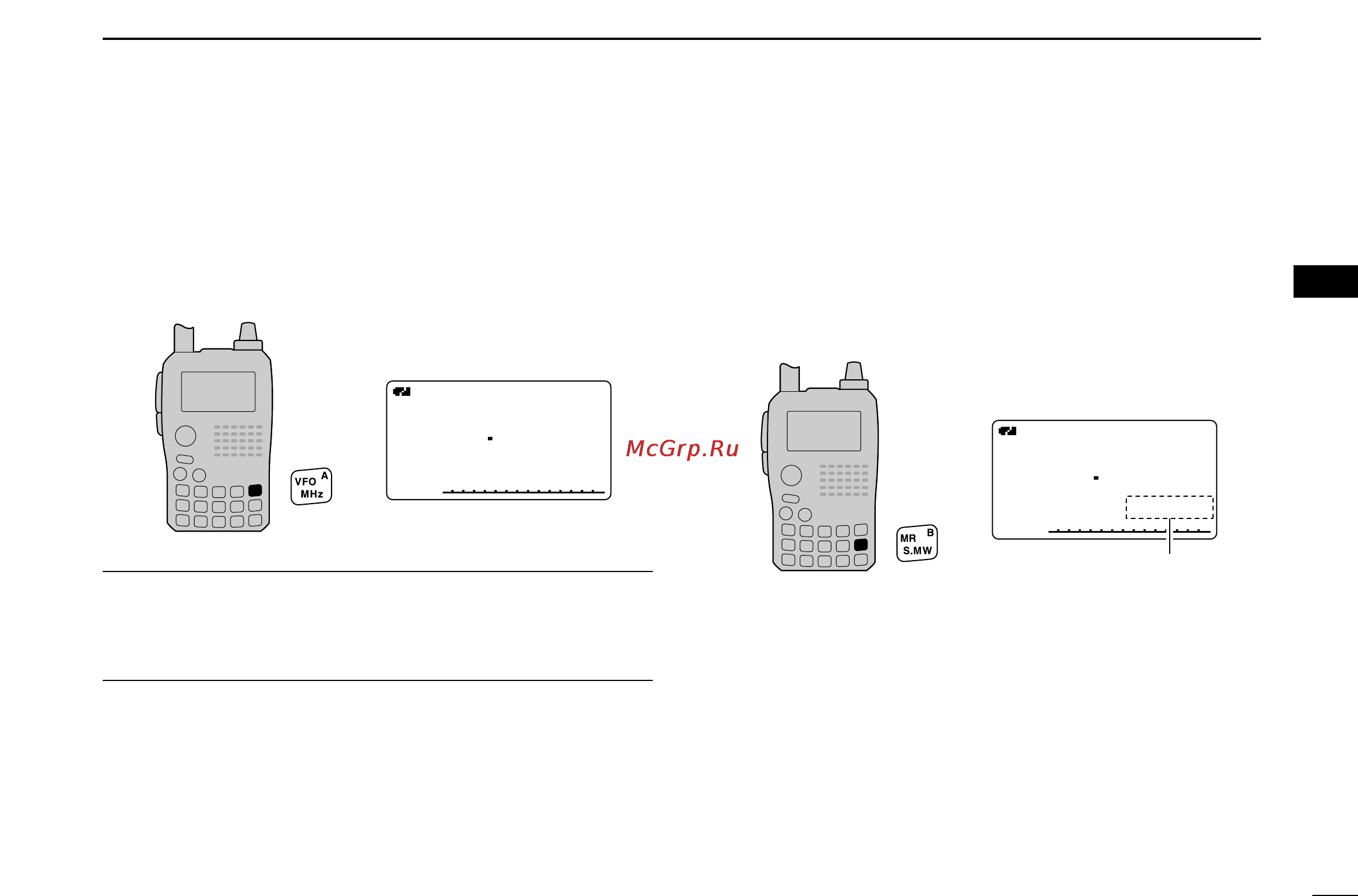

■ Mode selection
DD
VFO mode
VFO mode is used to set the desired frequency.
➥ Push [VFO] to select VFO mode.
What is VFO?
VFO is an abbreviation of Variable Frequency Oscillator. Fre-
quencies for both transmitting and receiving are generated
and controlled by the VFO.
DD
Memory mode
Memory mode is used for operation on memory channels
which store programmed frequencies.
qPush [MR] to select memory mode.
•“
µµ
” appears when memory mode is selected.
wRotate [DIAL] to select the desired memory channel.
• Only programmed memory channels can be selected.
• Enter the memory channel directly to select the desired memory
channel. (p. 64)
• See p. 66 for memory programming details.
A
MemoName
µ
PRIOPRIO WXWX EMREMR
DTCSDTCS
FMFM
LOWLOW
ATTATT
146 010
P SKIP
+DUP+DUP
25
000000
• Memory mode indication
Appear
A
MemoNameMemoName
µ
PRIOPRIO WXWX EMREMR
DTCSDTCS
FMFM
LOWLOW
ATTATT
146 010
P SKIP
+DUP+DUP
25
000000
• VFO mode indication
