Icom IC-91A [26/131] Basic operation

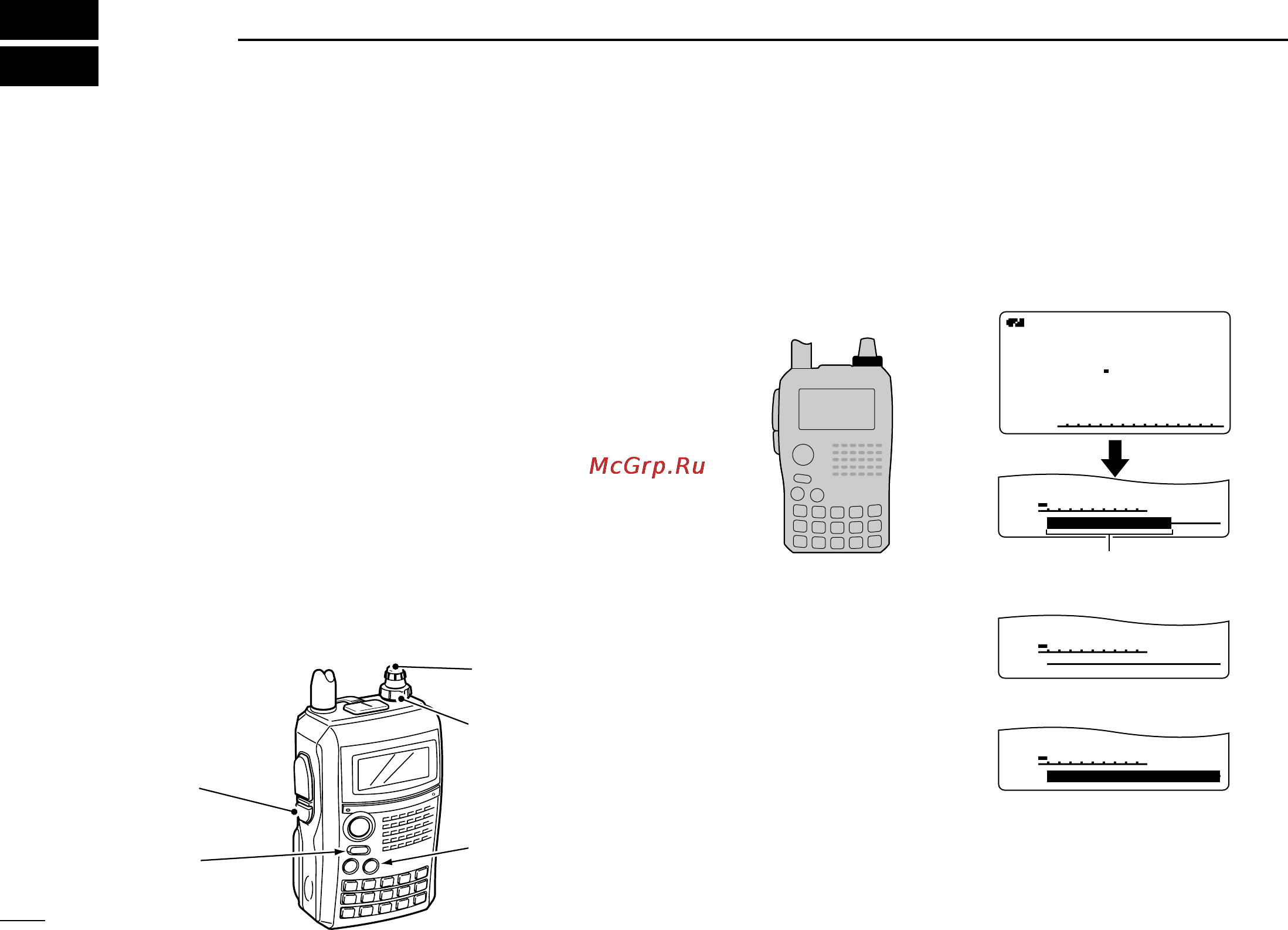

![Icom IC-91A [26/131] Basic operation](/views2/1074080/page26/bg1a.png)
20
BASIC OPERATION
5
■ Receiving
Make sure charged battery pack (BP-217) or brand new al-
kaline batteries (BP-216) are installed (pgs. 1, 12).
qPush and hold [PWR] for 1 sec. to turn power ON.
wRotate [VOL] to set the desired audio level.
• The frequency display shows the volume level while setting. See
the section at right for details.
eSet the receiving frequency. (p. 18)
rSet the squelch level. (p. 21)
• While pushing and holding [SQL], rotate [DIAL].
• The first click of [DIAL] indicates the current squelch level.
•“LEVEL 1” is loose squelch (for weak signals) and “LEVEL 9” is
tight squelch (for strong signals).
•“AUTO” indicates automatic level adjustment by a noise pulse
counting system.
• Push and hold [SQL] to open the squelch manually.
tWhen a signal is received:
• Squelch opens and audio is output.
• The S/RF-meter shows the relative signal strength level.
■ Setting audio volume
➥ Rotate [VOL]
to adjust the audio level.
• If squelch is closed, push and hold [SQL] to verify the audio
level.
• The display shows the volume level while setting.
µ
000000
VOLVOL
µ
000000
VOLVOL
µ
000000
VOLVOL
A
MemoName
µ
PRIOPRIO WXWX EMREMR
DTCSDTCS
FMFM
LOWLOW
ATTATT
146 010
P SKIP
P SKIP
P SKIP
P SKIP
+DUP+DUP
25
000000
Minimum setting
(no audio)
Volume level indicator
Maximum setting
[VOL]
q [PWR]
e Set frequency
r Set squelch level
w Set audio level
e Select band
r Push for setting
the squelch
(Push to monitor)
