9 SCAN OPERATION
tPush and hold [S.MW](MR) for 1 sec. to store the skip con-
dition into the memory.
•“SKIP” or “P SKIP” indicator appears, according to the skip se-
lection in the step r.
✔
CONVENIENT!
The the skip setting can be set with the following operation.
qSelect the desired memory channel to be set as a skip
channel/frequency.
w
While pushing [SKIP](5), rotate [DIAL] to select the skip con-
dition from “P SKIP,” “SKIP” and “OFF (no indication).”
✔
CONVENIENT!
During VFO scanning, such as programmed scan, the skip
setting can be programmed into the highest blank memory
channel which is automatically selected with the following op-
eration.
qStart the VFO scan.
➥ Push
[VFO] to select VFO mode.
• Select the desired frequency band with [BAND], if desired.
➥ Set the squelch level.
➥ While pushing and holding [SCAN](2), rotate [DIAL] to
select the desired scanning type.
•“ALL” for full scan; “BAND” for band scan, “PROG-xx (or scan
name if programmed)” for programmed scan (xx= 0 to 24;
programmed scan edges numbers are only displayed), “DUP”
for duplex scan.
➥ To start the scan, release [SCAN](2).
• Scan pauses when a signal is received.
• Rotate [DIAL] to change the scanning direction, or resumes
manually.
wWhen scan pauses and you want to set the paused fre-
quency as a skip frequency.
➥ Push and hold [SKIP](5) for 1 sec. to store the paused
frequency into the highest blank memory channel.
• While pushing and holding [SKIP](5), rotate [DIAL] to select a
skip condition from “SKIP,” “P SKIP” and “OFF.”
• While pushing and holding [SKIP](5), scan pauses; and after
writing the frequency, scan resumes.

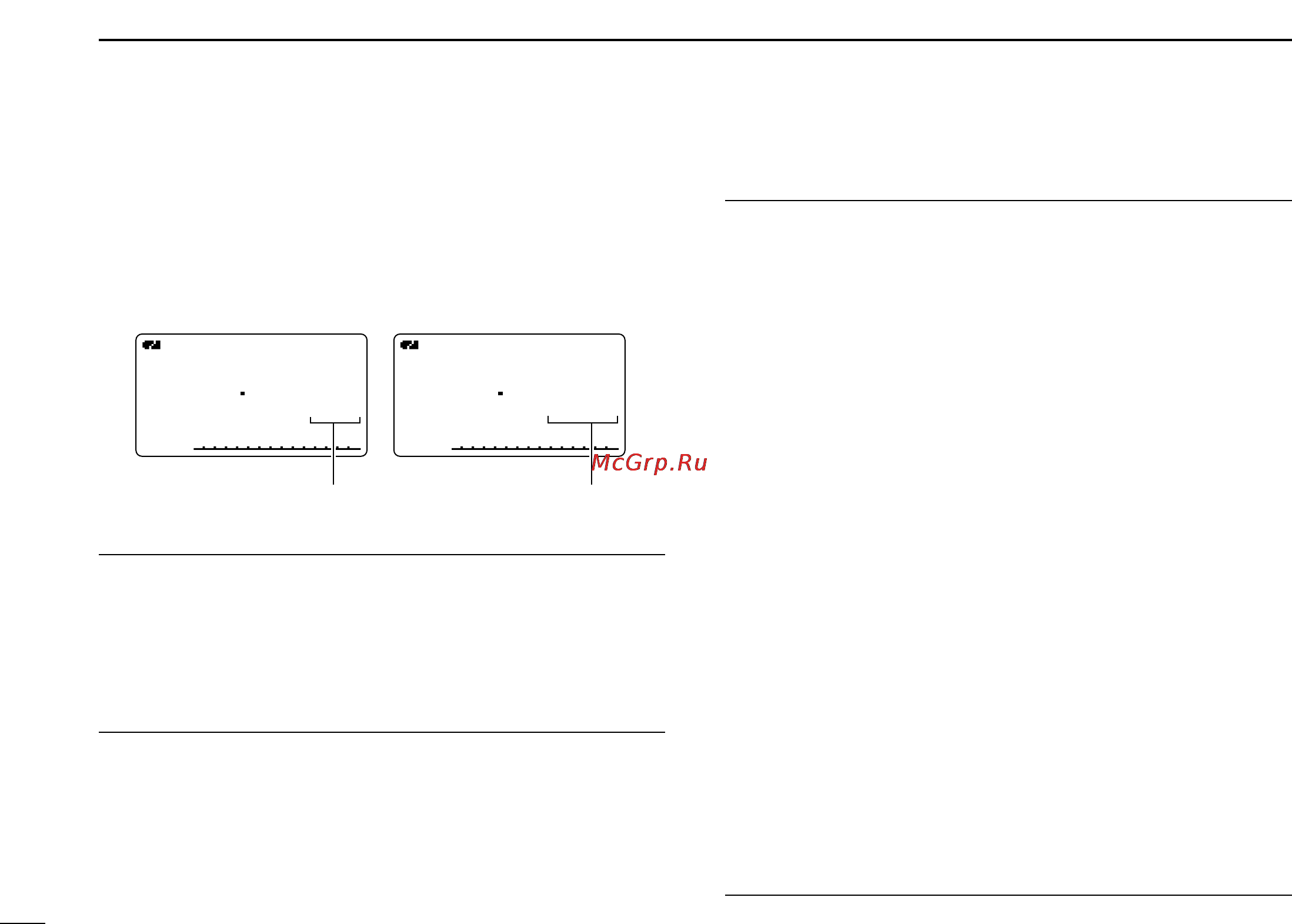

FMFM
A
µ
SKIPSKIP
033033
145 700
FMFM
A
µ
P SKIPSKIP
033033
145 700
• Skip channel setting
• Program skip setting
“SKIP” appears
“P SKIP” appears
