ACCESSORY ATTACHMENT
1

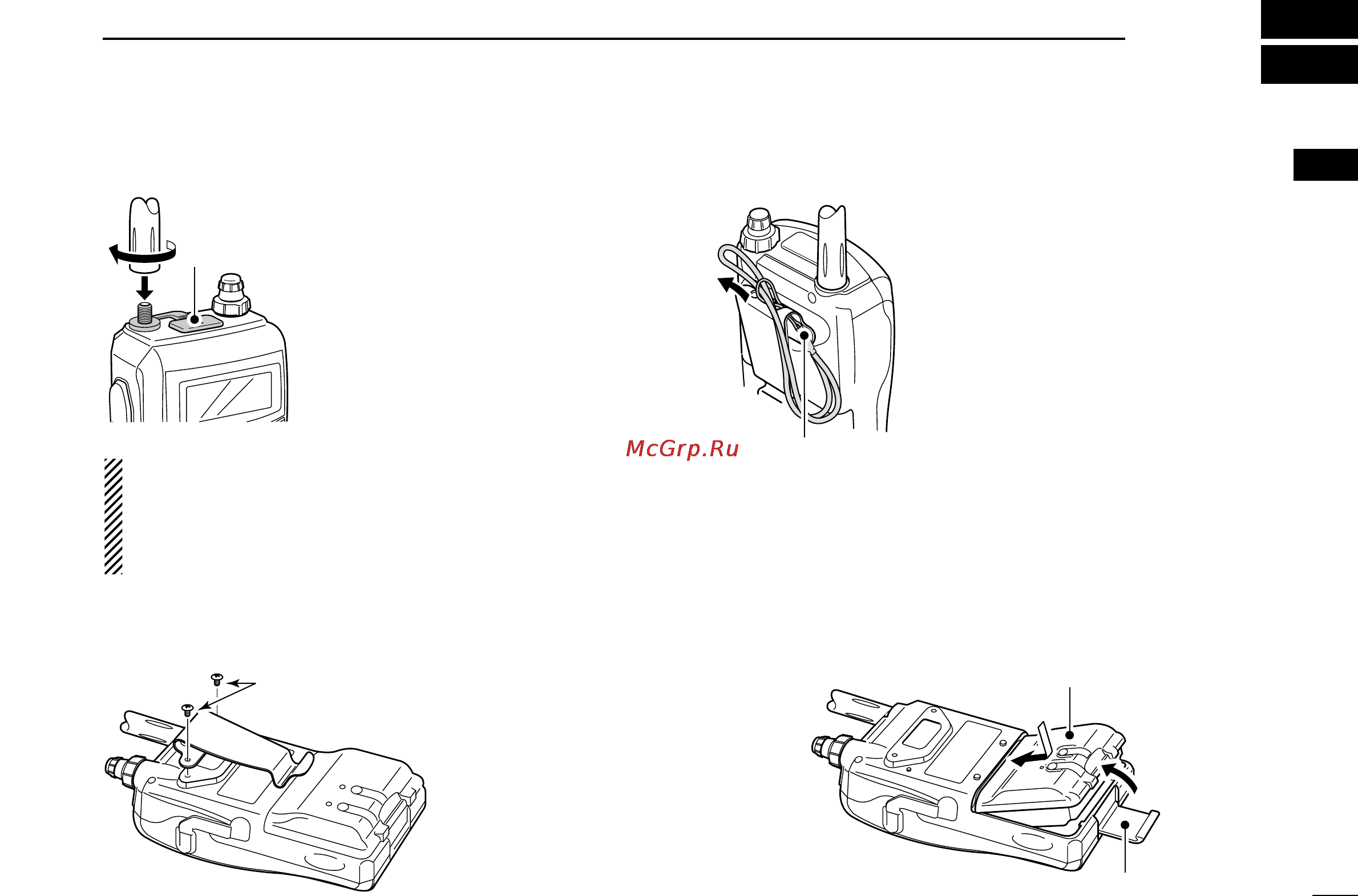

■ Antenna
Insert the supplied antenna into the
antenna connector and screw down
the antenna as shown at left.
NEVER carry the transceiver by hold-
ing the antenna.
KEEP the jack cover attached when
jack is not in use to protect the con-
nector from dust and moisture.
✔
For your information
Third-party antennas may increase transceiver perfor-
mance. An optional AD-92SMA
ANTENNA CONNECTOR
ADAPTER
is available to connect an antenna with a BNC
connector.
■ Belt clip
■ Handstrap
Slide the handstrap through the loop
on the top of the belt clip as illustrated
at left to facilitate carrying the
transceiver.
■ Battery pack
Attach the Li-Ion battery pack (BP-217) or battery case (BP-
216) as illustrated below.
• Charge the Li-Ion battery pack before use. (pgs. 10, 11)
Battery pack/
Battery case
Latch
q
w
Handstrap
Supplied screws*
*NOTE:
USE the supplied screws
only. Using screws lon-
ger than specified could
damage the transceiver.
Jack cover
