9 SCAN OPERATION
■ Scan edges programming
Scan edges can be programmed in the same manner as
memory channels. Scan edges are programmed into scan
edges, 00A/00B to 24A/24B, in memory channels.
qPush [VFO] to select VFO mode.
wSet the desired frequency:
➥ Select the desired band with [BAND].
➥ Set the desired frequency with [DIAL].
➥ Set other data
(e.g. offset frequency, duplex direction, tone
squelch, etc.), if desired.
ePush and hold [S.MW](MR) for 1 sec. to enter the select
memory write mode.
• 1 short and 1 long beeps sound.
•“
µµ
” indicator blinks.
rRotate [DIAL] to select the desired programmed scan
edge channel from 00A to 24A.
tPush and hold [S.MW](MR) for 1 sec.
• 3 beeps sound.
• The other scan edge channel “B,” 00B to 24B, is automatically
selected when continuing to push [S.MW](MR) after program-
ming.
yTo program a frequency for the other pair of scan edges,
00B to 24B, repeat steps w and r.
• If the same frequency is programmed into a pair of scan edges,
programmed scan will not function.
[DIAL]

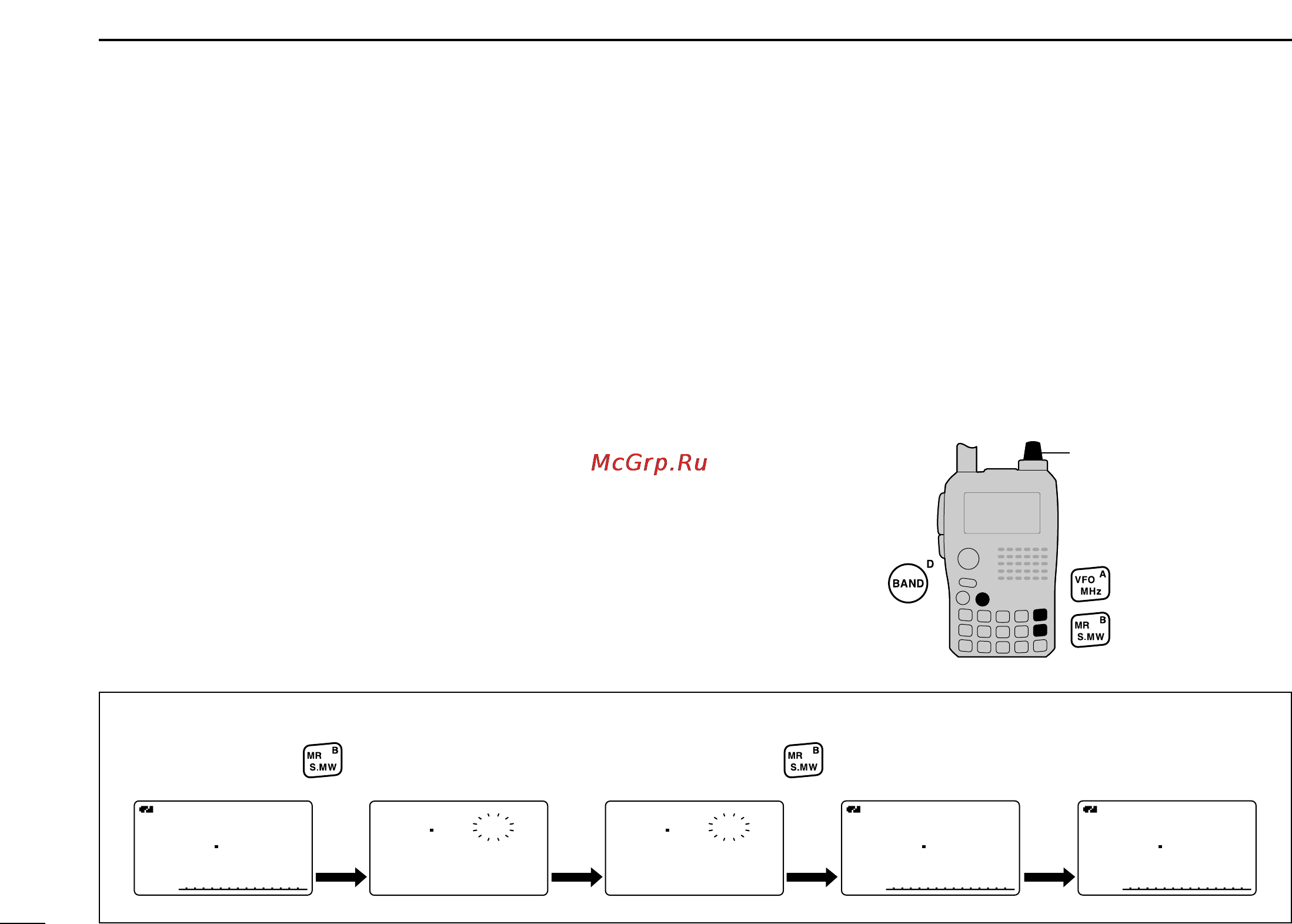

[EXAMPLE]: Programming 145.300 MHz into scan edges 03A.
A
FMFM
145 300
P SKIPSKIP
A
FMFM
145 300
P SKIPSKIP
03A
A
FMFM
145 300
P SKIPSKIP
146 010
BANKBANK :----:----
MNAME:MNAME:
SKIPSKIP :OFF:OFF
FMFM
r
µ
001
BANKBANK :----:----
MNAME:MNAME:
SNAME:SNAME:
FMFM
r
µ
03A
Push for 1 sec.
Rotate [DIAL]
Push for 1 sec.
